5% discount for electric mini excavator 1 ton mini-excavator for sale

Name: 5% discount for electric mini excavator 1 ton mini-excavator for sale
Brand: nuoman
Price: USD $4,200 - 4,382 / Set

FOB Price

USD $4,200 - $4,382 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	nuoman	Place of Origin:	Shandong, China	Certification:	CE ISO
Condition:	New	Moving Type:	Crawler Excavator
Rated Speed:	5.5km/h	Max Digging Radius:	2400mm	Maximum Digging Depth:	1400mm
Maximum Digging Height:	2490mm	Bucket capacity:	0.02m3	Operating Weight:	900kg

Product Description

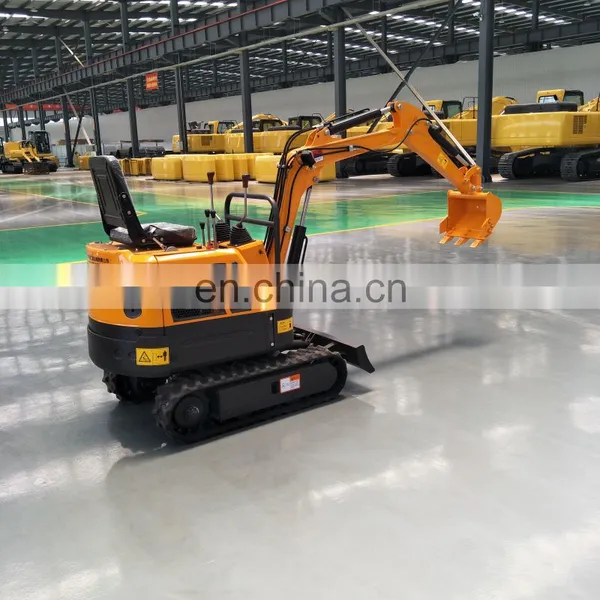

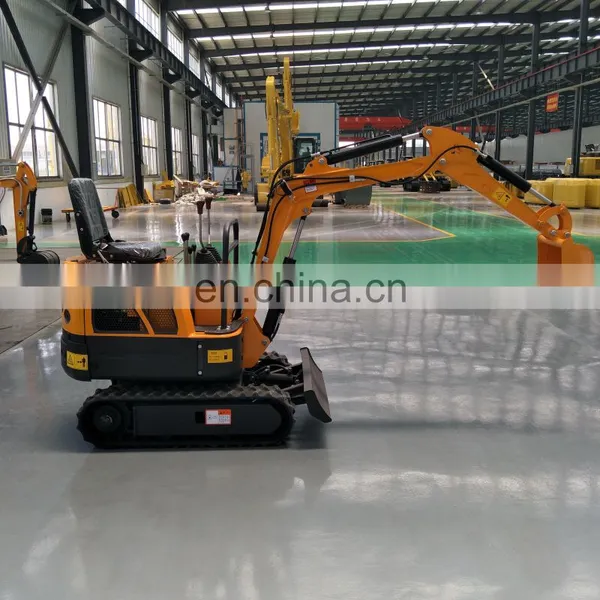

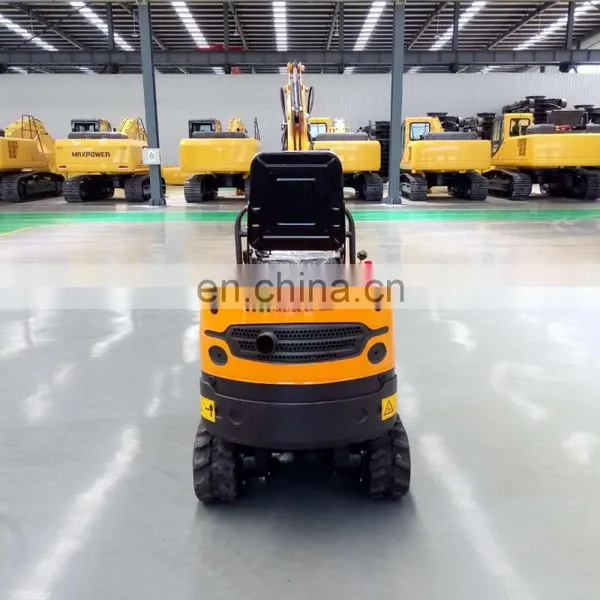

Mini hydraulic excavator

NM-E10

model	NM-E10
Vehicle weight	900kg	Maximum ground mining radius	2400mm
Standard shovel capacity	0.025-0.045m³	Swing(optinal)	75° left / 45° right
Working device form	Backhoe	Pumps	Gear pump
Rated power	8.6kw	System relief pressure-Standard	16.5MPa
Wheelbase	770mm	track width	180mm
Caterpillar chief	1090mm	Minimum radius of revolution	1190mm
Platform clearance	380mm	Maximum lift height of earth shovel	325mm
Platform end radius of gyration	733mm	Maximum digging depth of earth shovel	175mm
Emgine Model	KP-192F	Horsepower (net)	8.6kw @ 3600rpm
Cooling	water-cooling	Fuel injection	direct

Compact Dimensions

Easy site access

Compact Dimensions

With an overall width of only 950mm
(3 ft 12in) the NM-E10 can easily
drive through narrow passages and
doors. Both indoor and outdoor jobs
are now accessible with the under
1000 kg (2,205 lb) weight making easy
trailer transportation between sites
possible.

Extending Undercarriage and Blade

An extending undercarriage and fold
out dozer blade allow the machine to
be configured for excellent working
stability and optimum performance.
Easy retraction, controlled from the
operator’s seat, enables the machine
to pass through narrow openings.

Counterweight, safe operation

The counterweight is to balance the torque, so that the center of gravity of the excavator is always kept near the center of rotation, and the overall balance is maintained, which is more stable and safe during using hamer

Main Features

The NM-E10 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

1.    Engine: KOOP-192 engine, single-cylinder air cooled, 12HP, 8.6KW
2.    Hydraulic pump (gear pump) is easy to maintain, long life
3.    Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets

you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean

up.

4. Multiple valves under the operating handle,The benefit of less effort and improved control

is in your hands!
5. Rubber track no damage to cement, tile floor
6. Diesel level gauge: Check engine oil when it is not easy to start

Detailed Images

Powerful Engine and Hydraulics

The 8.6 kW (12hp) KOOP engine and perfectly matched hydraulics(Eaton) provide efficient, economical and reliable performance for
the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful
hammer,auger and log grab. Low noise and vibration levels deliver comfortable operation

Eaton hydraulic system

One multi-way valve, eight-way valve to ensure the machine's hydraulic work is stable and efficient，like the tilting
bucket/auger/breaker/thumb bucket and totator bucket.

Beautiful appearances and hydraulic meter

The latest mold shape creates a perfect appearance, pay attention to the working state of the machine in time through the
hydraulic oil meter.

Your safety is our top priority. The Nuoman mini excavator is designed to
help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.

EASY TO OPERATE

Controls are easy to use and operate,with the .The operating instructions in front of the console are simple and easy to use

Hydraulic oil radiator

Standard configuration, different from the others, the machine work is more durable

^{Latest model NM-E10}

Production line& Operating Instructions book,professional and reliable.

Video conference available if you prefer!!!

Optional Attachments
