WDW-5 5KN Computer Control Electronic Paper Peel Strength Universal Testing Machine
- 300 Set / Sets per Month
- QINGDAO
- T/T Credit Card
You May Like
-
30TON Computer Control Material Tensile Tester, Universal Testing Machine 300kn
-
New !!! WDS Digital Display Electronic Universal Testing Machine Price / Portable Tensile Test Machine
-
WDW- 20KN 50KN 100KN Computer Controlled Electronic Universal Tensile Testing Machine
-
WDS-5 5KN Digital Display Electronic Universal Tensile Compression Pull Force Testing Equipment
-
WDW-10 Wire Rope Electronic Universal Tensile Test Machine/ Load Measuring Instruments
-
WDW Computer Control Electronic Universal Tensile Testing Machine
Product Details
Brand Name | HST | Place of Origin | China | |
Model Number | WDW-5 | Power | Electronic |
Product Description
WDW-5 5KN Computer Control Electronic Paper Peel Strength Universal Testing Machine
Contact: Skype:hstbetty009 Tel: +86-531-82351201 Fax: +86-531-86113759
1. Application:
WDW series computerized electronic universal testing machines are designed and manufacture
according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Main Specifications:
Model | WDW-10 | WDW-20 | WDW-30 | WDW-50 | WDW-100 | WDW-200 | WDW-300 | WDW-500 | WDW-600 | |||
Max. Load | 10kN 1000kgf | 20kN 2000kgf | 30kN 3000kgf | 50kN 5000kg | 100kN 10000kgf | 200kN 20000kgf | 300kN 30000kgf | 500kN 50000kgf | 600kN 60000kgf | |||
Load accuracy | ≤±1% | |||||||||||
Load range | 2%-100% of full scale | |||||||||||
Load resolution | 1/200000 of full scale | 1/500000 of full scale | ||||||||||
Disp. resolution | 0.01mm | |||||||||||
Test speed | 0.05-500mm/min | 0.05-300mm/min | 0.01-200mm/min | |||||||||
Tensile space | 750mm | 650mm | 650mm|25.6in | 600mm|21.6in | ||||||||
Comp. space | 750mm | 650mm | 650mm|25.6in | 600mm|21.6in | ||||||||
test width | 375mm | 400mm | 420mm | 600mm | 570mm | |||||||
Dimension | 730×430×1700mm | 755×480×1780mm | 825×600×1950mm | 1110×750×2560mm | 1110×780×2600mm | |||||||
Power supply | 220V, 1ph, 0.5kW | 220V, 1ph, 0.75kW | 220V, 1ph, 1kW | 380V, 3ph, 3KW | 380V, 3ph, 4KW | |||||||
Weight (kg) | 250kg | 280kg | 350kg | 1500kg | 2000kg |
Universal TensileTesting Machine Feature:
3.1 Main Unit:

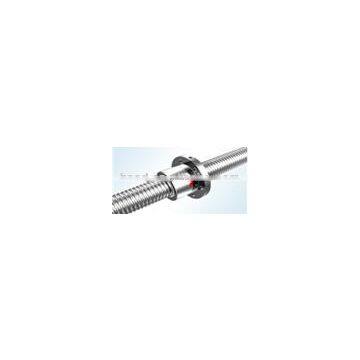

This machine adopt double space structure, the upper space used for tensile test, the lower space used for compression and bending test. The beam moving speed is stepless adjust. The drive system consist of servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency, low noise, no pollution.
3.2 Electrical measurement and control system
3.2.1 With protect function of overload,over current, over voltage, displacement limit, emergency stop, etc .
3.2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3.2.3 When finished testing, automatic stop.
3.2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one
3.2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
