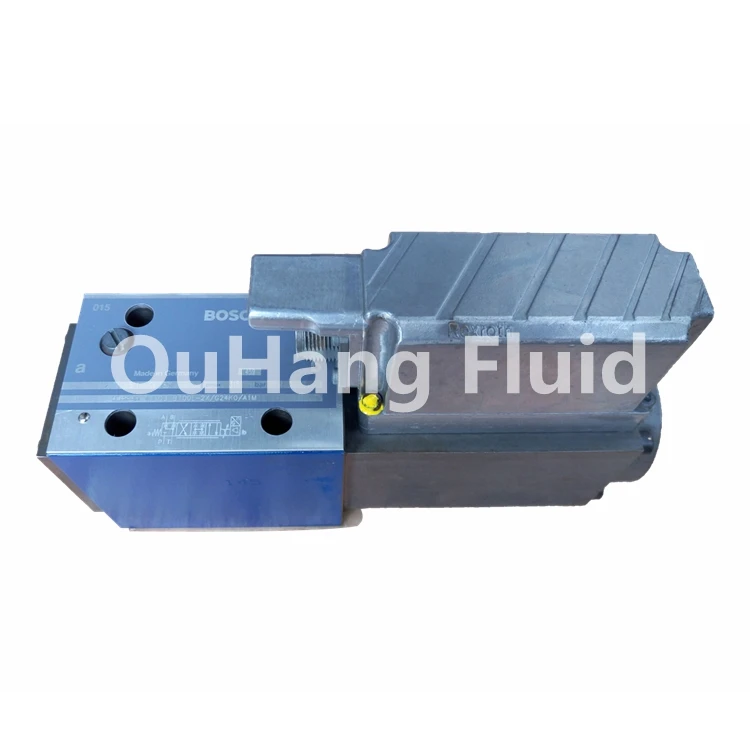

Bosch Proportional Valve 0811 404 801
US$ 100 - 101
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Bosch
Place of Origin:
Germany
Power:
/
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Special Supply Bosch Rexroth 4WRPEH 10 C3 B100L-2X/G24KO/A1M Proportional ValveUS$ 100 - 101MOQ: 1 Set -
NACHI Directional Valve SNH-G01-A2K-GR-D2-5089BUS$ 90 - 270MOQ: 1 Set
-
YUKEN Proportional Valve SB1120-D24-2002US$ 625 - 938MOQ: 1 Set
-
Vickers Proportional Valve KFDG5V 7 2C200N X VM U1 H1 12US$ 439 - 733MOQ: 1 Set
-
Italy ATOS Proportional Valve DPZO-T-373-L5/D 41US$ 600 - 1,195MOQ: 1 Set
Brand Name
Bosch
Place of Origin
Germany
Pressure
High Pressure
Product Description
*Direct acting servo solenoid valve with diameter 6, control piston and valve sleeve, servo performance;
*Single side drive, in the safe position of four position four-way when the power is off;
*The control electromagnet has built-in position feedback and integrated amplifier board (OBE), which is calibrated in the factory;
*Electrical connection 6p + PE
*Signal input differential amplifier with interface
*A1 + 10V, or interface F14... 20mA (RS 200)
*Suitable for electro-hydraulic controller in production and test system;
*For base plate installation, the mounting surface shall be in accordance with ISO 4401-03-02-0-94
*Base plate as per sample RC 45053 (ordered separately)
*Connection plug DIN 43563-am6
Derivatives available
*For standard applications;
*Special function symbols are used for plastic machinery;
*Valve amplifier board 11p + PE with wiring plug and module expansion;
Technical Parameters
Summary | ||
structure | Directly operated slide valve with steel sleeve | |
drive | Proportional solenoid valve with position controller, OBE | |
Installation form | Base plate, mounting hole structure diameter (ISO 4401-03-02-0-94) | |
Installation position | Arbitrarily | |
Ambient temperature range ℃ | -20…+50 | |
Weight kg | 2.7 | |
Regulations on earthquake resistance and testing | Maximum 25g vibrates in three dimensions (24h) | |
Related products
Packing&Shipping
In order to ensure that the product is not damaged during transportation, we will choose to use high-hardness cardboard boxes or wooden boxes to package the product according to the volume of the product, and adopt protective measures such as foamanti-collision and wooden frame fixing to ensure the safe and non-destructive delivery of the goods to the greatest extent.
