Home > Products > Hub Motor > CE approved High quality 4" 4inch 24v 36v 200W DC brushless geared hub motor
CE approved High quality 4" 4inch 24v 36v 200W DC brushless geared hub motor
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
CE High quality 4 inch 24v 36v brushless gearless single/double shaft hub motor
-
High quality 3" 3inch 12v 24v 36v single shaft brushless PU solid tire hub motor
-
high quality 8" 8inch 24v 36v 48v single shaft geared hub motor
-
Hongjun 6 Inch Double Shaft BLDC Hub Motor for Electrical Scooter
-
Hongjun solid PU tire 8 inch electric wheel hub motor
-
Hongjun 4 Inch Brushless DC Motor for Electrical Scooter
Product Details
| Brand Name | ETECH | Place of Origin | Sichuan, China | |
| Model Number | HJ-001G |
Product Description
High quality 4" 4 inch 24v 36v geared hub motor
A hub motor is an electric motor that turns a wheel without the use of a transmission. This is accomplished because a hub motor is built directly into the wheel's hub, which is the point around which the wheel rotates. This bypasses the need for a transmission, so hub motors are more efficient, especially at high rates of speed. It is common to find a hub motor on an electric bicycle.
Parameters of E-tech 4 Inch Geared DC Hub Motor | |
Voltage: | DC 24V/36V |
Power: | MAX:200W |
Speed: | MAX:6-8km/h |
Diameter with tire: | 100mm |
Brake: | EBS brake |
Tire: | solid rubber tire |
Weight: | 3KG with tire |
Size: | 4 inch |
Sensor: | With hall sensor |

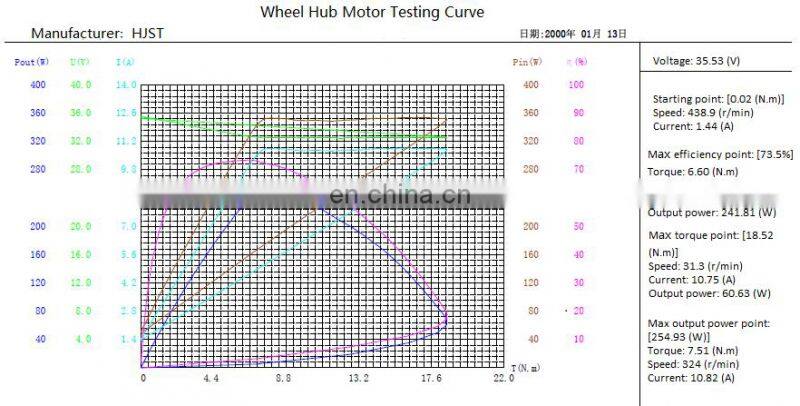

Testing Report (36V)
Curve
Drawing

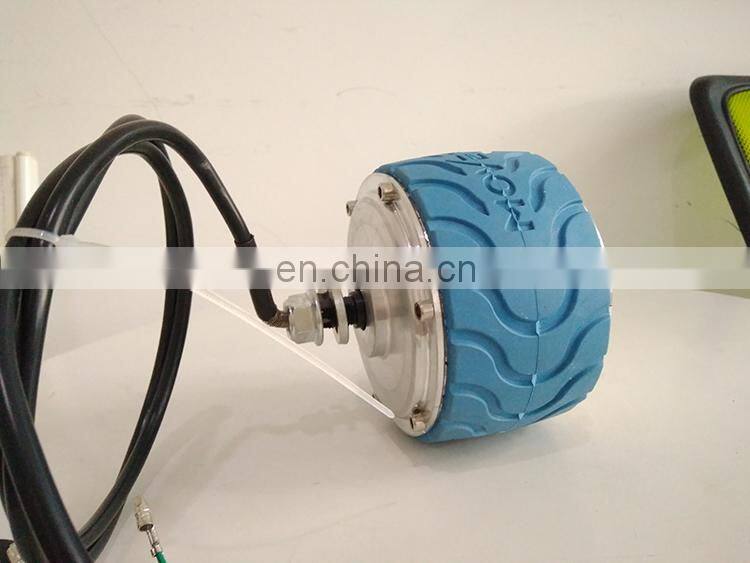

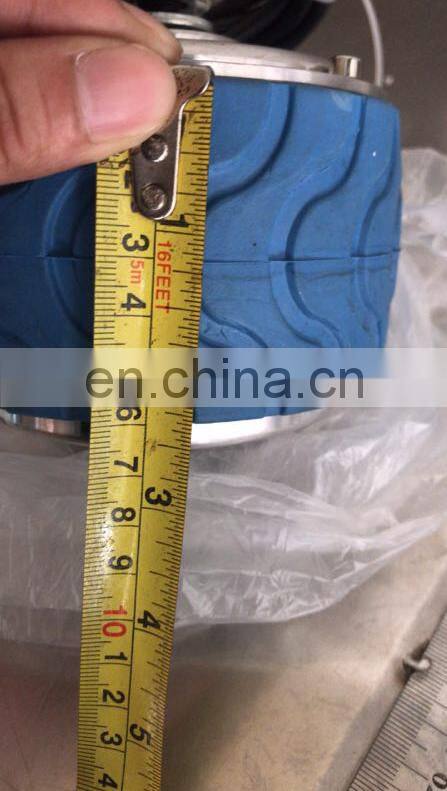

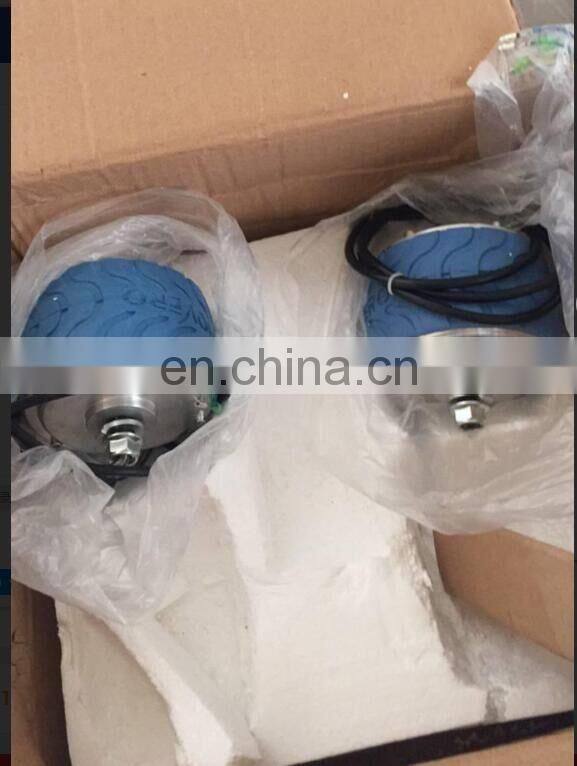

Products Photos
Other related spare parts from us:
1. Factory or trader?
We are factory, the source of the supply chain.
2. Low speed 4 inch hub motor with gear deliver time?
- Sample: 3 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
