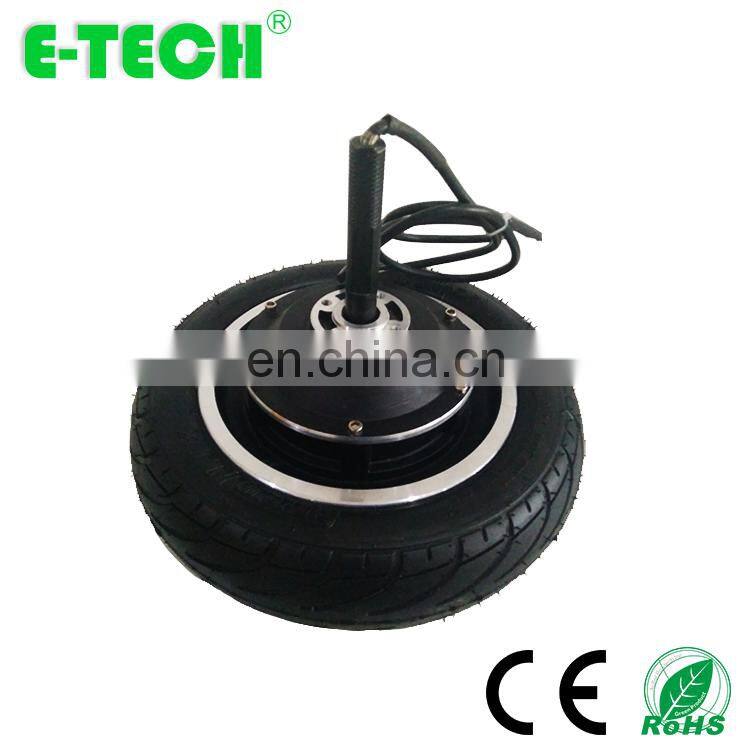

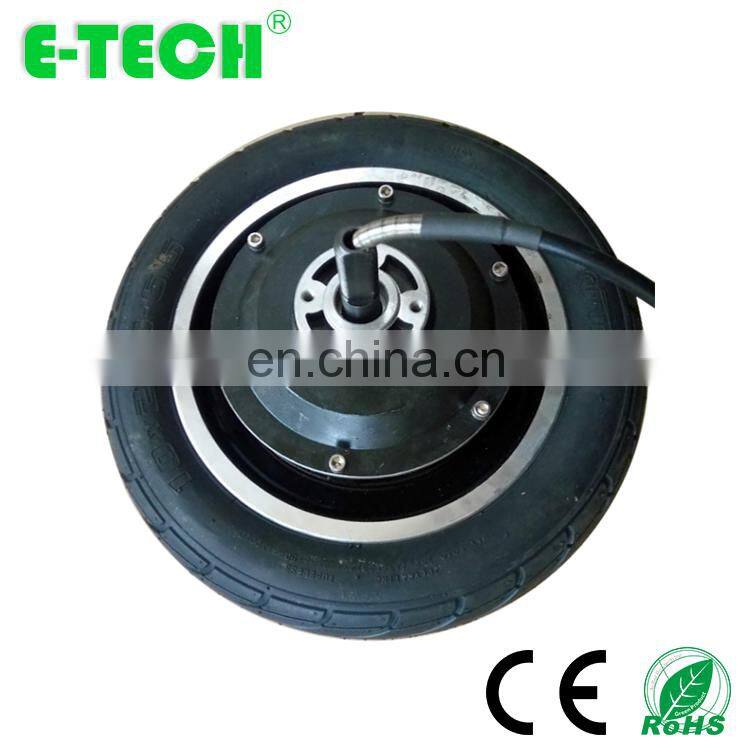

Built-in Encoder 10 Inch Single Shaft Pneumatic Tyre Geared 24V/36V/48V Electric Wheel Hub Motor
- T/T Credit Card
You May Like
-
8 Inch Bldc Geared Single Shaft Brushless dc Hub Motor With Encoder Robot Motors
-
Built-in 1024ppr Encoder 24V 36V 200W 4 Inch 100mm DC Brushless Robot Hub Motor Wheel
-
DC Brushless Gearless 13 Inch Single Shaft 48V 800W Electric Hub Motor Wheel
-
A Pair of Bicycle Electric Vehicle Motor Brushless Geared Spoke Hub Motor
-
500W 750W Brushless Geared Motor Front / Rear Spoke Hub Motor
-
High Power 1000W/1500W Cassette DC Hub Spoke Motor Electric Bicycle Modified Motor
Product Details
| Brand Name | ETECH | Place of Origin | Sichuan, China |
Product Description
| Hub Motor | Built-in encoder 10 inch DC brushless geared hub motor with tire |
| Hall sensor | 5 hall sensor |
| Brake | disc or EBS brake |
| Motor wheel size | 10 inch |
| Voltage | 24V/36V/48V |
| Power | 250W-400W |
| Speed | 300-600rpm |
| Tire diameter | 275mm |
| Load weight | Max 150kg |
| Tire | vacuum tire |
| Encoder | 1024ppr encoder |
Wire definition
Phase line
First phase: U. thick green wire
Second phase: V. thick yellow wire
Third phase: W. thick blue wire
Encoder
A pulse: purple thin wire
B pulse: gray thin wire
Temperature control induction line: orange thin wire, white thin wire
Hall sensor
Positive pole: +5V red wire
Negative pole: GND black wire
First phase: A(Uu). thin green wire
Second phase: B(Vv). thin blue wire
Third phase: C(Ww). thin yellow wire
Our hub motors from 3 inch to 15 inch are widely used for below application, also you can do DIY and use it to bulid other products
1. Factory or trader?
We are factory, the source of the supply chain.
2.hub motor deliver time?
- Sample: 5 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
