Home > Products > Hub Motor > DC Brushless Gearless 13 Inch Single Shaft 48V 800W Electric Hub Motor With Encoder

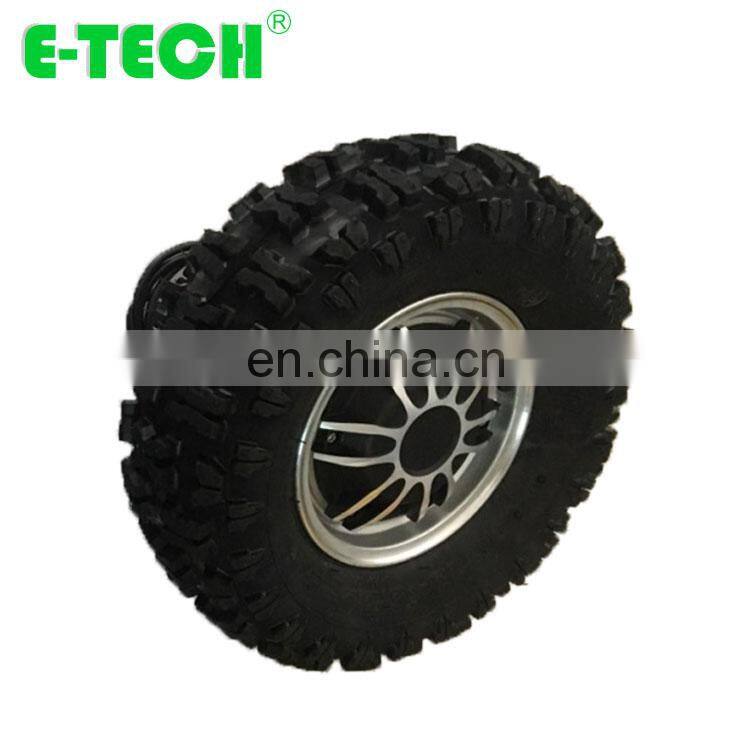

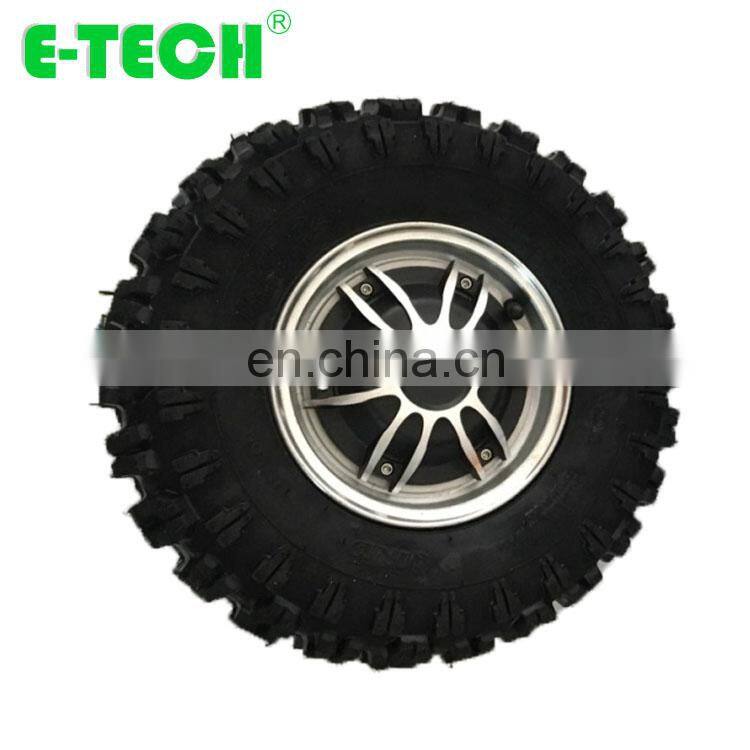

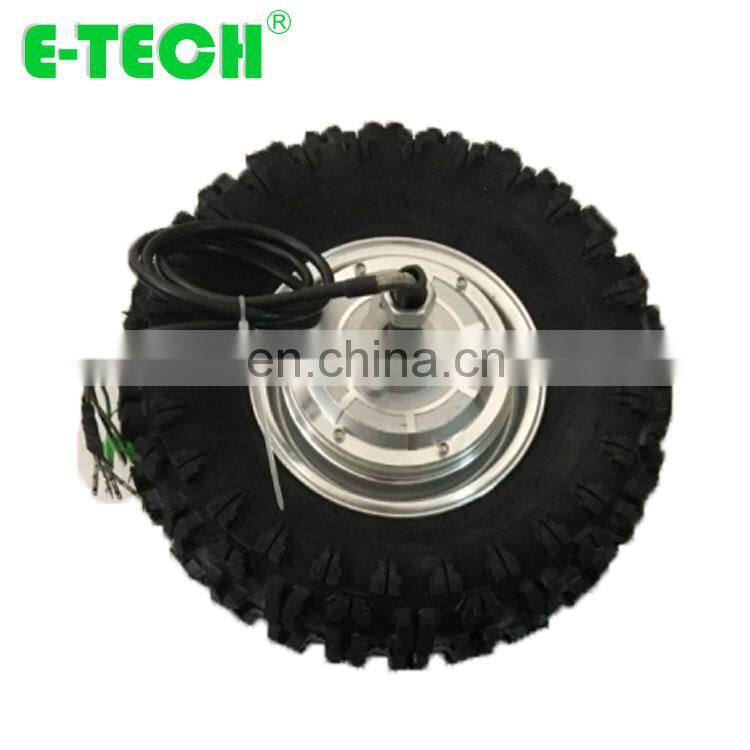

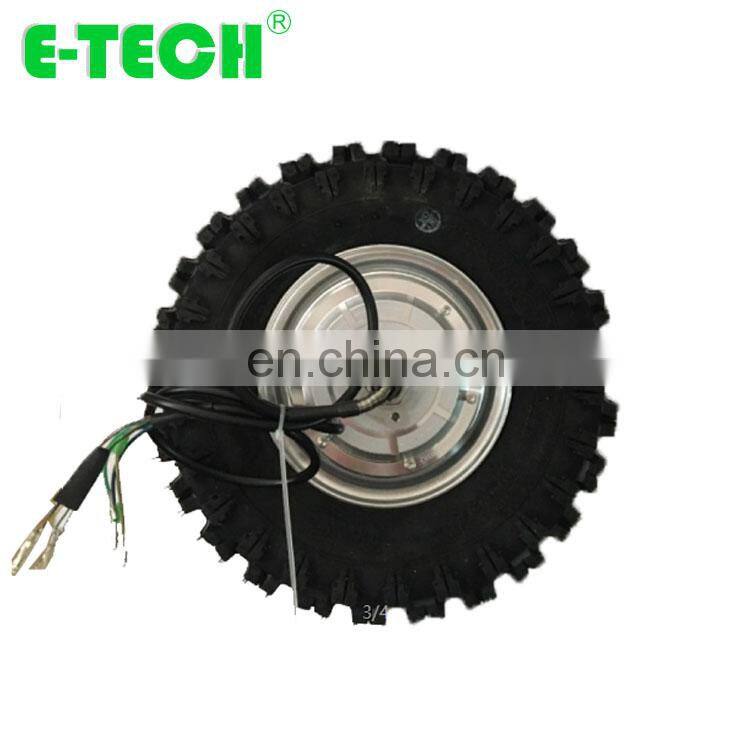

DC Brushless Gearless 13 Inch Single Shaft 48V 800W Electric Hub Motor With Encoder
US$ 99 - 135
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
Programmable DC 15 Inch Geared 48v 400W Robotics Motor Wheel With Encoder
-
DC Brushless 1024 Line Encoder 13 Inch Geared 33cm Single Shaft 250W-400W Hub Motor With Hall Sensor
-
Built-in Encoder 10 Inch Single Shaft Pneumatic Tyre Geared 24V/36V/48V Electric Wheel Hub Motor
-
8 Inch Bldc Geared Single Shaft Brushless dc Hub Motor With Encoder Robot Motors
-
Built-in 1024ppr Encoder 24V 36V 200W 4 Inch 100mm DC Brushless Robot Hub Motor Wheel
-
DC Brushless Gearless 13 Inch Single Shaft 48V 800W Electric Hub Motor Wheel
Product Details
| Brand Name | ETECH | Place of Origin | Sichuan, China |
Product Description
| Hub Motor | 13 inch DC brushless gearless single shaft hub motor with encoder |
| Hall sensor | 5 hall sensor |
| Brake | disc or EBS brake |
| Motor wheel size | 13 inch |
| Voltage | 48V |
| Power | 800W |
| Speed | 300-1500rpm |
| Tire diameter | 320mm |
| Load weight | Max 100kg |
| Tire | vacuum tire |
| Encoder | 1024ppr |
| Cable | 3 motor phase, 5 hall sensor, 2 encoder |
Testing Curve
Products Photos
all gearless motor
all geared hub motor
Application
Our hub motors from 3 inch to 15 inch are widely used for below application, also you can do DIY and use it to bulid other products
FAQ
1. Factory or trader?
We are factory, the source of the supply chain.
2.hub motor deliver time?
- Sample: 5 days.
- Bulk order: 7-25 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Quiet, Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
