60mm Spur Gear 86mm Stepper Motor Planetary Gear Box

60mm Spur Gear 86mm Stepper Motor Planetary Gear Box photo-1

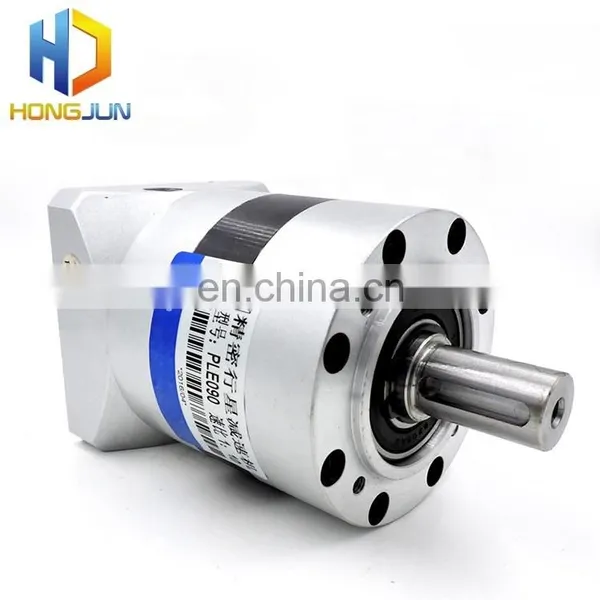

60mm Spur Gear 86mm Stepper Motor Planetary Gear Box photo-2
60mm Spur Gear 86mm Stepper Motor Planetary Gear Box photo-3

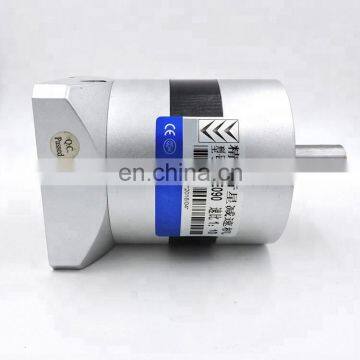

60mm Spur Gear 86mm Stepper Motor Planetary Gear Box photo-4
60mm Spur Gear 86mm Stepper Motor Planetary Gear Box photo-5
60mm Spur Gear 86mm Stepper Motor Planetary Gear Box photo-6
US$ 23 - 96 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hongjun
Place of Origin:
Sichuan, China
Output Speed:
Max. ratio 512:1
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Hongjun
Place of Origin Sichuan, China
Output Speed Max. ratio 512:1
Input Speed Max.10000rpm
Output Torque Max. 667N.m
Gearing Arrangement Spur

60mm spur gear 86mm stepper motor planetary gear box

60mm spur gear 86mm stepper motor planetary gear box

Product Description

Planetary Gearbox for Stepper Motor & Servo Motor:



This is a spur planetary gearbox which used for stepper motor and servo motor!  Our spur planetary gearboxes external diameter from 40 to 120, gear ratio from 3 to 512! It has high precision and are widely used with servo motor such like Panaso nnic, Mitsubishi, Omran, Teco...



1)Series: PLE, PLF, PLS, WPL, WPLF, ZB, ZE, ZDF, ZDE, ZDS, ZDWF, ZDR, ZDG
2) Gearbox outline dimension: 40, 60, 80, 120, 160
3) Reduction ratio: 1~512
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 6000rpm
6) Life: 30, 000 hours
7) Backiash: Stage 1: <3 (arcmin)
                    Stage 2: <6 (arcmin)
                    Stage 3: <8 (arcmin)
8) Operating temperature: -25C to +90C



60mm spur gear 86mm stepper motor planetary gear box:
60mm spur gear 86mm stepper motor planetary gear box60mm spur gear 86mm stepper motor planetary gear box

Packaging & Shipping

Packing Method:

   1: MOQ: 1 pcs minimum order
   2: Packing: 1 pcs per box or according to your requirements

            a). Carton Packing;
            b). Wooden Packing;
            c). Customized Packing.

Shipping:

   * We support TNT, DHL, UPS, FedEX, EMS and your own Shipping Forwarder.

   * 3 days by AIR & 30-45 days by SEA. (Europe and North America)

60mm spur gear 86mm stepper motor planetary gear box

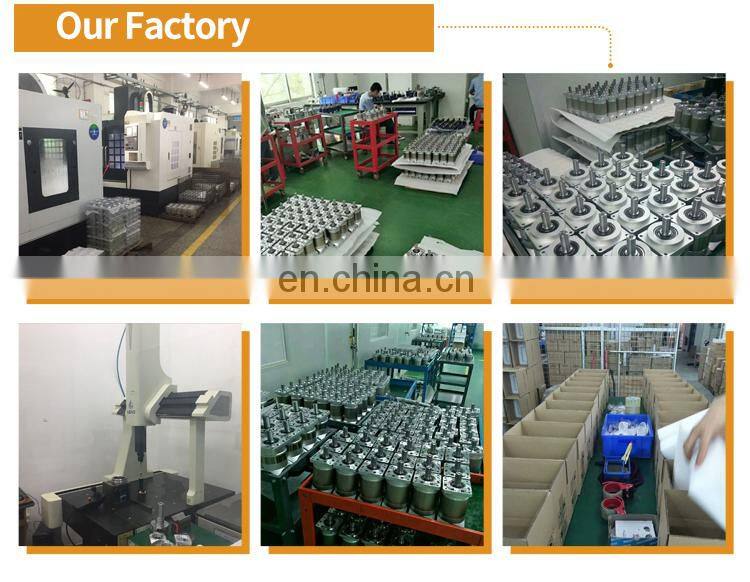

Factory Tour

 As one of the leading manufacturer for gear motor and precision planetary gearbox, Hongjun Science and Technology Co., Ltd. works in this field for more than 15 years! There are 1000 workers in our factory including 40 technicians! We have the biggest market share in domestic China market and sales qty only for AC gear motor is more than 1.5 million pcs in 2015!

60mm spur gear 86mm stepper motor planetary gear box60mm spur gear 86mm stepper motor planetary gear box60mm spur gear 86mm stepper motor planetary gear box
