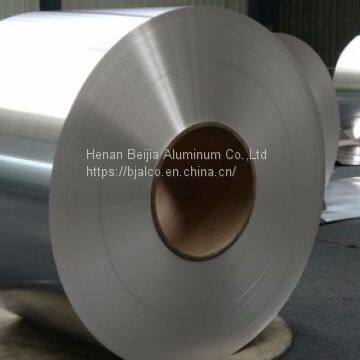

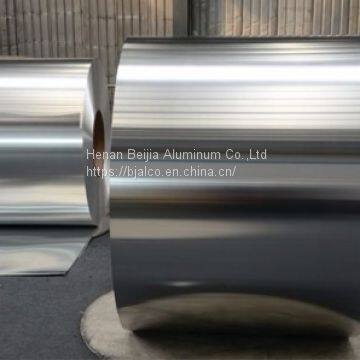

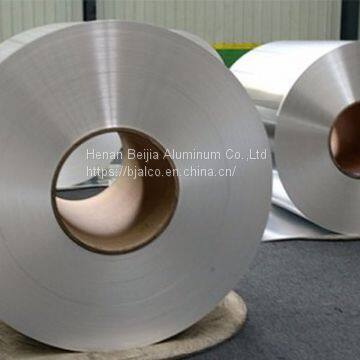

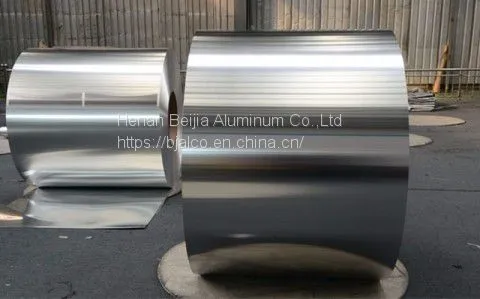

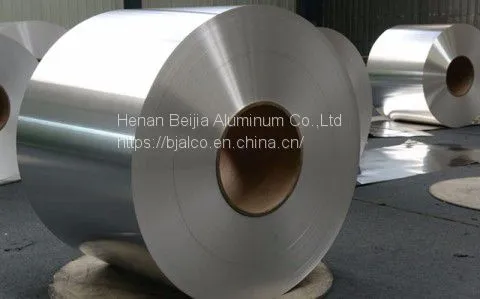

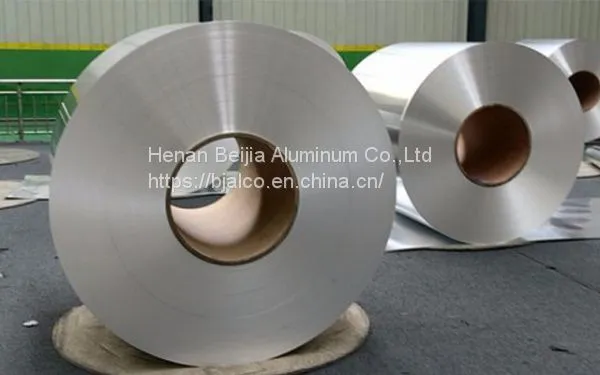

Product Name:Aluminum Alloy Coil for Capacitor/Trailer Roof and Truck 3003 5052 5083 5754
We can prouce 3003 Aluminum Coils for Trailer Roof in extra wide size: Max. Width reaches 2650mm and length ≥10000mm
High Uniformity : annealed by continuous heat treatment line, and the properties differences of the same coil and between coils are small
Precise dimension and excellent flatness: dimension and flatness meet EN/ASTM standard
AL 3003 is an alloy with very good corrosion resistance and moderate strength. Excellent weldability, formability, with good machinability makes 3003 Aluminum Sheet, coil and tread plate is popular and economical choice in Appliance Components.
3003 Aluminum Coils for Trailer Roof is with max width 2650MM which is much convenient for the trailer producing.
Chemical Composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Standard |
3003 |
0.6 |
0.7 |
0.05-0.2 |
1.0-1.5 |
- |
- |
0.1 |
- |
EN/ASTM |
3003 Aluminum Coils for Trailer Roof
Alloy |
Temper |
Thickness (mm) |
Width(mm) |
Length(mm) |
3003 |
H14/H16/H24/H26 |
0.2-3.5 |
2000-2650 |
≥10000 |
5052 |
H32/H34 |
0.2-3.5 |
2000-2650 |
≥10000 |
3003 Aluminum Coils for Trailer Roof Mechanical Properties
Alloy |
Temper |
(Rp 0.2/Mpa) Yield Strength |
Rm(Mpa) Tensile Strength |
A(%) Elongation |
Standard |
3003 |
H14 |
≥115 |
140-180 |
≥3 |
EN/ASTM |
H24 | |||||
H16 |
≥145 |
165-205 |
≥3 |
||
H26 | |||||
3004 |
H38 |
≥215 |
≥260 |
≥2 |
|
5052 |
H32 |
≥160 |
215-265 |
≥4 |
|
H36 |
≥200 |
265-305 |
≥2 |

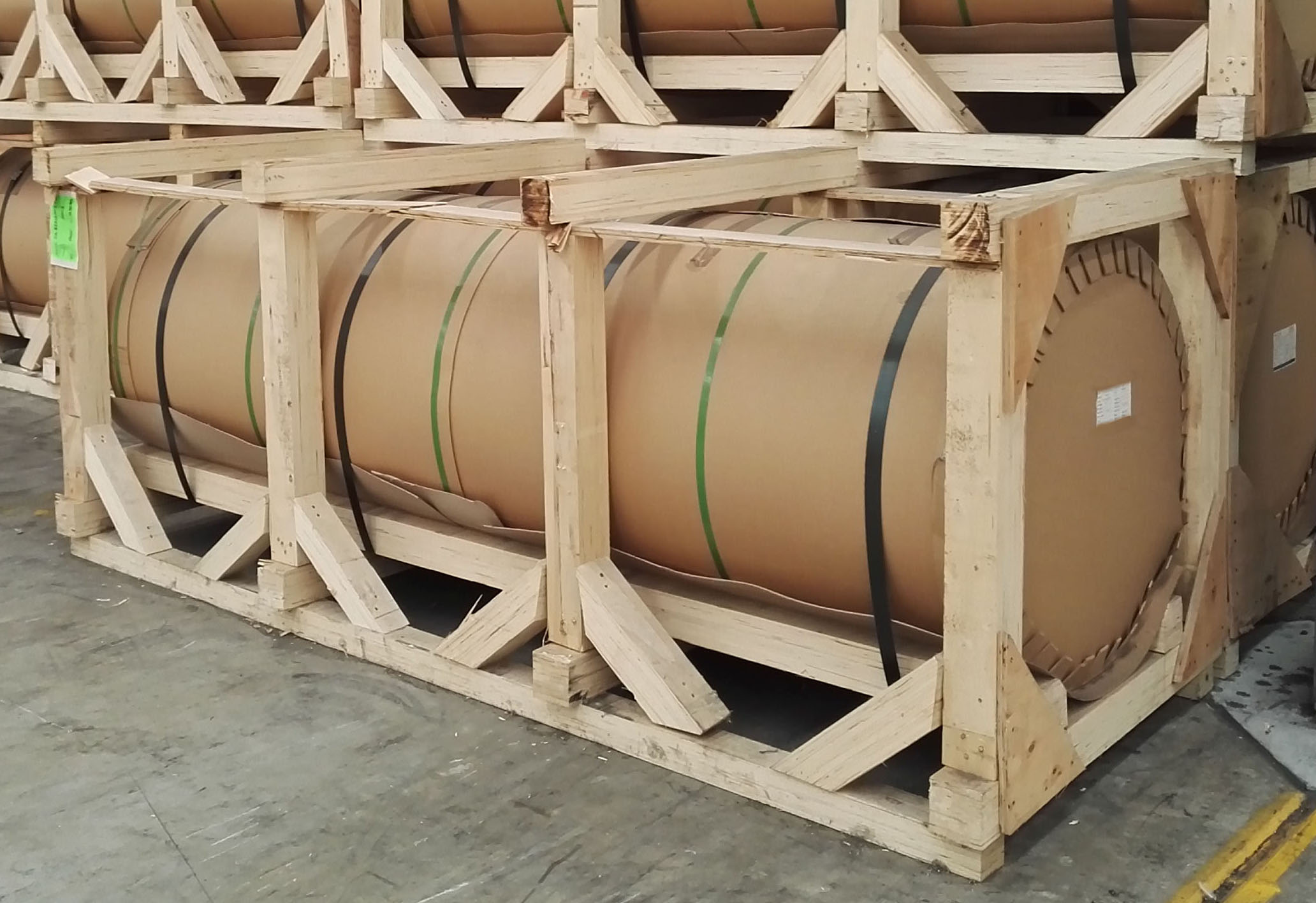

3003 aluminum coils packaging,
