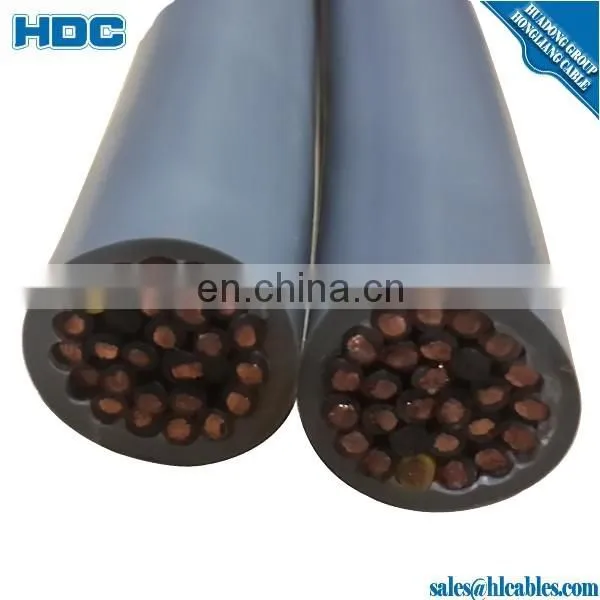

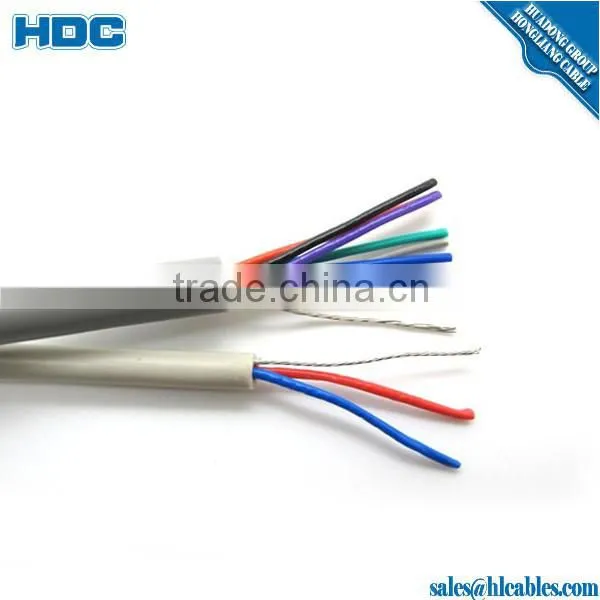

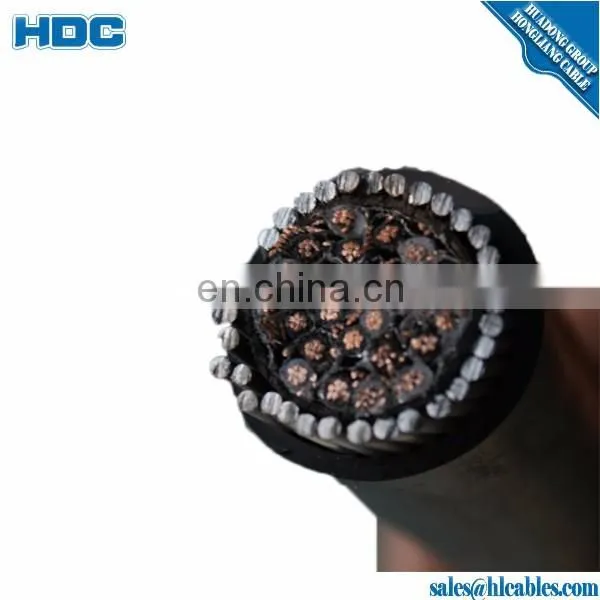

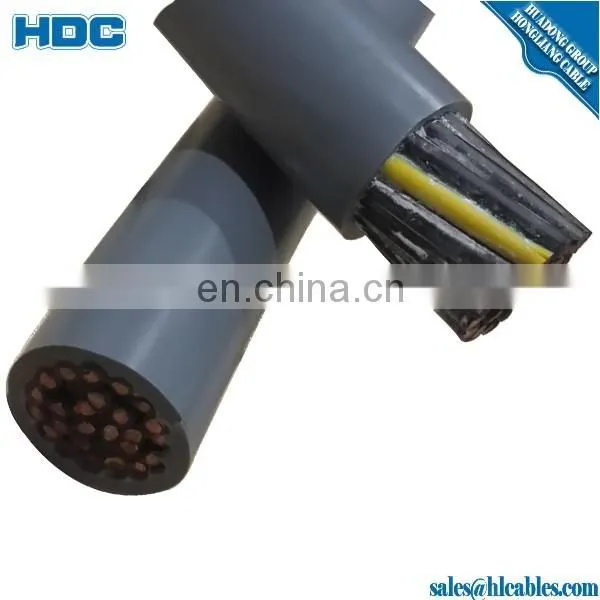

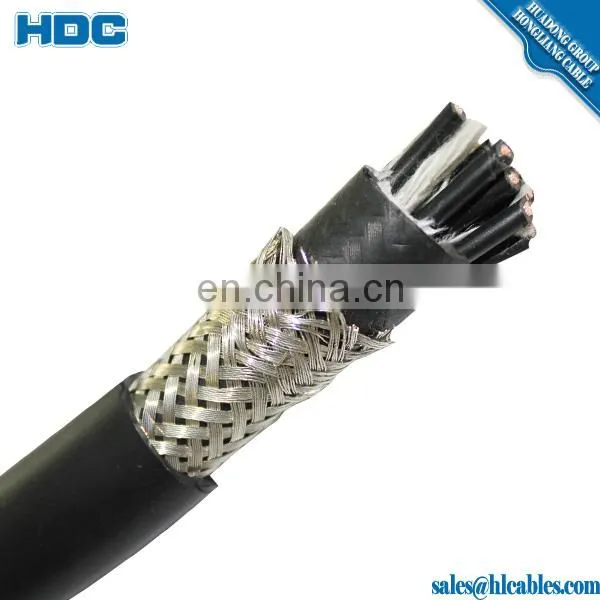

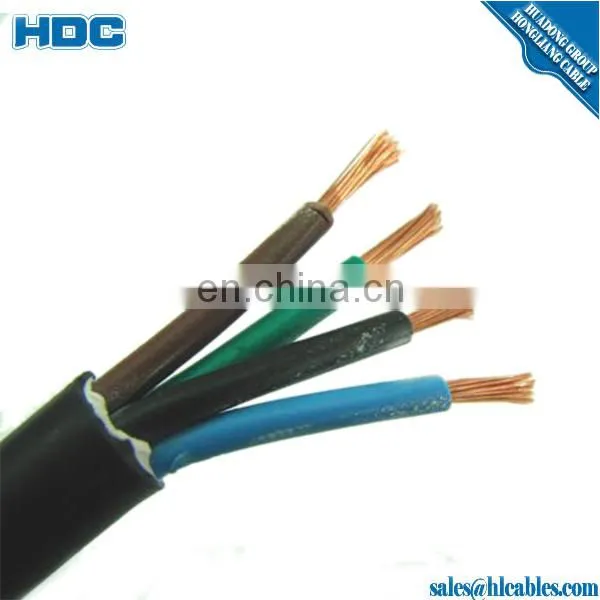

300/500v Muti pair AL-PES tape overall screen armoured instrument cable.
ROHS,UL
GB/T19001, ISO9001
Rated temperature: 200oC
AC rated voltage: 600V
Conductor:solid or stranded wire (0.014~95mm2 ) of tin-plated ,silver or bare copper .
Insulator: FEP(F46)
Color: redbluewhite yellow greenbrownblackgrey transparent
It is corrosion-resistant and almost impossibly soluble in any organic solvent and it is oil-resistant , less high-frequency loss , moisture-proof and has big insulation resistance .Also, it is incombustible ,non-aging and durable. The length of delivery should not be less than 8 meters and the quantity of short delivery should not be more than the quantity of 20% of all delivery. Use Range It is used in air-conditioner, microwave oven, electric products, lighting sets, electric heater, oven, electric factory, various motors and so on.
| Condutor | Insulation | Conductor resistance at 20deg.C≤( Ω /km) | ||||
| Spec AWG | Conductor construction No.×mm | Diameter mm | Insulation thickness mm | Over outer diameter mm | Siliver-Cu core | Nickel-Cu core |
| 26 | 7×0.15 | 0.45 | 0.33 | 1.15 | 143.00 | 187.00 |
| 19×0.10 | 0.50 | |||||
| 24 | 7×0.20 | 0.60 | 0.33 | 1.27 | 89.20 | 97.80 |
| 19×0.12 | 0.60 | |||||
| 22 | 7×0.25 | 0.76 | 0.33 | 1.47 | 56.40 | 67.20 |
| 19×0.15 | 0.76 | |||||
| 20 | 7×0.31 | 0.96 | 0.33 | 1.67 | 35.30 | 40.10 |
| 19×0.19 | 0.96 | |||||
| 18 | 7×0.39 | 1.20 | 0.33 | 1.90 | 22.20 | 24.70 |
| 19×0.235 | 1.20 | |||||
| 16 | 7×0.50 | 1.50 | 0.33 | 2.23 | 14.00 | 16.20 |
| 19×0.30 | 1.90 | 0.33 | 2.63 | 8.78 | 9.50 | |
| 14 | 19×0.37 | 2.40 | 0.33 | 3.20 | 5.53 | 6.08 |
| 12 | 19×0.46 | 2.70 | 0.33 | 3.45 | 4.39 | 4.86 |
| 10 | 37×0.43 | |||||
300/500v Muti pair AL-PES tape overall screen armoured instrument cable.
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
300/500v Muti pair AL-PES tape overall screen armoured instrument cable.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton,We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
300/500v Muti pair AL-PES tape overall screen armoured instrument cable Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
300/500v Muti pair AL-PES tape overall screen armoured instrument cable Certificate:
The company has passed ISO quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
