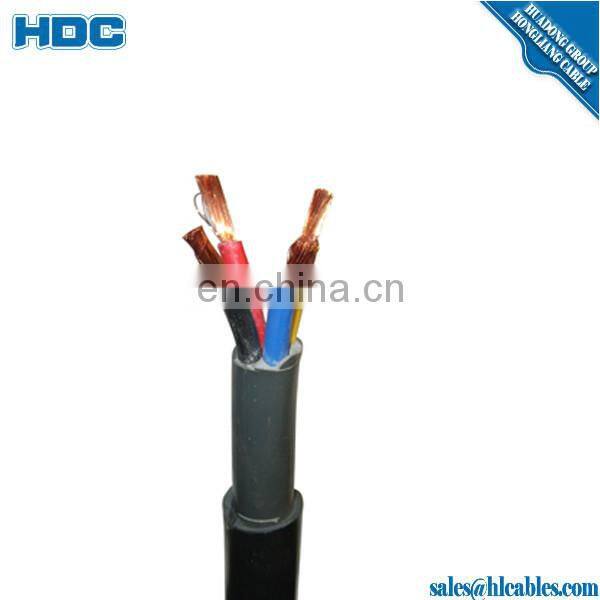

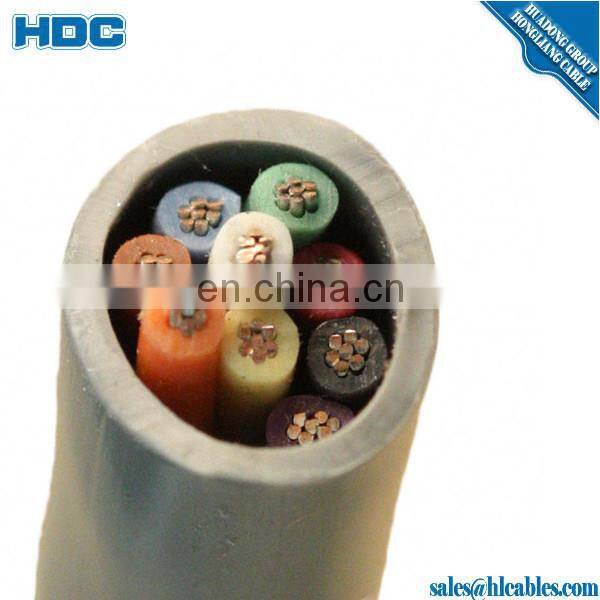

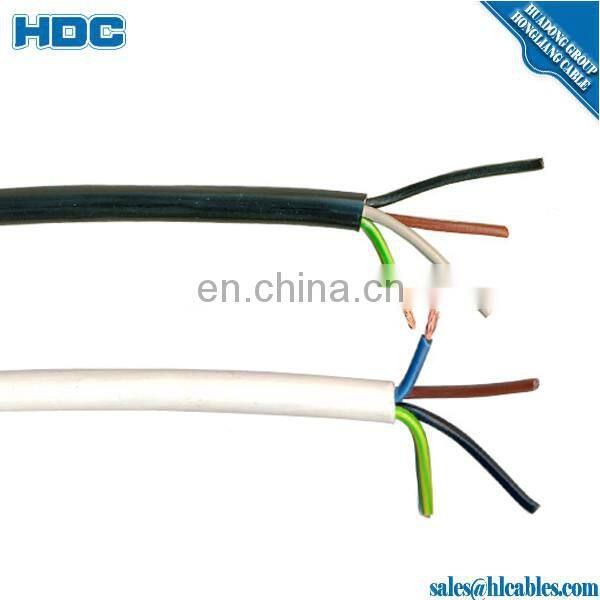

PVC Insulated Screen Flexible Control Cable With Multicore Cable

Conductors
Conductors shall be Circular Stranded, Class 2 as per IEC 60228, BS EN 60228. Upon request, Solid Circular Conductor,Class 1 as per IEC 60228, BS EN 60228 can be supplied.

Insulation
XLPE material and thickness shall be as per IEC 60502-1 rated 90ºC for continuous operation or PVC Insulation Type A as per IEC 60502-1 or TI1 as per BS 7655 rated 70 ºC for continuous operation.

Assembly
The Insulated Conductors are laid-up together with non-hygroscopic fillers wherever necessary, the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted provided the outer shape of the cable remains practically circular.

Standard Colour Code
Single core : Red or Black
Two cores : Red, Black
Three cores : Red, Yellow, Blue
Four cores : Red, Yellow, Blue, Black
Five cores : Red, Yellow, Blue, Black, Green
Six cores & above : White numerals printed on black core insulation.

Armour (Optional)
• Galvanized Steel Wires applied helically over the bedding as per IEC 60502-1 (or BS 5467, BS 6346 as per
customer requirements).
• Double Steel Tapes applied helically over the bedding as per IEC 60502-1.

Screening (Optional)
• Copper Tape(s) of nominal thickness 0.05mm applied helically with suitable overlap or as per customer
requirement.
• Copper Wire Screen (upon request) as per customer requirement.

Outer Sheath
PVC Type ST2 as per IEC 60502-1 and Type 9 as per BS 7655 coloured Black.

1) 100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.

Established year: 1988

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km.

Multicore PVC Insulated screen flexible control cable Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.

Meanwhile we can produce based on customers' requirements and specifications.

Multicore PVC Insulated screen flexible control cable Certificate:

The company has passed ISO9001 quality certification, CCC China Compulsory Certification, National Electrical

Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation

of Urban and Rural Power Grid Construction.

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
