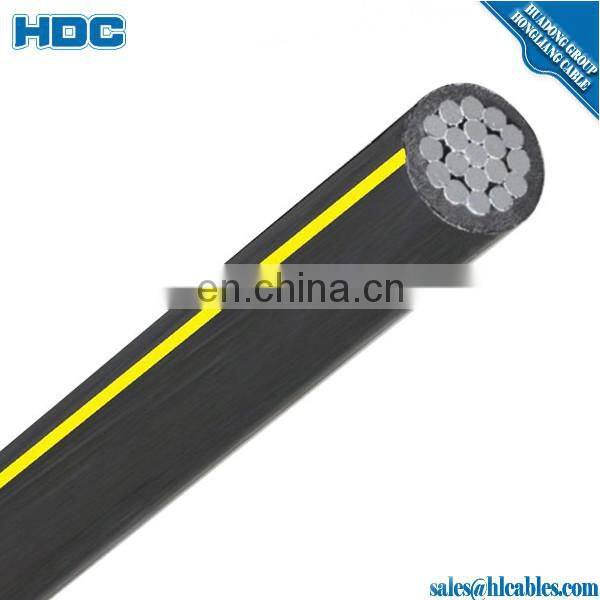

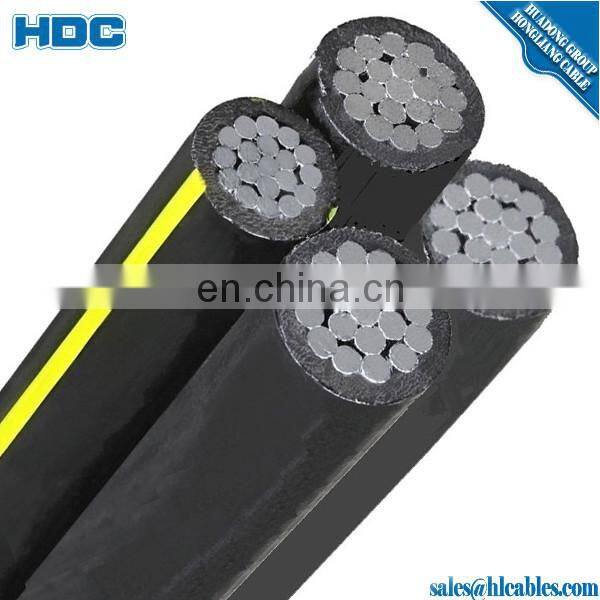

Secondary URD Aluminum Alloy Triplex Cable 600V Bergen 1/0 AWG XLP Insulation Factory Price

Secondary URD Aluminum alloy Triplex cable 600V Bergen 1/0 AWG XLP insulation factory price

Applications: Directly buried or installed inducts for 600 volt secondary distribution.

Construction: Concentric stranded or compressed 1350-H19 aluminum conductors, crosslinked polyethylene insulation. Insulated conductors surface printed, neutral triple yellow striped. Two phase and one neutral conductor twisted together (LH lay) or parallel if so specified. Black neutrals may be specified if desired.

Standards: Secondary UD triplex conductor 600V cable meets or exceeds the following ASTM specifications.

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

B-231 Aluminum 1350 conductors, Concentric-Lay-Stranded.

B-786 "19 Wire combination unilay-stranded Aluminum Conductors for subsequent insulation".

B-901 "Compressed round stranded Aluminum Conductors using single input wire construction".

Secondary UD triplex conductor 600V cable meets or exceeds all applicable requirements of ICEA S-105-692.

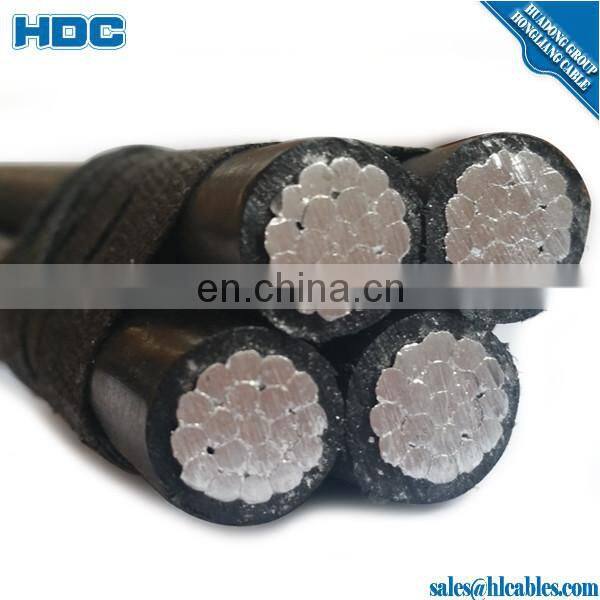

Aerial Bundle ABC Cable

For single core PVC or XLPE insulated or covered aerial cable without messenger or neutral conductor,
the phase conductor may be AAC or AAAC or ACSR or Copper.

For more than one core PVC or XLPE insulated 11kv abc cable with or without messenger or
neutral conductor and with or without street lighting conductor, the phase conductor
and street lighting conductor are AAC with PVC insulation,and the messenger or neutral conductor is AAAC or ACSR with or without

PVC(XLPE) insulation.
Operating Characteristics of Aerial Bundle ABC Cable
Rated voltage: Up to and including 0.6/1(1.2)kV;

.

permissible continuous operating temperature of conductor: 90oC(XLPE insulated), 70 oC (PE insulated), 70 oC (PVC insulated);

temperature of conductor during short-circuit ( 5s max. duration) shall not exceed: 250oC(XLPE insulated), 130 oC (PE insulated), 160 oC (PVC insulated); 11kv abc cable
The ambient temperature under installation should not be lower than: -20 oC.

Application of Aerial Bundle ABC Cable

PVC or XLPE insulated 11kv abc cable as a new-type aerial cable is used for overhead electric power transmission,
extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

Construction

Packaging & Shipping

Within 2 weeks after confirming the order BV Cable1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
