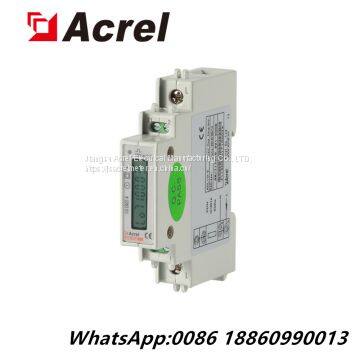

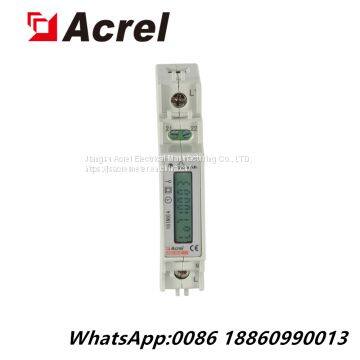

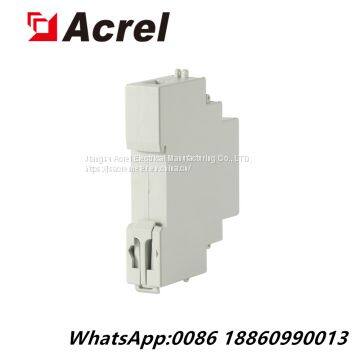

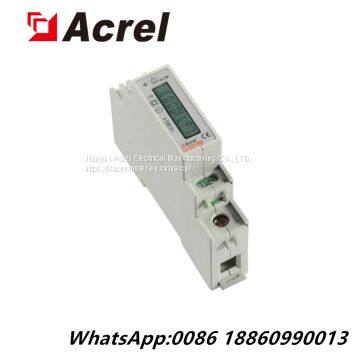

Help CenterAcrel 300286.SZ ADL10-E/C Single Phase Din Rail Energy Meter 230V 60A 9999999.9kwh Energy Digital Volt Meter
Related Products
-
Acrel 300286.SZ Din Rail Modbus Rtu Mounted Voltmeter Ammeter Power Meter ADL10-E/C CE ApprovalUS$ 23.8 - 23.8MOQ: 1 Piece -
Acrel 300286.SZ ADL10-E/C 1 Module 18mm Din Rail Mounted Single Phase Modbus Power MeterUS$ 23.8 - 23.8MOQ: 1 Piece
-
Acrel 300286.SZ Din Rail Lcd Single Phase Energy Meter Modbus With CE Approval ADL10-E/CUS$ 23.8 - 23.8MOQ: 1 Piece
-
Acrel 300286.SZ ADL10-E/C Cheap Din Rail Mounted Single Phase Rs485 Energy MeterUS$ 23.8 - 23.8MOQ: 1 Piece
-
Acrel 300286.SZ ADL10-E/C RS485 Multifunctional Energy Meter Measuring Voltage,power,power FactorUS$ 23.8 - 23.8MOQ: 1 Piece
Product Description
ADL10-E Single Phase Electric Energy Meter
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features
● AC 220V
● 10（60）A
● RS485，MODBUS-RTU
● LCD display
● kWh Class 1，Kvarh Class 2
● U、I、P、Q、S、PF、kWh、kvarh
● DIN 35mm
Technical Parameters
Voltage | Reference voltage | AC 220V |
Reference frequency | 45-65 Hz | |
Consumption | <10VA( Single phase) | |
Current | Maximum | 60A |
Starting current | 0.004 Ib | |
Consumption | <4VA(Maximum current) | |
Measurement performance | Accuracy of active kWH | Class 1 |
Standards complicant | IEC 62053-21:2003 | |
Pulse | Pulse width | 80+20 ms |
Pulse constant | 3200 imp/kWH | |
Communication | Interface | RS485 |
Protocol | Modbus-RTU | |
Outling | L*W*H(mm) | 18*88*70 |
Environment | Temperature | Operating:-25℃~55℃；Storage:-40℃~70℃ |
Humidity | ≦95% (No condensation) | |
Altitude | <2000m |
LCD Display
Function
Wiring
Typical connection
Detailed Information
