Hysoon HY200 mini wheel loader made in China
23HP gasoline engine
Italy hydraulics
200kg load capacity
ride on operate
quick hitch plate
With CE
1.Famous engine meets all emission standards
2.Imported hydraulic parts ensure easy operation and maintenance
3.Super trafficability because of the narrow width
4.200kg load capacity
5.160mm hight ground clearance
6. 1755mm dumping height
7. four wheel driving
8. more than 30 kinds of loader attachmen for choice
Hysoon HY200 mini wheel loader made in China
| Max Pin Height (B) | 1755mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 22L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |

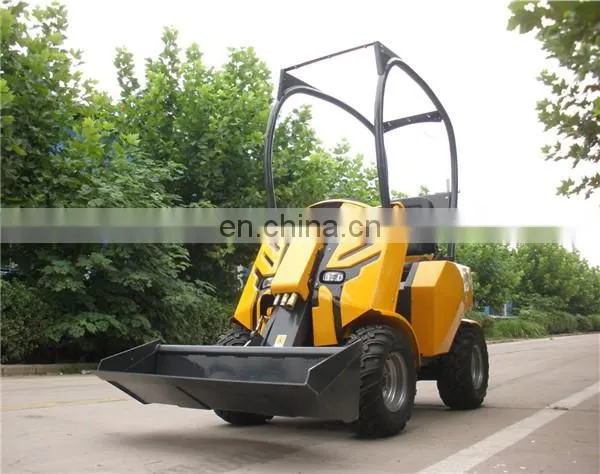

More pictures of Hysoon HY200 mini wheel loader made in China

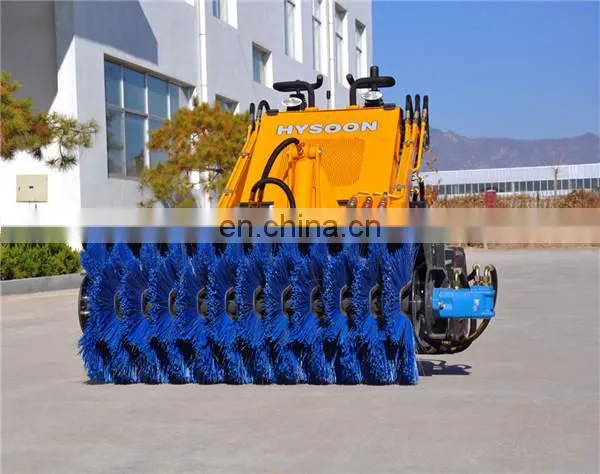

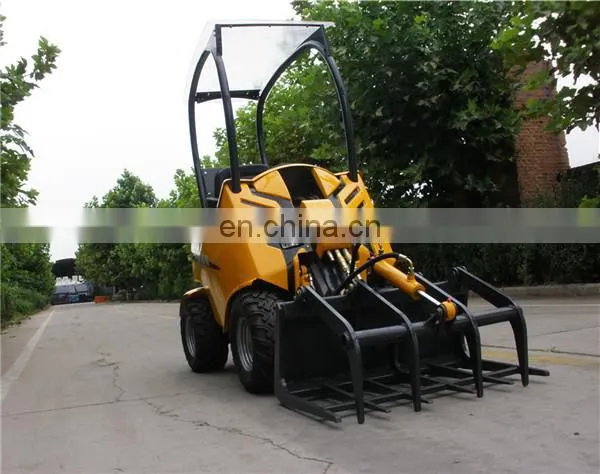

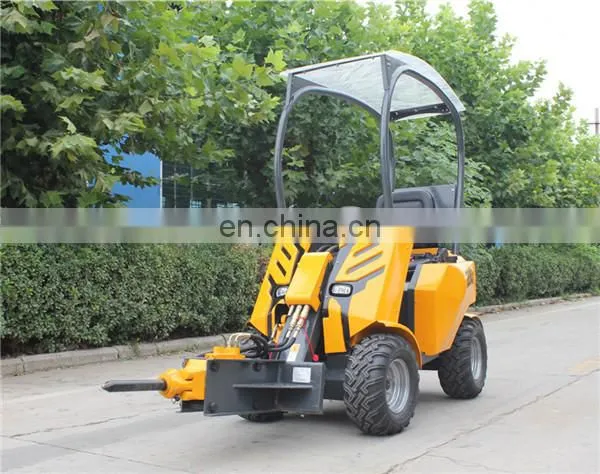

Hysoon HY200 mini wheel loader attachment as below
for sample order-----packing by steel frame and covered with ply-wood,delivery by LCL container
for quantity order----loaded into container directly and fasted well,4sets/20'container for the Hysoon HY200 mini wheel loader .
Sample order available
Customize available
Quickly respond about after-sale service
TAIAN HYSOON MACHINERY CO.,LTD is the original manufacturer of the mini dumper,mini loader,mini skid steer loader,skid steer loader and loader attachment in China.We focus on research and manufacture the small and medium-sized construction machinery.We currently have 4 series in manufacture,more than 10 kinds of products.Including Mini Loaders,Skid Steer Loaders,Dumpers,Tracked Carrier.Most of them have got C E and GOST Certification,and exported world-wide,for example Germany,Sweden,Australia, America.
And there is more than 30 kinds of attachments for loaders,such as Sweeper,Digger,Hydraulic Breaker,Fork,Lawn Mower,Trencher, to suit any different work requirement.
TAIAN HYSOON MACHINERY CO.,LTD concentrates on supplying solution for small and middle construction projects,researching and developing high quality products according to customers’ requirements,creating more value for customers.Looking forward to cooperate with you,achieving Win-Win situation.
Welcome to HYSOON!
Why us?
1. We are the 1st manufacturer of mini loader,mini skid steer loader,mini dumper and mini skid steer attachmetns in China.
2. Independent of the design team, Professional production team,15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning.
Maybe we are not the lowest price, But we offer products is the highest quality.
4. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow.
Our Warranty?
1. Offer you accessories for free.in 1 year warranty period.
2. Engine Warranty is 3 years, International Warranty.
3. Provide technical support for life.
Do we have Distributors?
Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world. If you want to be one of them, please contact us.
Can we Support OEM?
Yes, we can.

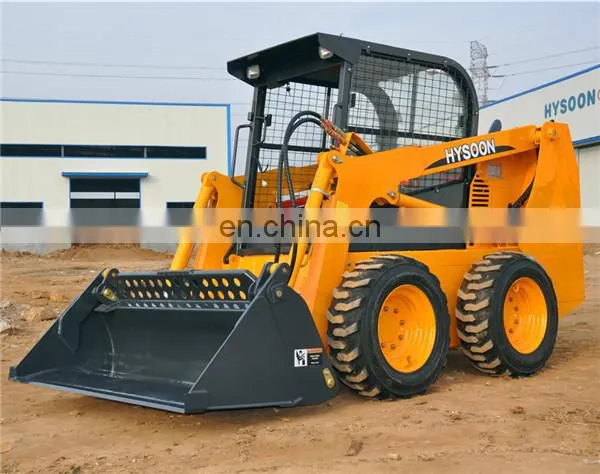

We also supply the below products
For any further question,please do not hesitate to contact
