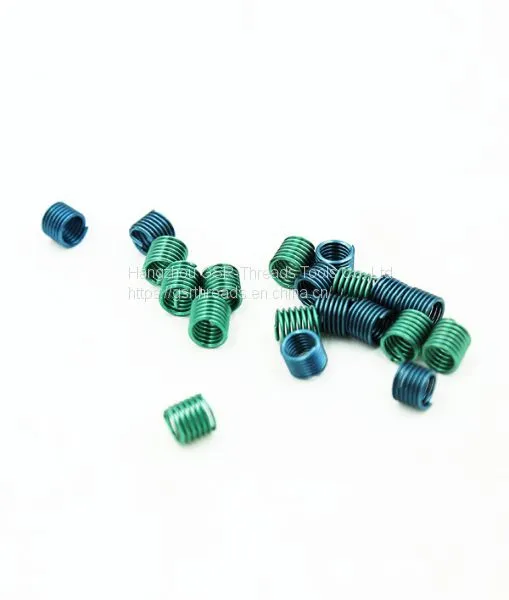

Wire thread insert
Stainless steel GSR thread inserts guarantee a very good corrosion and heat resistance. The cross section is rhombic. The wire is coiled into an elastic spring. There is a tappet at the lower end. While screwing in the thread insert, the spring is slightly tensed and holds the insert in the internal thread.
Technical Data:
Standard DIN8140
Material 304 Stainless Steel
Tolerance ISO2(6H)
Length 1.0d;1.5d;2.0d;2.5d;3.0d
Surface Treatment:
● Dry Film Lubricant(Mollylube)
Providing additional lubrication in high friction applications
High temperature resistance
Mildly corrosion resistant
● Cadmium Plating
High corrosion resistant
Preventing galling during installing
● Nickel Plating
High corrosion resistant
Preventing galling during installing
● Silver Plating
Reducing galling of threads at high temperature
● Colored
● Free Running
