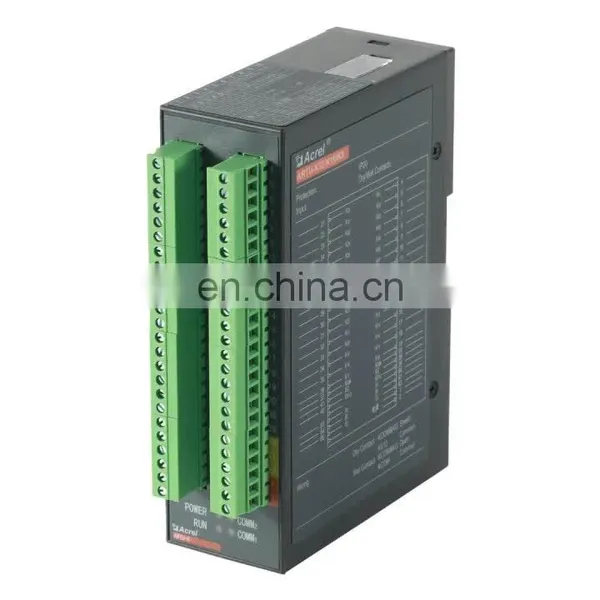

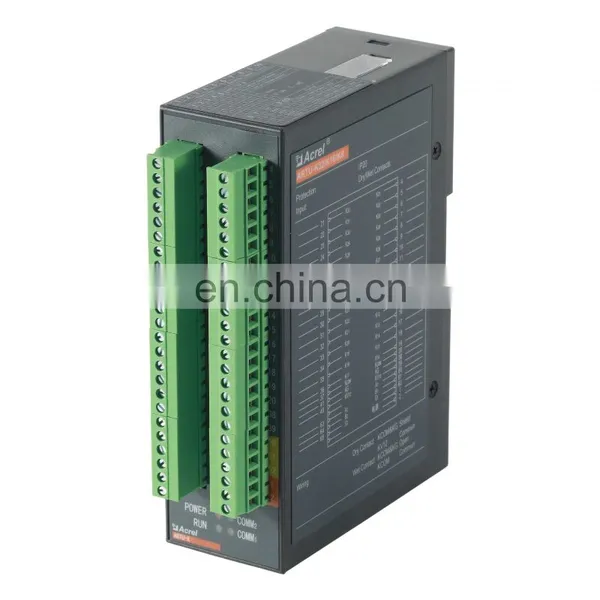

Acrel 300286.SZ ARTU-K32 Smart Power Distribution Used Remote Terminal Unit/RTU Rs485 Modbus-rtu
US$ 245 - 245
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ARTU-K32
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286.SZ Din Rail Mounting Remote Terminal Unit With Rs485 Modbus Rtu Recording Function ARTU-K32US$ 245 - 245MOQ: 1 Piece -
Acrel 300286.SZ ARTU-K32 Din Rail Data Exchange Remote Terminal Unit With Recording FunctionUS$ 245 - 245MOQ: 1 Piece
-
Acrel 300286.SZ ARTU-K32 RTU/remote Terminal Unit for Industrial Automation With RS485 Modbus-rtuUS$ 245 - 245MOQ: 1 Piece
-
Acrel 300286.SZ ARTU-K32 RTU/Remote Terminal Unit for Industrial Signal ControlingUS$ 245 - 245MOQ: 1 Piece
-
Acrel 300286.SZ ARTU-K32 RTU for SCADA System Remote Terminal Unit With Modbus-rtuUS$ 245 - 245MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ARTU-K32
Product Description

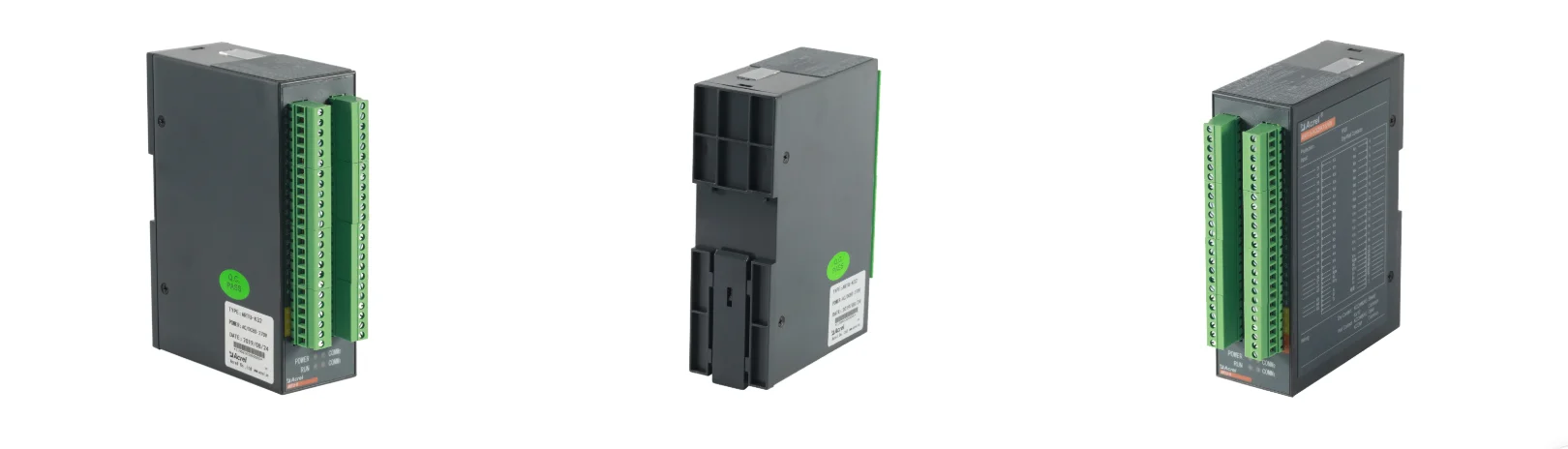

ARTU-K32 Series Remote Terminal Unit
General
ARTU distributed monitoring and control devices is a high-performance components used in intelligent power distribution, industrial automation, and other fields.Products include: remote control unit, remote signaling unit.It has a channel status light and a communication status light.It has two-way communication interface,one is used to set the general parameters
and commissioning,another is used to read and set the "four remote" value.Product’s address and baud rate can be set by PC and local DIP switch.Products using the software and hardware "watchdog" technology to prevent freezing.
The user's Guide applies to ARTU distributed monitoring and control devices
Features
● RS485 (MODBUS -RTU)
● channel state indicator and communication state indicator

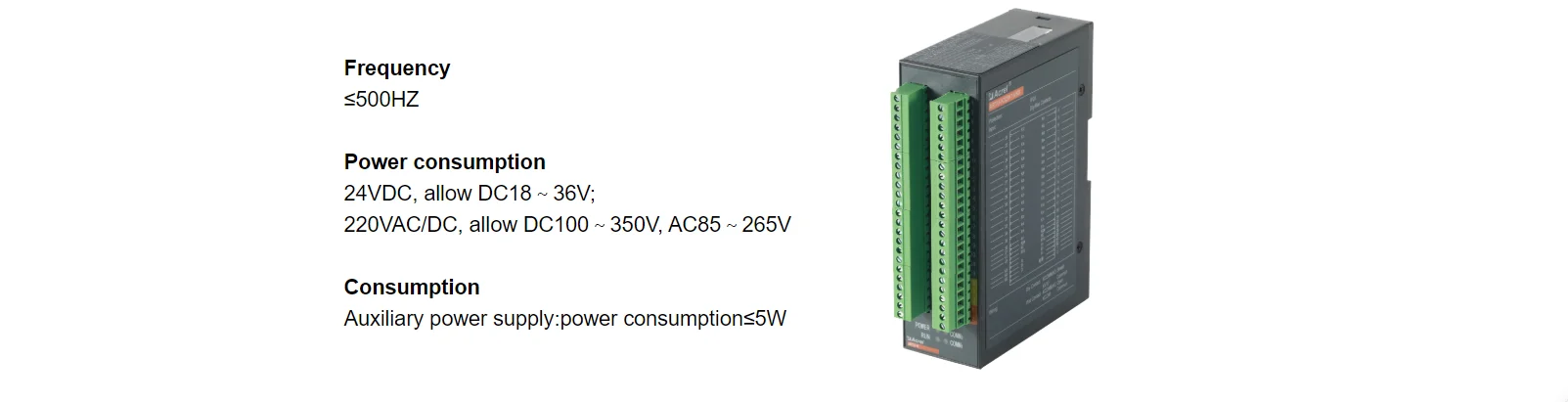

● 24VDC, range DC18~36V; 220VAC/DC, range AC85~265V, DC100~350V.
● channel state indicator and communication state indicator
● 24VDC, range DC18~36V; 220VAC/DC, range AC85~265V, DC100~350V.
Technical Parameters
Technical parameters | Values |
Number of inputs | 8/16/32 |
Input | Active wet contact（DC12V）or passive dry contact input |
Communications | RS485 port（Modbus RTU protocol），two-core shielded line |
Bus capacity | ≤32 |
Switch incident resolution | Ability to distinguish between multiple contact successive changes:When any two contacts displacement interval is greater than 1 ms,Ability to distinguish between cells (less than 2ms) can be reflected in the SOE. |
Signalling scanning speed | All channel scanning cycle time required is 1ms |
Remote signaling debounce time | All channels use the same debounce time: 1ms (can be set) |
number of sequence of events(SOE) | 1600 Groups |
Function

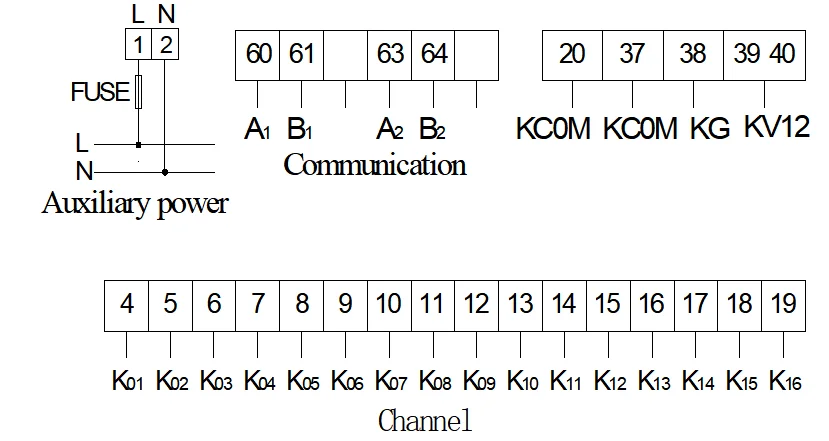

Wiring
Typical connection
