Acrel WHD20R-22 Digital Temperature and Humidity Controller used for terminal box CE

Name: Acrel WHD20R-22 Digital Temperature and Humidity Controller used for terminal box CE
Brand: Acrel
Price: USD $49 - 49 / Piece

FOB Price

USD $49 - $49 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Acrel	Place of Origin:	China	Model Number:	WHD20R-22
Temperature Range:	-40.0~+99.9℃	Accuracy:	Class 1

Packaging Details

Products are packed in carton box with air bubble fim

Product Description

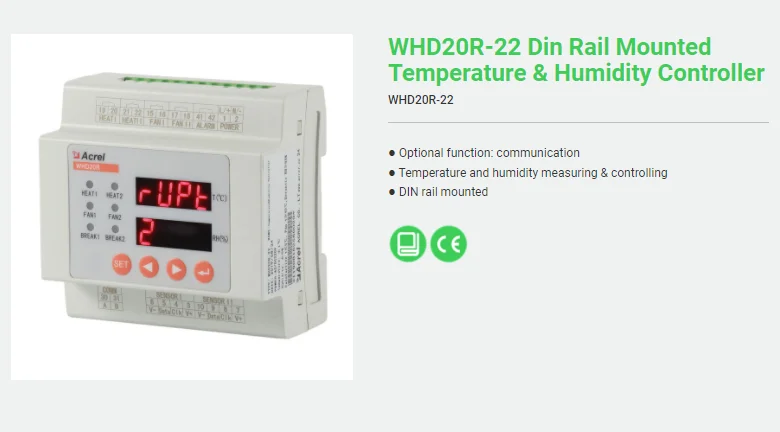

WHD20R-22 Temperature & Humidity Controller

General

WHD series smart temperature and humidity controller is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or flashover etc.from humidity or condensation.

Parameters

Technical Parameter		Value
Measuring Range	Temperature	-40.0℃~99.9℃
	Humidity	0%RH~99%RH
Precision	Temperature	±1℃
	Humidity	±5%RH
Transmitting Output		DC 4-20mA or DC 0~20mA
Set range of controlling parameter	Heating for Temperature rising	-40.0℃~40.0℃
	Blowing for temperature decreasing	0.0℃~99.9℃
	Humidity control	20%RH~90%RH
Output Contact Capacity		5A/AC250V
Start/stop gap		5
Communication port		RS485,MODBUS(RTU) treaty
Auxiliary Power	Voltage	AC/DC 85-265V
	Consumption	Basic power consumption(≤0.8w)+relay power consumption(each channel≤0.7w)
Insulation Resistanced		≥100MΩ
Power-frequency withstand voltage		power with shell,touchable metal parts/power with other terminal group 2kV/1 min(AC.RMS)
Average work time without stoppage		≥50000 hours
Working condition(controller)	Temperature	-20℃~+60℃
	Humidity	≤95%RH,without condensation and corrosive gas
	Altitude	≤2500m

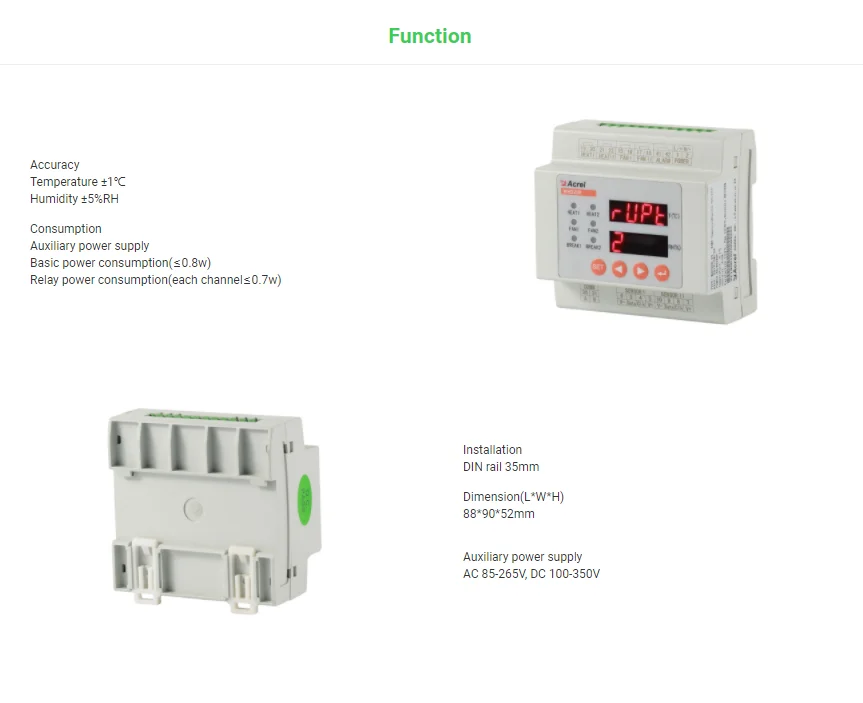

Demension

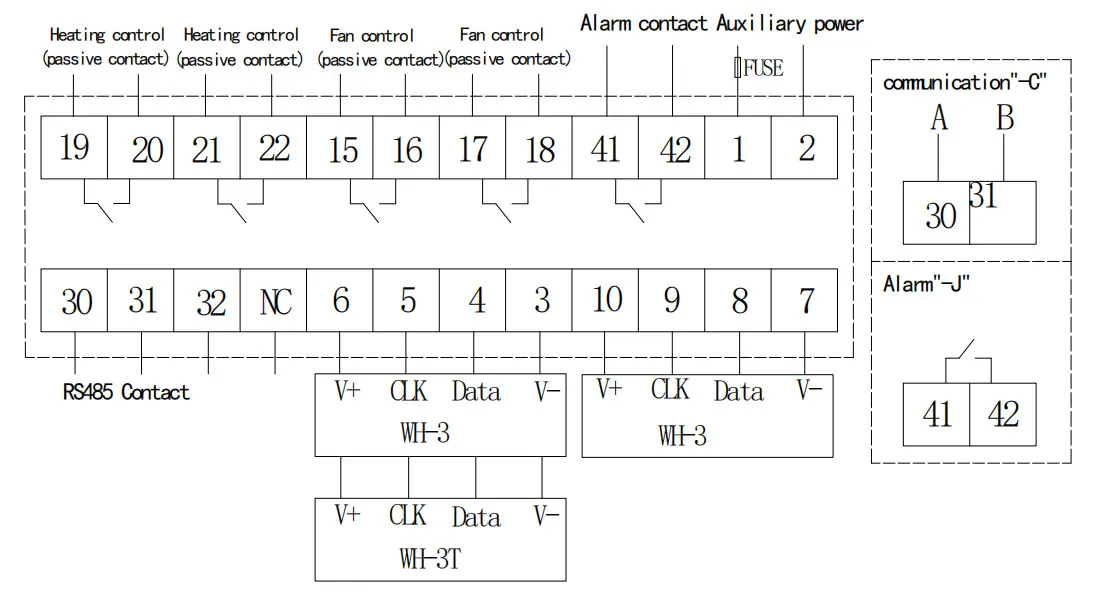

Wiring

Network

FAQ

Q: Connect users between the sensor and the controller,Can it be matched?How long is the length in meters?
A: The user can wire,but it is required to use a 4-core shielded wire,and a 2.5-meter shielded wire is attached to the factory.
The longest distance between the sesor and the controller is 20 meters.

Q: Can WHD Switch control manually and automatically?
A: Yes,but be sure to explain to the customer service before placing an order,it is an unnormal operation.

Q: User have their own sensor,can they buy a controller?
A: No,the sensor and controller need to be used together,2 device can not sold seperately.
