Home > Products > DIN Rail Energy Meter > Acrel 300286.SZ ADL100-ET/C Multi Functional Small Size Single Phase Rs485 Watt Hour Energy Meter
Acrel 300286.SZ ADL100-ET/C Multi Functional Small Size Single Phase Rs485 Watt Hour Energy Meter
US$ 41.3 - 41.3
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
Acrel 300286.SZ ADL100-ET 10(60)A AC 220v Single Phase Din Rail Energy Meter With Low Price
-
Acrel 300286.SZ ADL100-ET/C 10(60)A AC 220v Low Price Single Phase Din Rail Power Meter With Rs485 Modbus
-
Acrel DDSD1352 High Quality Single Phase Energy Meter Prepayment Inverter for Solar Cells 45kw
-
Acrel DDSD1352 Single Phase Energy Meter Calibrator for 12v Inverter rv Solar
-
Acrel DDSD1352 Single Phase Din Rail Energy Meter in Pakistan for Solar Power Inverter Batteries
-
Acrel DDSD1352 M-bus Single Phase Energy Meter for 100kw on Grid Solar Inverter With Battery
Product Details
| Brand Name | Acrel | Place of Origin | Jiangsu, China | |
| Model Number | ADL100-ET/C | Phase | Single Phase | |
| Output Voltage | Pulse output | Operating Temperature | -25℃~55℃ | |
| Dimensions | 36*88*70mm | Display Type | Analog and Digital | |
| Accuracy Class | Class1 | Measuring Energy Range | 0-999999.99kwh |
Product Description
Product Description

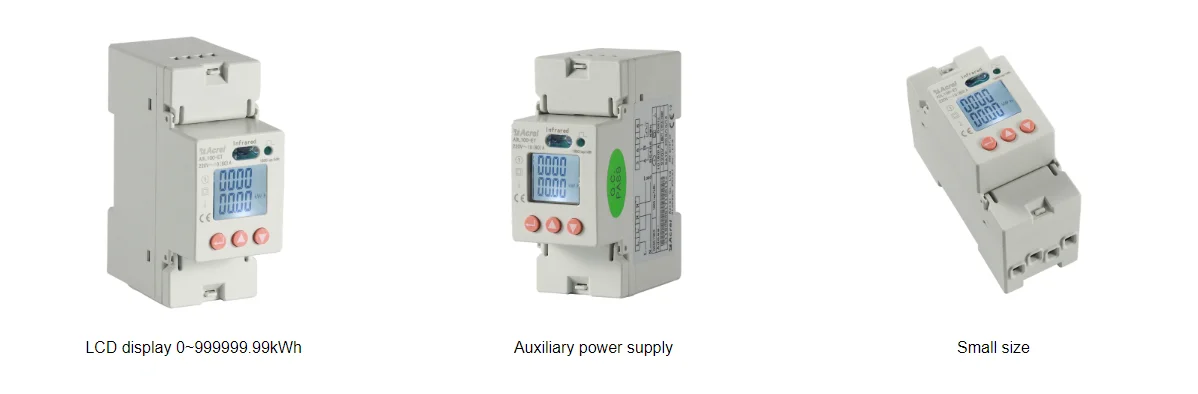

ADL100-ET Single Phase Multi-Function Energy Meter
ADL100-ET Single Phase Multi-Function Energy Meter
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features
● AC220V
● 10（60）A，20（100）A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 1

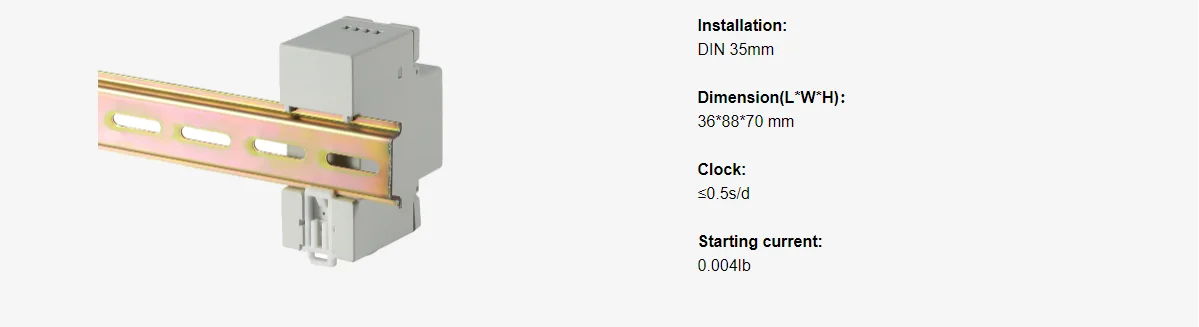

● DIN 35 mm
● 10（60）A，20（100）A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 1
● DIN 35 mm

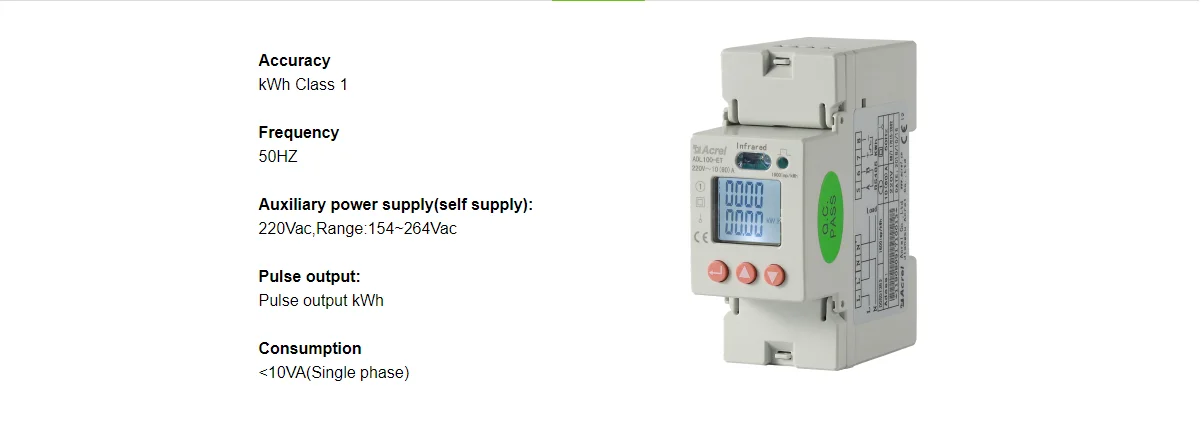

Technical Parameters
Voltage | Reference voltage | AC 220V | ||||
Reference frequency | 45-65 Hz | |||||
Consumption | <10VA( Single phase) | |||||
Current | Maximum | 60A | ||||
Starting current | 0.004 Ib | |||||
Consumption | <4VA(Maximum current) | |||||
Measurement performance | Accuracy of active kWH | Class 1 | ||||
Standards complicant | IEC 62053-21:2003 | |||||
Pulse | Pulse width | 80+20 ms | ||||
Pulse constant | 3200 imp/kWH | |||||
Communication | Interface | RS485 | ||||
Protocol | Modbus-RTU | |||||
Outling | L*W*H(mm) | 36*88*70 | ||||
Environment | Temperature | Operating:-25℃~55℃；Storage:-40℃~70℃ | ||||
Humidity | ≦95% (No condensation) | |||||
Altitude | <2000m | |||||

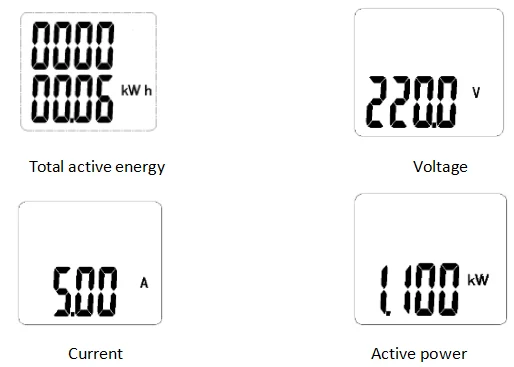

LCD Display

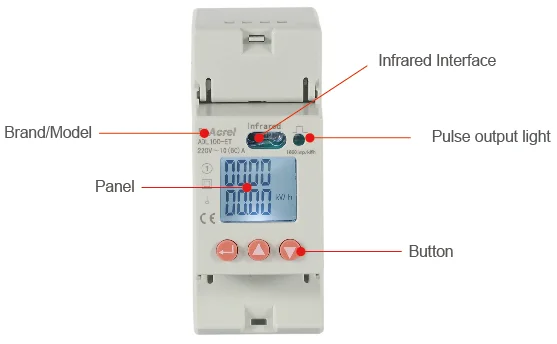

Function
Wiring
Typical connection
Detailed Information
