Acrel Low Voltage Din Rail Wireless Energy Meters ADW300-LR/C

Name: Acrel Low Voltage Din Rail Wireless Energy Meters ADW300-LR/C
Brand: Acrel
Availability: InStock

FOB Price

US$ 124 - 124 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Parameters

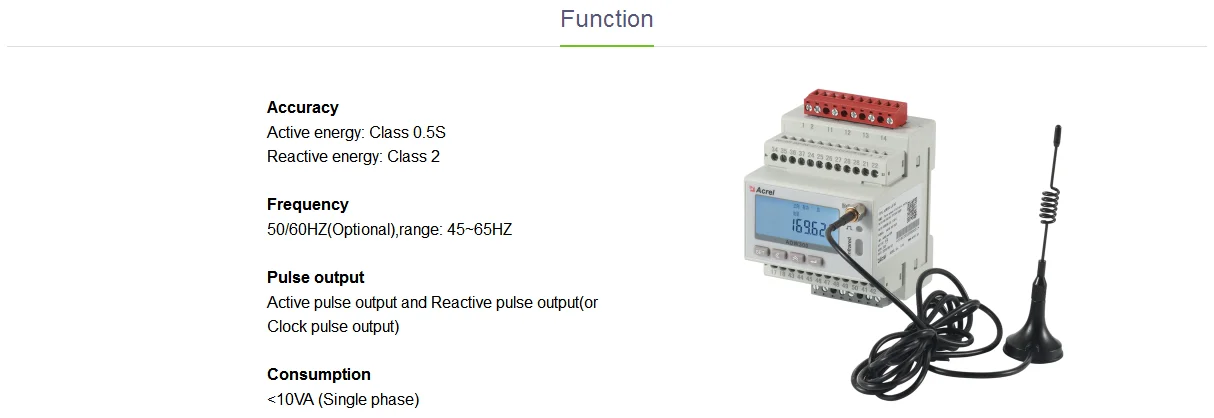

Functions

Three phase voltage, current, frequency, three phase power , total power( active , reactive, apparent);

Voltage and current phase angle, voltage and curent imbalance;

Voltage, current total harmonic and 2ne-31st harmonic;

Record of exterme values of voltage , current and power in current month and last month;

Maximum current, power demand and real-time current, power demand;

Via current transformer , supports common current transformer access.

3 open type mA current transformers as standard, which can bu used as 5A(secondary transformer) and 100A input.
