Home > Electrical & Electronics > Sensor > Pressure Sensor > Hall Effect Flow Sensor DC Current Transformer Voltage Sensor Input 0-500A Output DC4-20mA ACREL Factory Direct.SZ

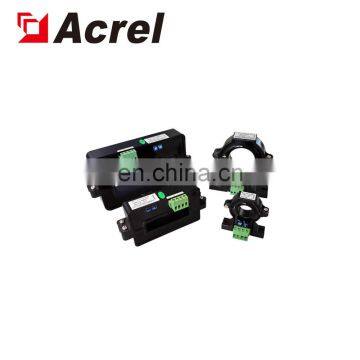

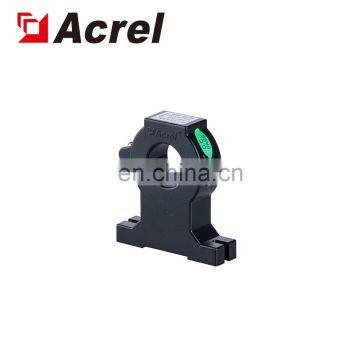

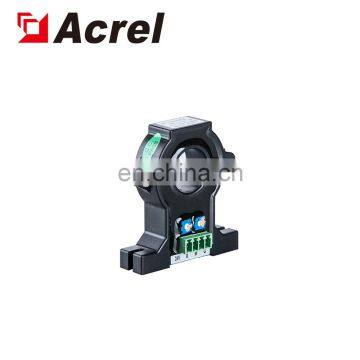

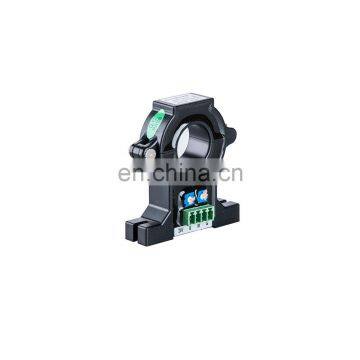

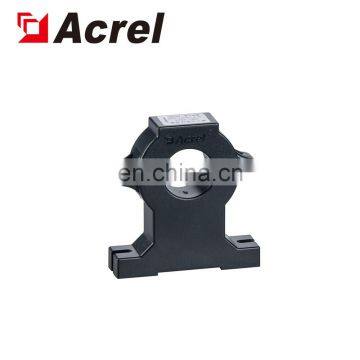

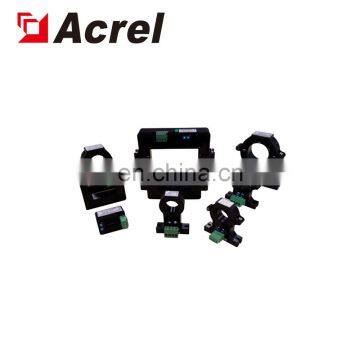

Hall Effect Flow Sensor DC Current Transformer Voltage Sensor Input 0-500A Output DC4-20mA ACREL Factory Direct.SZ
US$ 10.5 - 10.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AHKC-EKAA
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DC Hall Effect Leakage Current Sensor for Battery ApplyUS$ 9.8 - 9.8MOQ: 1 Piece -
Acrel ACTDS-DV Hall Effect DC Voltage Sensor Transducer Transmitter Input 100-1500V Output 4-20mA/5VUS$ 51.8 - 51.8MOQ: 1 Piece
-
Acrel ACTDS-DV dc Digital Voltage Sensor / Voltage Transformer Photoelectric Isolation Input dc 100-1500V Output 4-20mA/5VUS$ 51.8 - 51.8MOQ: 1 Piece
-
Acrel ACTDS-DV dc 0-100-1500V Input Direct Current Voltage Isolator / dc Voltage Transducer With 4-20mA/5V Signal OutputUS$ 51.8 - 51.8MOQ: 1 Piece
-
dc Output 5V Leak Hall Effect Current Sensor With High Load CapacityUS$ 9.1 - 9.1MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AHKC-EKAA
Outline and size
Instrument type | length | width | height |
AKHC-EKA | 60 | 64 | 16 |
Attention:
1. When the hall sensor is used, in order to obtain better dynamic characteristics and sensitivity, attention must be paid to the coupling between the primary side coil and the secondary side coil. It is recommended to use a single wire and the wire completely fills the hall sensor module wire hole;
2. When the hall sensor is used, the best measurement accuracy can be obtained under the rated input current value. When the measured current is far lower than the rated current To obtain the best accuracy, multiple turns can be used for the primary side, i.e. IPNP = rated ampere turns. In addition, the temperature of the primary side feeder shall not exceed 80 ℃;
3. The auxiliary power supply of Hall current sensor shall not exceed ± 20% of the calibrated value when it works normally;
4. Hall current sensor shall not fall from a high place (≥ 1m) during installation and use;
5. It is unable to adjust the zero point and full degree adjustment potentiometer;
6. Auxiliary power supply needs to be configured by itself;
7. The positive and negative poles of the power supply cannot be reversed.
