Home > Products > MINIATURE BALL BEARING > METRIC SERIES BEARING MANUFACTURER MR52ZZ/MR62ZZ/MR63ZZ/MR74ZZ/MR85ZZ/MR106ZZ/MR117ZZ/MR128ZZ MINIATURE BALL BEARING
METRIC SERIES BEARING MANUFACTURER MR52ZZ/MR62ZZ/MR63ZZ/MR74ZZ/MR85ZZ/MR106ZZ/MR117ZZ/MR128ZZ MINIATURE BALL BEARING
US$ 0.17 - 0.36
/ Piece
100 Pieces(Min. Order)
- XIAMEN
- T/T Credit Card
You May Like
-
Bearing Manufacturer 684 TN9 7 Balls Miniature Ball Bearing
-
Fingerboard Bearing Manufacturer 1x3x1mm 681 Miniature Ball Bearing
-
High Precision Miniature Ball Bearing L840ZZ MR84ZZ 4*8*3 Electric Toothbrush Ball Bearing
-
Fishing Reel Ball Bearing L740ZZ MR74ZZ Miniature Deep Groove Ball Bearing
-
ISO9001:2015 Small Structure Ball Bearing L840ZZ MR84ZZ 4*8*3 Electric Toothbrush Ball Bearing
-
ISO9001:2015 Bearing Ball Bearing Manufacturer 684zz Miniature Bearing
Product Details
| Place of Origin | Fujian, China | Model Number | MR52ZZ/MR62ZZ/MR63ZZ/MR74ZZ | |
| Number of Row | Single Row | Seals Type | OPEN | |
| Precision Rating | ABEC-1,ABEC-3,ABEC-5 | Bore Size | 2, 15 |
Product Description
| ITEM | 688rs |
| bore diameter(d) | 8mm |
| outside diameter(D) | 16mm |
| Width(B) | 5mm |
| TYPE | zz or rs |
| MATERIAL | Gcr15(Chrome steel) |
| GREASE | |
| MEMO | widely used in fishing reel |

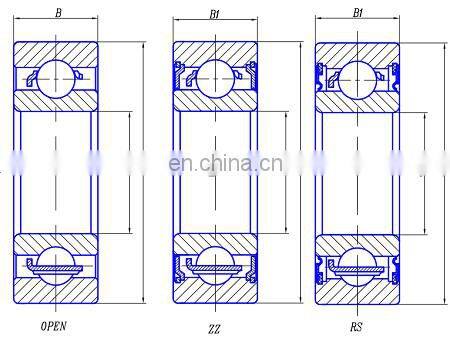

| ITEM | shape dimension | ||||||
| Bore Diameter | Outer Diameter (D) | Flange outer Diameter | width for open bearing | flanged Width for open bearing | width for shield bearing | flanged Width for open bearing | |
| d | D | Df/Df1 | B | Bf | B1 | Bf1 | |
| 682zz | 2 | 5 | 6.1 | 1.5 | 0.2 | 2.3 | 0.6 |
| MR52zz | 5 | 6.2 | 2 | 0.6 | 2.5 | 0.6 | |
| 692zz | 6 | 7.5 | 2.3 | 0.6 | 3 | 0.8 | |
| MR62zz | 6 | 7.2 | 2.5 | 0.6 | |||
| MR72zz | 7 | 8.2 | 2.5 | 0.6 | 3 | 0.6 | |
| 602zz | 7 | 8.5 | 2.8 | 0.7 | 3.5 | 0.9 | |
| 682Xzz | 2.5 | 6 | 7.1 | 1.8 | 0.5 | 2.6 | 0.8 |
| 692Xzz | 7 | 8.5 | 2.5 | 0.7 | 3.5 | 0.9 | |
| 8 | 9.2 | 2.5 | 0.6 | 2.5 | |||
| 602Xzz | 8 | 9.5 | 2.8 | 0.7 | 4 | 0.9 | |
| MR63zz | 3 | 6 | 7.2 | 2 | 0.6 | 2.5 | 0.6 |
| 683zz | 7 | 8.1 | 2 | 0.5 | 3 | 0.8 | |
| MR83zz | 8 | 9.2 | 2.5 | 0.6 | |||
| 693zz | 8 | 9.5 | 3 | 0.7 | 4 | 0.9 | |
| MR93zz | 9 | 10.2 | 2.5 | 0.6 | 4 | 0.8 | |
| 603zz | 9 | 10.5 | 3 | 0.7 | 5 | 1 | |
| 623zz | 10 | 11.5 | 4 | 1 | 4 | 1 | |
| MR74zz | 4 | 7 | 8.2 | 2 | 0.6 | 2.5 | 0.6 |
| MR84zz | 8 | 9.2 | 2 | 0.6 | 3 | 0.6 | |
| 684zz | 9 | 10.3 | 2.5 | 0.6 | 4 | 1 | |
| MR104zz | 10 | 11.2 | 3 | 0.6 | 4 | 0.8 | |
| 694zz | 11 | 12.5 | 4 | 1 | 4 | 1 | |
| 604zz | 12 | 13.5 | 4 | 1 | 4 | 1 | |
| 624zz | 13 | 15 | 5 | 1 | 5 | 1 | |
| 634zz | 16 | 18 | 5 | 1 | 5 | 1 | |
| MR85zz | 5 | 8 | 9.2 | 2 | 0.6 | 2.5 | 0.6 |
| MR95zz | 9 | 10.2 | 2.5 | 0.6 | 3 | 0.6 | |
| MR105zz | 10 | 11.2 | 3 | 0.6 | 4 | 0.8 | |
| MR115zz | 11 | 12.6 | - | ||||
| 685zz | 11 | 12.5 | 3 | 0.8 | 5 | 1 | |
| 695zz | 13 | 15 | 4 | 1 | 4 | 1 | |
| 605zz | 14 | 16 | 5 | 1 | 5 | 1 | |
| 625zz | 16 | 18 | 5 | 1 | 5 | 1 | |
| 635zz | 19 | 22 | 6 | 1.5 | 6 | 1.5 | |
| MR106zz | 6 | 10 | 11.2 | 2.5 | 0.6 | 3 | 0.6 |
| MR126zz | 12 | 13.2 | 3 | 0.6 | 4 | 0.8 | |
| 686zz | 13 | 15 | 3.5 | 1 | 5 | 1.1 | |
| 696zz | 15 | 17 | 5 | 1.2 | 5 | 1.2 | |
| 606zz | 17 | 19 | 6 | 1.2 | 6 | 1.2 | |
| 626zz | 19 | 22 | 6 | 1.5 | 6 | 1.5 | |
| MR117zz | 7 | 11 | 12.2 | 2.5 | 0.6 | 3 | 0.6 |
| MR137zz | 13 | 14.2 | 3 | 0.6 | 4 | 0.8 | |
| 687zz | 14 | 16 | 3.5 | 1 | 5 | 1.1 | |
| 697zz | 17 | 19 | 5 | 1.2 | 5 | 1.2 | |
| 607zz | 19 | 22 | 6 | 1.5 | 6 | 1.5 | |
| 627zz | 22 | 25 | 7 | 1.5 | 7 | 1.5 | |
| MR128zz | 8 | 12 | 13.2 | 2.5 | 0.6 | 3.5 | 0.8 |
| MR148zz | 14 | 15.6 | 3.5 | 0.8 | 4 | 0.8 | |
| 688zz | 16 | 18 | 4 | 1 | 5 | 1.1 | |
| 698zz | 19 | 22 | 6 | 1.5 | 6 | 1.5 | |
| 608z | 22 | 25 | 7 | 1.5 | 7 | 1.5 | |
| 679zz | 14 | 3 | |||||
| 689zz | 9 | 17 | 19 | 4 | 1 | 5 | 1.1 |
| 699zz | 20 | 23 | 6 | 1.5 | 6 | 1.5 | |
| 609zz | 24 | 27 | 7 | 1.5 | 7 | 1.5 | |
| 6700zz | 15 | 16.5 | 3 | 0.8 | 4 | 0.3 | |
| 6800zz | 19 | 21 | 1 | 5 | |||
| 63800zz | 19 | 21 | 1.5 | 7 | |||
| 6900zz | 22 | 25 | 1.5 | 6 | |||

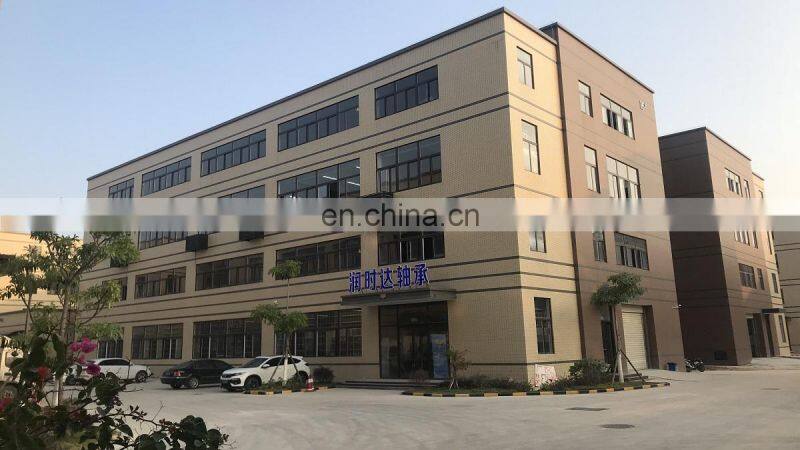

Established in 2007, Zhangzhou Runstar Bearings Manufacturing Co.,Ltd is a professional manufacturer of thrust ball bearing and miniature ball bearing in Zhangzhou,China. With a inner diameter from 2mm to 15mm for metric series and from 0.0781" to 0.375" for inch series , the material can be selected with chrome steel(Gcr15) or stainless steel(9Cr18) at your request, our characteristic products are thrust ball bearing with or without groove, miniature ball bearing,flange bearing and stainless steel bearing,as well as non-standard bearings, we have more than 12 year’s experience in supplying thrust ball bearing and miniature ball bearing for industries.
