Home > Products > Self Aligning Ball Bearing > 2322-M Ball Bearing Self Aligning Ball Bearing 2322 Size 110x240x80mm Bearing

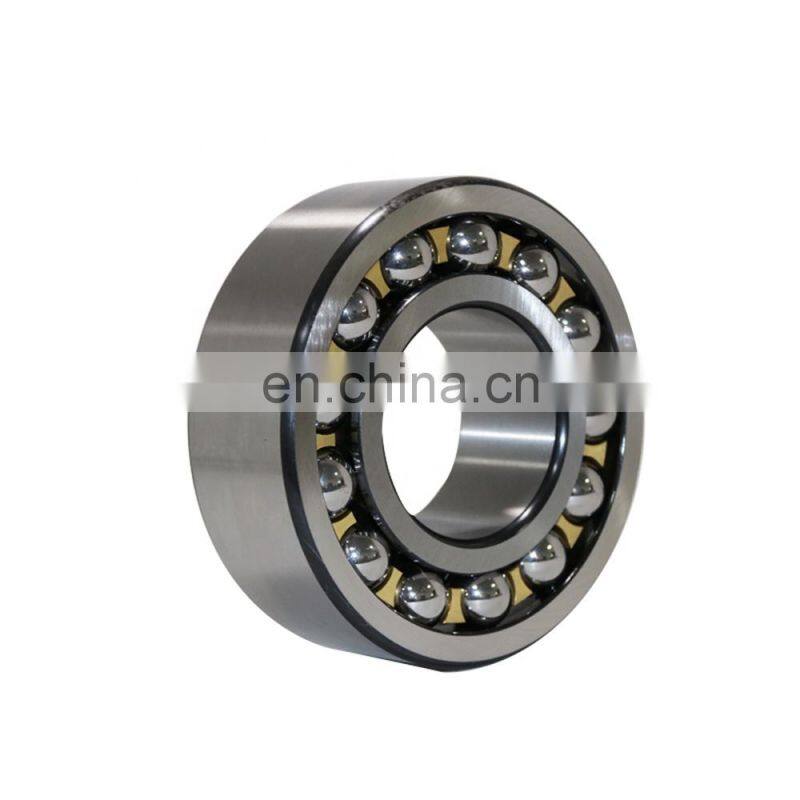

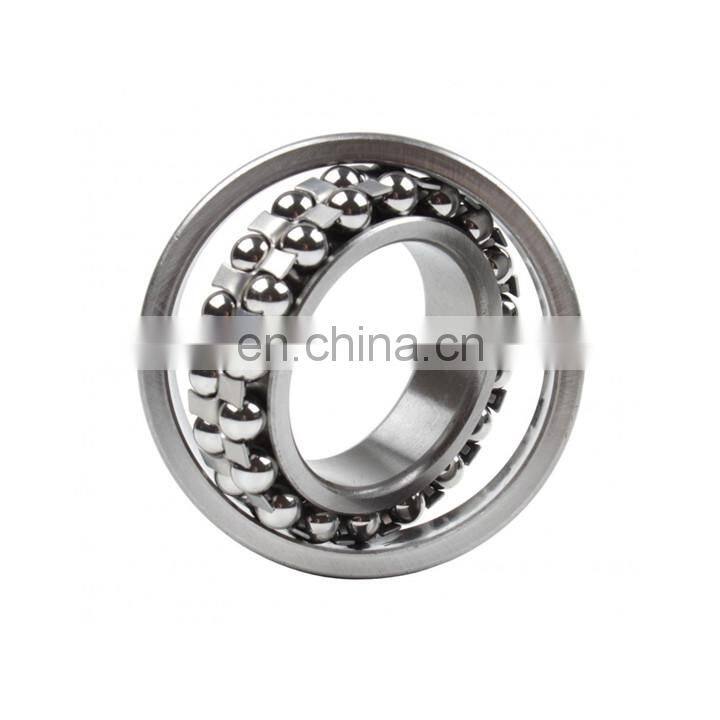

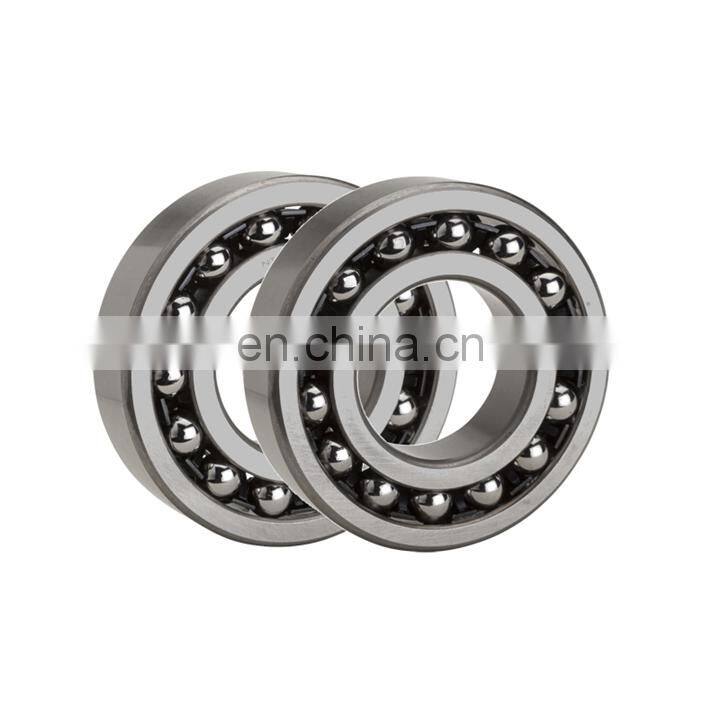

2322-M Ball Bearing Self Aligning Ball Bearing 2322 Size 110x240x80mm Bearing
- Guangdong Qingdao
- T/T Credit Card
You May Like
-
High Quality Best Price1200 Self Aligning Ball Bearing 1200 ETN9 Size 10x30x9mm Nsk Brand With Cutless Bearing
-
Good Quality Big Stock 1201 Self Aligning Ball Bearing 1201 ETN9 Size 12x32x10mm With Nsk Bearing Price List
-
Good Quality High Speed Self Aligning Ball Bearing 1202 Size 15x35x11mm Famous Brand Nsk Koyo Online Bearings
-
Factory Supply High Quality Famous Brand Self Aligning Ball Bearing 1203 ETN9 Size 17x40x12mm Koyo Brand Ceramic Bearings
-
High Precision Fast Speed Famous Brand Self Aligning Ball Bearing 1204 Size 20*47*14mm 1204 ETN9 With Ceramic Bearings
-
High Quality Self Aligning Ball Bearing 1205 Ceramic Ball Bearing 1205 ETN9/EKTN9 With Gearbox Bearing
Product Details
| Brand Name | BHR, OEM | Place of Origin | Shandong, China | |
| Model Number | 2322M | Number of Row | Double Row | |
| Seals Type | open bearing | Precision Rating | P0 P6 P5 P4 precision bearing |
Product Description
2322-M ball bearing self aligning ball bearing 2322 size 110x240x80mm
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed.
This type of ball bearing is recommended when alignment of the shaft and housing is difficult and the shaft may flex. The outer ring has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing center. Pressed steel cages are usually used. Since the contact angle is small, the axial load capacity is low. The permissible dynamic misalignment is approximately 0.07 to 0.12 radian (4 to 7 degrees) under normal loads.
Principal Dimensions: 2322 self aligning ball bearing 2322M | |
Bearing bore size | 110mm |
Bearing outer diameter | 240mm |
Bearing thickness | 80mm |
Bearing weight | 18.1kg |
Bearing features: | |
Bearing number of row | double row self aligning ball bearing |
Bearing material | steel bearing, chrome steel bearing |
Bearing cage type | brass cage bearing |
Bearing bore type | cylindrical bore |
Double row self aligning ball bearings size catalogue list:
| Cylindrical bore | Tapered bore | d (mm) | D (MM) | B(mm) | Mass(kg) |
| 2207 ETN9 | 2207 EKTN9 | 35 | 72 | 23 | 0,4 |
| 1307 ETN9 | 1307 EKTN9 | 35 | 80 | 21 | 0,51 |
| 2307 ETN9 | 2307 EKTN9 | 35 | 80 | 31 | 0,68 |
| 1208 ETN9 | 1208 EKTN9 | 40 | 80 | 18 | 0,42 |
| 2208 ETN9 | 2208 EKTN9 | 40 | 80 | 23 | 0,51 |
| 1308 ETN9 | 1308 EKTN9 | 40 | 90 | 23 | 0,68 |
| 2308 ETN9 | 2308 EKTN9 | 40 | 90 | 33 | 0,93 |
| 1209 ETN9 | 1209 EKTN9 | 45 | 85 | 19 | 0,47 |
| 2209 ETN9 | 2209 EKTN9 | 45 | 85 | 23 | 0,55 |
| 1309 ETN9 | 1309 EKTN9 | 45 | 100 | 25 | 0,96 |
| 2309 ETN9 | 2309 EKTN9 | 45 | 100 | 36 | 1,25 |
| 1210 ETN9 | 1210 EKTN9 | 50 | 90 | 20 | 0,53 |
| 2210 ETN9 | 2210 EKTN9 | 50 | 90 | 23 | 0,6 |
| 1310 ETN9 | 1310 EKTN9 | 50 | 110 | 27 | 1,2 |
| 2310 | 2310K | 50 | 110 | 40 | 1,65 |
| 1211 ETN9 | 1211 EKTN9 | 55 | 100 | 21 | 0,71 |
| 2211 ETN9 | 2211 EKTN9 | 55 | 100 | 25 | 0,81 |
| 1311 ETN9 | 1311 EKTN9 | 55 | 120 | 29 | 1,6 |
| 2311 | 2311K | 55 | 120 | 43 | 2,1 |
