Home > Products > Tapered Roller Bearing > Usa Origin Car Engine Used Cone Cup Assembly 34300/34478 Inch Tapered Roller Bearing 34300 34478

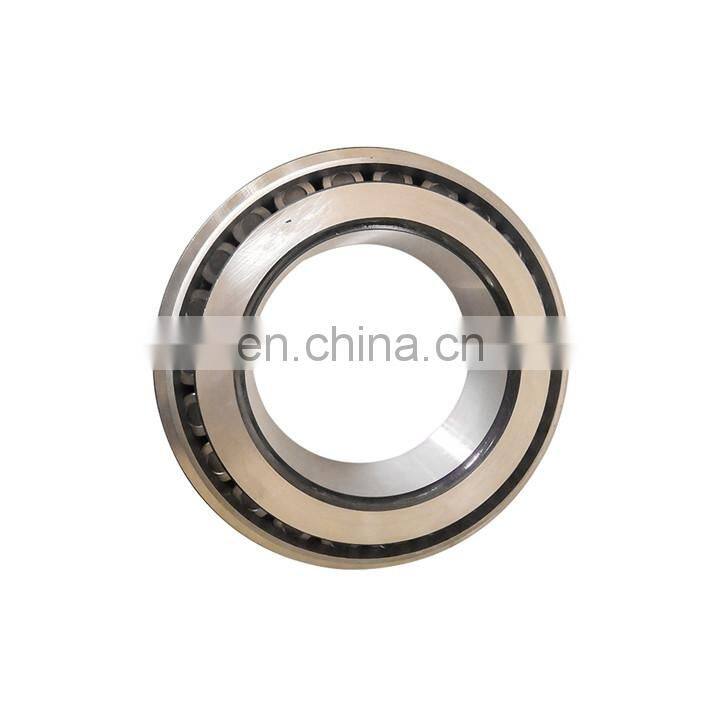

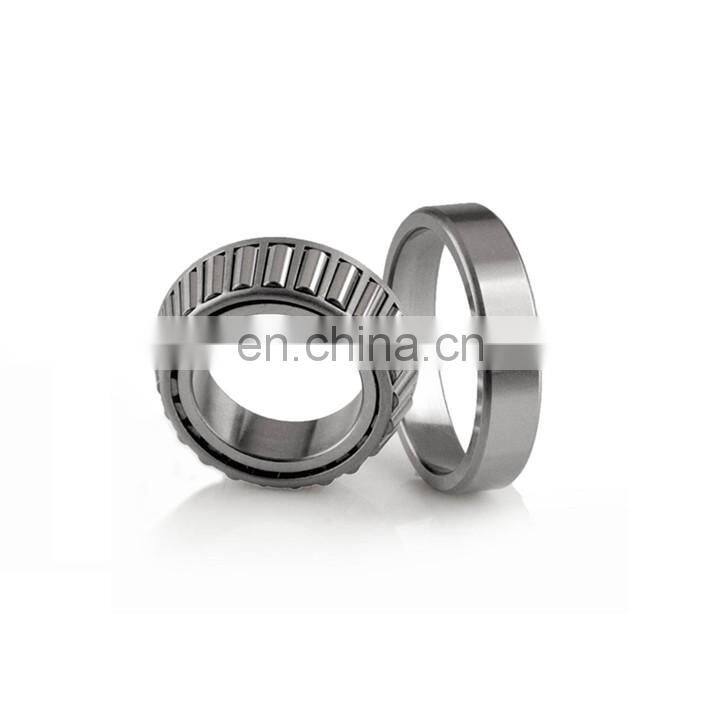

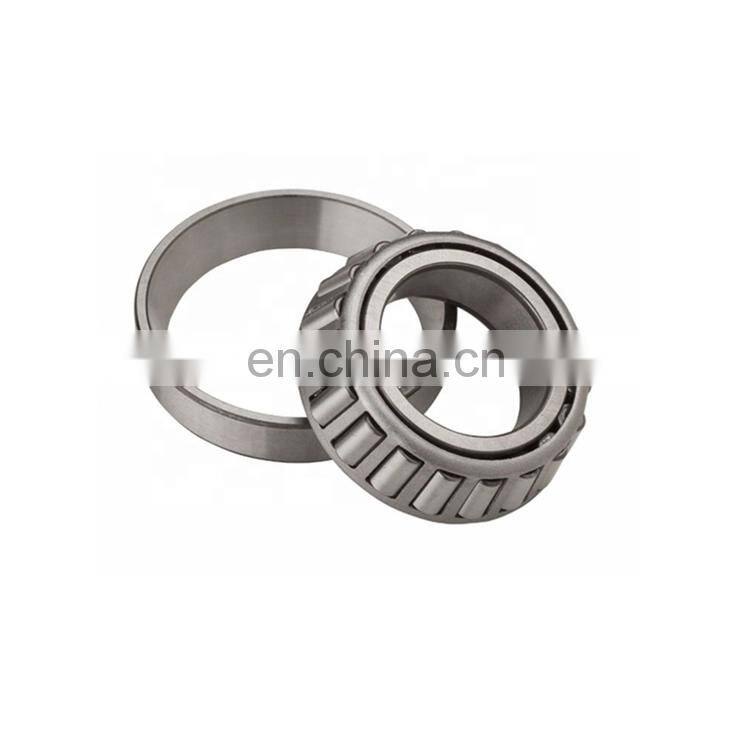

Usa Origin Car Engine Used Cone Cup Assembly 34300/34478 Inch Tapered Roller Bearing 34300 34478
- Guangdong Qingdao
- T/T Credit Card
You May Like
-
Planetary Mixer Shaft Accessory 78238 78537 78250 78255D Inch Tapered Roller Bearing Bearings
-
China Wholesale Price Sealed Type Single Cone Timken L44600LA-902A1 Inch Tapered Roller Bearing L44643/L44610
-
Train Axle Repair Kit 67790/67720CD Double Row Tapered Roller Bearing Timken Bearings 67790 67720CD 67720
-
China Wholesale Timken Bearing Sets SET230 Inch Tapered Roller Wheel Bearing Price 2788/2720 2788/2720B
-
Import Original Usa Brand Inch Series Train Axle 52400D/52638 Double Cone Tapered Roller Bearing 52400 52387 52638
-
Train Tapered Roller Bearing 353130B CTBU150 353130A 353130X2-2RZ 353130-2RS TBU150 TAROL150 AP150 352226X2-2RZ Rodamientos
Product Details
| Brand Name | BHR, OEM | Place of Origin | Shandong, China | |
| Model Number | 34300/34478 | Number of Row | Single Row | |
| Seals Type | Open | Precision Rating | P0 P6 P5 P4 |
Product Description
usa origin car engine used cone cup assembly 34300/34478 inch tapered roller bearing 34300 34478
Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Benefits:
Enhanced performance in demanding applications.
34300/34478 tapered roller bearing is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Specification: 34300/34478 inch tapered roller bearing | |
Series | inch series |
Roller bearing types | taper roller bearing |
Bearing number of row | single row |
Precision rate | grade p4 p5 p6 p0 abec5 |
Bearing cage type | stamped steel cage |
Cone part number | 34300 bearing cone |
Cup part number | 34478 bearing cup |
Dimensions: | |
d - Bore | 76.2mm |
D - Cup outer diameter | 121.442mm |
B - Cone width | 23.012mm |
C - Cup width | 17.463mm |
T - Bearing width | 24.608mm |
Weight | 1.00kgs |
inch series tapered roller bearing size chart:
| Model | d(mm) | D(mm) | T(mm) | |
| HM535349 | HM535310 | 171.45 | 260.35 | 66.675 |
| 67787 | 67720 | 174.625 | 247.65 | 47.625 |
| 67786 | 67720 | 174.625 | 247.65 | 47.625 |
| M236845 | M236810 | 174.625 | 260.35 | 53.975 |
| 94687 | 94113 | 174.625 | 288.925 | 63.5 |
| EE219068 | 219117 | 174.625 | 298.45 | 82.55 |
| EE219068 | 219122 | 174.625 | 311.15 | 82.55 |
| H238148 | H238110 | 174.625 | 311.15 | 82.55 |
| LL735449 | LL735410 | 177.8 | 215.9 | 20.638 |
| 67790 | 67720 | 177.8 | 247.65 | 47.625 |
| 67791 | 67720 | 177.8 | 247.65 | 47.625 |
| M236849 | M236810 | 177.8 | 260.35 | 53.975 |
| M236848 | M236810 | 177.8 | 260.35 | 53.975 |
| M238840 | M238810 | 177.8 | 269.875 | 55.562 |
| 94700 | 94113 | 177.8 | 288.925 | 63.5 |
| HM237545 | HM237510 | 177.8 | 288.925 | 63.5 |
| 94700 | 94118 | 177.8 | 298.45 | 63.5 |
| H239640 | H239610 | 177.8 | 319.964 | 88.9 |
| H239640 | H239612 | 177.8 | 320.675 | 88.9 |
| EE470078X | 470128 | 177.8 | 327.025 | 90.488 |
| EE470078X | 470130 | 177.8 | 330.2 | 90.488 |
| EE470073 | 470130 | 177.8 | 330.2 | 90.488 |
| EE470073 | 470132 | 177.8 | 336.55 | 90.488 |
| EE780705 | 781400 | 177.8 | 355.6 | 61.912 |
| EE420701 | 421417 | 177.8 | 360 | 92.075 |
| EE420701 | 421437 | 177.8 | 365.049 | 92.075 |
| EE420701 | 421450 | 177.8 | 368.3 | 92.075 |
| EE350701 | 351687 | 177.8 | 428.625 | 106.362 |
| 93708 | 93125 | 179.975 | 317.5 | 63.5 |
| JM736149 | JM736110 | 180 | 250 | 47 |
| JM736149A | JM736110 | 180 | 250 | 47 |
| LM236749 | LM236710 | 184.15 | 234.95 | 34 |
| LM236749 | LM236710A | 184.15 | 235.229 | 34 |
| LL537649 | LL537610 | 184.15 | 236.538 | 26.193 |
| 67883 | 67820 | 184.15 | 266.7 | 47.625 |
| 67884 | 67820 | 187.325 | 266.7 | 47.625 |
| M238849 | M238810 | 187.325 | 269.875 | 55.562 |
| 87737 | 87111 | 187.325 | 282.575 | 50.8 |
| H239649 | H239612 | 187.325 | 320.675 | 88.9 |
| JM738249 | JM738210 | 190 | 260 | 46 |
| JM238848 | M238810 | 190 | 269.875 | 55.563 |
| 67886 | 67835 | 190.078 | 289.992 | 46 |
| 67885 | 67820 | 190.5 | 266.7 | 47.625 |
| 87750 | 87111 | 190.5 | 282.575 | 50.8 |
| 82788 | 82722 | 190.5 | 284.162 | 55.562 |
| 82788 | 82720 | 190.5 | 288.925 | 55.562 |
| 93750 | 93125 | 190.5 | 317.5 | 63.5 |
| EE470075 | 470128 | 190.5 | 327.025 | 90.488 |
| EE210753 | 211300 | 190.5 | 330.2 | 63.5 |
| EE470075 | 470132 | 190.5 | 336.55 | 90.488 |
| HH840249 | HH840210 | 190.5 | 336.55 | 98.425 |
Tapered roller bearings application in automotive cars:
