China Supplier 581D/572 Inch Series Tapered Roller Bearing Double Row

FOB Price

US$ 28 - 28 / Piece

5 Pieces(Min. Order)

Port Shandong or other ports
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BHR, OEM	Place of Origin	Shandong, China
Model Number	581D/572	Number of Row	Double Row
Seals Type	Open	Precision Rating	P0 P6 P5 P4

Product Description

China supplier 581D/572 inch series tapered roller bearing double row

Product Description

Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

Industries:

Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:

Enhanced performance in demanding applications.

TDI (Tapered Double Inner) bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.

Specification:
Series	575
Cone part number	581D
Cup part number	572
Bearing weight	5Kg
Dimensions:
d - Bore	80.963 mm
D - Cup outer diameter	139.992 mm
B - Cone width	80.134 mm
C - Cup width	28.575 mm
T - Bearing width	80.963 mm

Tapered roller bearing catalogue

Bearing	Specification			Rated Load(KN)		Speed(r/min)		Weight
No.	d(mm)	D(mm)	W(mm)	Cr(N)	Cor(N)	Grease	Oil	kg
30202	15	35	11.75	15.8	14.4	22000	28000	0.053
30203	17	40	13.25	21.2	21.3	19000	27000	0.075
30204	20	47	15.25	28.2	30.6	22000	28000	0.126
30205	25	52	16.25	29.4	22.54	20000	25000	0.157
30206	30	62	17.25	45.4	50.5	18000	24000	0.231
30207	35	72	18.25	56.8	63.5	20000	25000	0.331
30208	40	80	19.75	63	74	17000	22000	0.422
30209	45	85	20.75	71.3	83.8	16000	22000	0.474
30210	50	90	21.75	73.3	92.1	17000	22000	0.53
30211	55	100	22.75	94.6	112.8	15000	20000	0.712
30212	60	110	23.75	103.3	130	14000	19000	0.904
30213	65	120	24.75	120.6	152.6	15000	20000	1.13
30214	70	125	26.25	138.3	173.7	13000	18000	1.261
30215	75	130	27.25	138.4	185.4	12000	16000	1.36
30216	80	140	28.25	167.7	212.9	13000	18000	1.675
30217	85	150	30.5	177.6	236.8	11000	16000	2.06

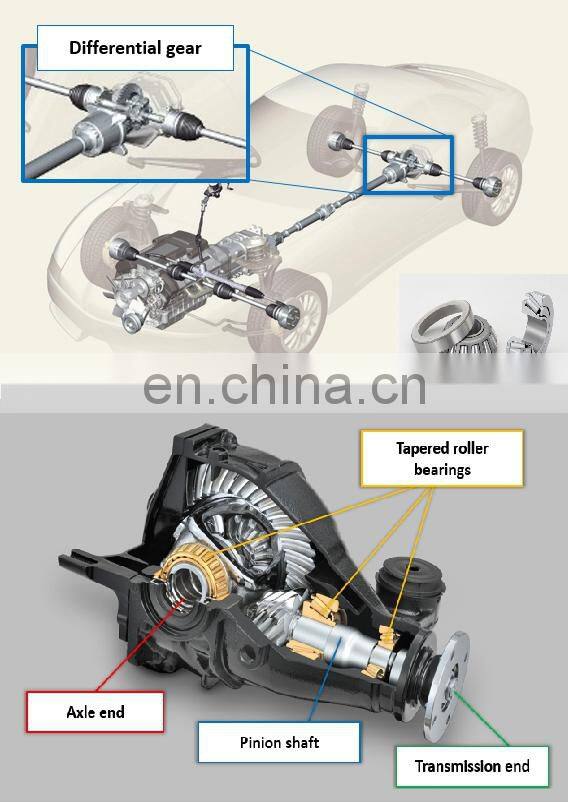

Automotive bearing gearbox bearing tapered roller bearing
