Y3 Series Three Phase Asynchonous 1 hp Induction Motor
US$ 70 - 100
/ Piece
1 Piece(Min. Order)
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Julante or OEM brand | Place of Origin | Zhejiang, China | |
| Model Number | Y3 |
Product Description
Company Profile
Taizhou Julante Electromechanical Tenchnology Co.,Ltd,
is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of
three phase ac electric motor ,single phase ac electric motor ,internal concrete vibrator ,external concrete vibrator ,air compressor ,water pump motor , Cutting machine,welding machine, grinder,ect.
Products Description

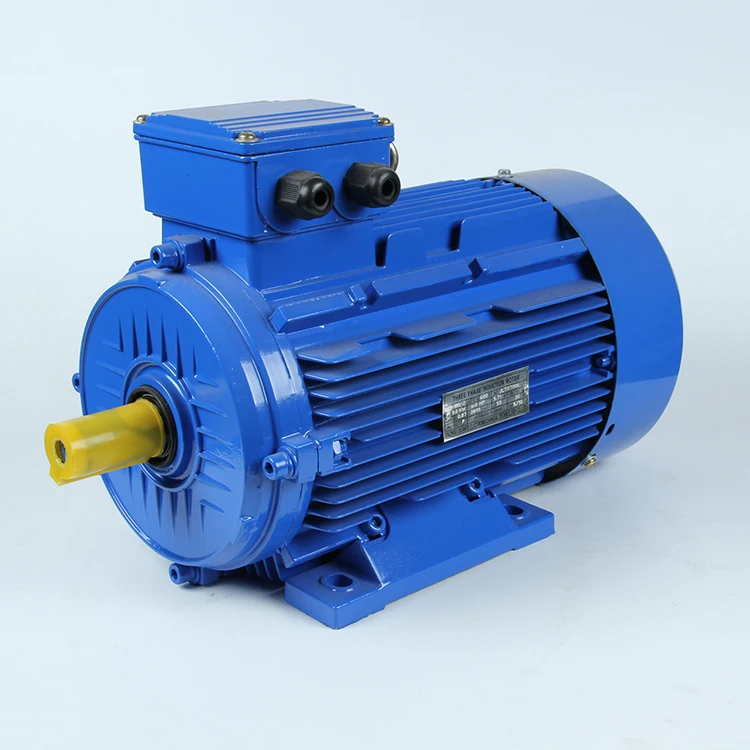

1 hp induction motor
Y3 series three-phase asynchronous motors. developed with new techniques. Aluminium body.
Y3series motors are defined as totally enclosed. fan cooled, squirrel cage type and noted for their novel design. beautiful model, compact structure, low noise. high efficiency, large torque, excellent starting performance. Easy serving , etc. The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice, it have greatly reached an international advanced level of the same kind of products at the initial days of the 90s.
Y3 series motors can be widely used as driving equipments of various machineries , such as machine tools. Blowers pumps, compressors, transporters, agricultural and food processing. Pedestal installation size and centre height and other indexes of the motor completely measured by Y3 series three-phase asynchronous motor.
Y3series motors are defined as totally enclosed. fan cooled, squirrel cage type and noted for their novel design. beautiful model, compact structure, low noise. high efficiency, large torque, excellent starting performance. Easy serving , etc. The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice, it have greatly reached an international advanced level of the same kind of products at the initial days of the 90s.
Y3 series motors can be widely used as driving equipments of various machineries , such as machine tools. Blowers pumps, compressors, transporters, agricultural and food processing. Pedestal installation size and centre height and other indexes of the motor completely measured by Y3 series three-phase asynchronous motor.
OPERATION CONDITIONS: | ||||||
Duty: | S1 | Protection class: | IP44, IP54, IP55 | |||
Frequency: | 50/60HZ | Cooling method: | IC0141 | |||
Rated voltage: | 380/415V | Ambient temperature: | -15°C-45°C | |||
Alititude should be lower than 1000 meters above sea level | ||||||
Product Parameters
Rated voltage: 380/660v
Frequency: 50Hz, 60Hz
Protection class: IP54
Insulation class: B,or F
Materials: cast iron(63-355), aluminum (FRAME 63-160)
EFF: EFF3, EFF2, EFF1
Poles: 2, 4, 6, 8,
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3, IMB5,IMB35
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
Ambient temperature: -35oC and 40oC
The altitude should be lower than 1,000m above the sea level
Relative humidity: not higher than 90%
Special motors can be designed according to customers' requirements
Frequency: 50Hz, 60Hz
Protection class: IP54
Insulation class: B,or F
Materials: cast iron(63-355), aluminum (FRAME 63-160)
EFF: EFF3, EFF2, EFF1
Poles: 2, 4, 6, 8,
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3, IMB5,IMB35
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
Ambient temperature: -35oC and 40oC
The altitude should be lower than 1,000m above the sea level
Relative humidity: not higher than 90%
Special motors can be designed according to customers' requirements
