Raw material
This machine can use different various of waste paper,recycled paper,virgin pulp, as material to make high quality toilet tissue paper,finished product can be small toilet paper roll ,napkin paper,kitchen towel paper,facial tissue paper.

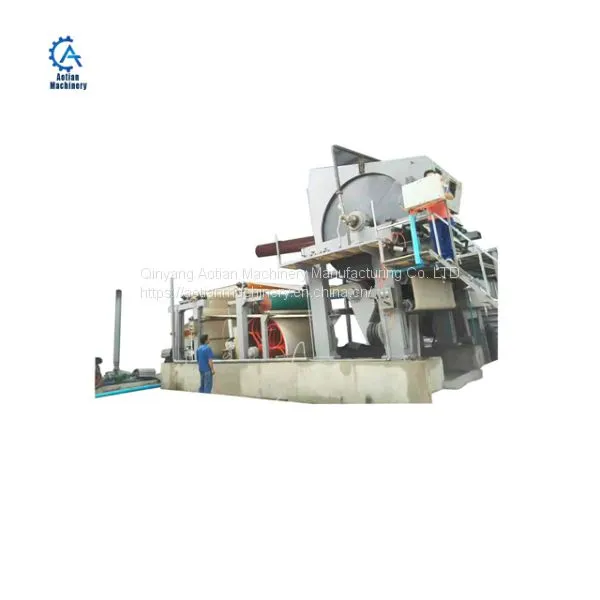

Product show
Technical parameters
| raw material | waste paper,recycled paper,virgin pulp |
| output paper | toilet,tissue,napkin,kictchen towel paper,fical tissue paper |
| net paper width | 1760mm |
| capacity | 5t/d |
| grammage | 13-30g/m2 |
| design speed | 100m/min |
| working speed | 80m/min |
| rail guage | 2400mm |
| transmission type | AC variable frequenxy drive division |
Pulp production line
Pulping is the process of separating fiber from raw materials to obtain pulp,by means of shatter,filtrating,refiner,cleaning.
Paper production line

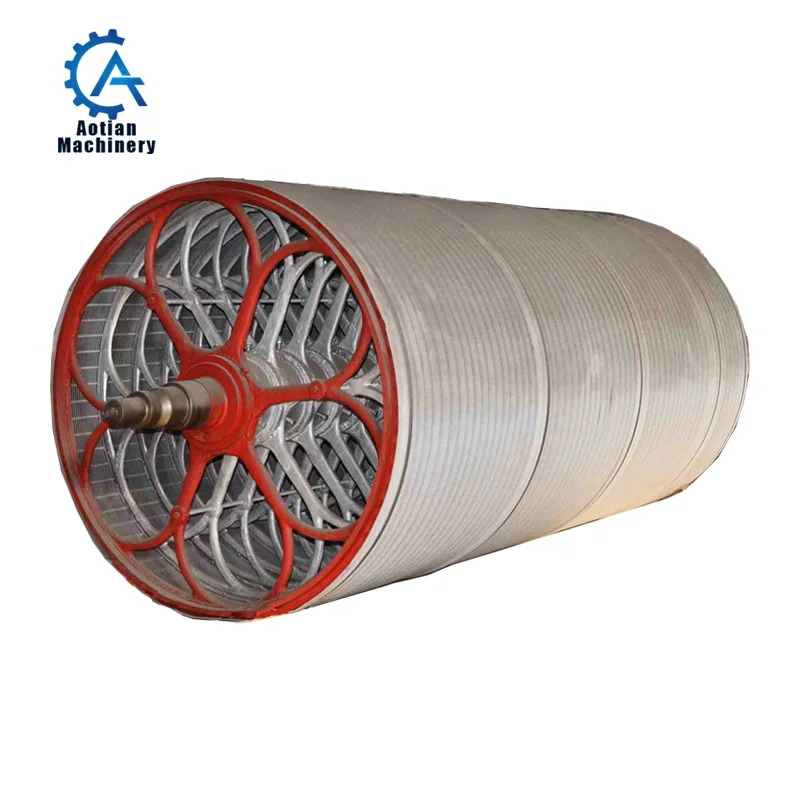

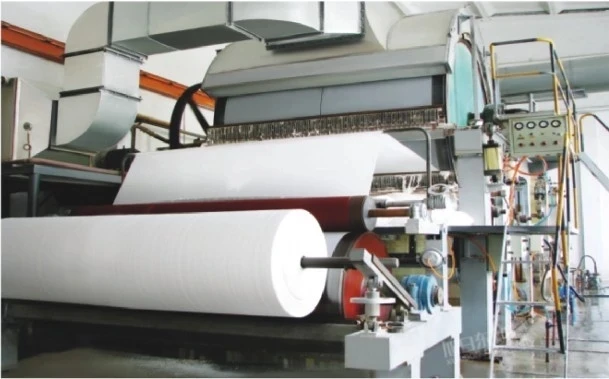

In the Paper Machine, , allowing water to fall through the wire web. This leaves a continous sheet of paper fibers that begins to form the paper. This sheet is then passed over vacuum boxes, pulling most of the remaining water out of the paper. The sheet then comes off of the wire web and is fed into a system of heated rollers, which dries and presses the paper. The paper is then put onto huge rolls in continuous sheets, ready for further processing.
Winding and cutting section
Automatic tissue paper rewinding machine adopts international advanced PLC computer programming technology, adopts variable frequency speed regulation, photoelectric paper cutting, and automatic gluing.The width of the paper roll can be adjusted.
AOTIAN have sanitary paper machine, culture paper machine, craft kraft paper machine, corrugated paper machine, etc machinery. Please be assured that we are a professional papermaking factory.If you have any need of paper machine spare parts and all papermaking machinery please contact us. Thank you.
Packaging
Products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.
Shipping
Sea transportation is from Qingdao seaports or other china main ports.The delivery time is decided by machine types.But we also try to make it follows your needs.
1.To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality
2.Always online to answer technical questions
3.The customer arrives China, accompanied this translation facility until send customers back
4.send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine
5.Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service.
Aotian Machinery Manufacturing Co., Ltd.
Trade market
Our machines sell good in more than 30 countries,such as Nigeria, Egypt, Uzibekistan, Pakistan, America,Uganda,Turkey,Brazil,Fiji,Paraguay,Syria,Lybia,Ethiopia,etc.We have established good relationship with many foreign countries because of our good quality and perfect service.Also we have good relationship with local traders.
What we can provide
1.1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.pulp making equipments
3.paper making equipments
4.paper processing equipments
A: Our person is 24hours online. When nobody reply you , please leave your requirements on email or chat tool,we will reply you as soon as possible.
2.Q: What can I get suitable scheme basis on my requirement ?A : Please tell me what raw material you want use and how many capacity you want produce per day when you sent email to me .We will be provide better offer for you .
3.Q:Will you send engineers to design our plant and install the equipment?A: Yes, Our factory will arrange engineer to supply the professional drawing and install and train the workers about adjusting the equipemnt ,disposing of the trouble maybe happen and maintenance of the machine , after training ,the workers will get work license we distribute .
4.Q: How long is your guarantee?A:One Year.We shall supply free exchange for spare parts. After this period, we shall charge at low cost to keep after service .You will be welcom to contact us with any problem might occurred .
5.Q:Payment terms
A:(1)30% T/T within 10days after sign contract
(2)70% T/T before shipment
(3)100% L/C is also acceptable
6.Q:How to operate and maintain the machine?
A: We will provide a professional and detailed USER GUIDE to you with the machine;
7.Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
Any questions, please do not hesitate to contact me.
