Industrial Combined Condensing Gas Oil Fired Steam Boiler Price For School Swimming

Industrial Combined Condensing Gas Oil Fired Steam Boiler Price for school swimming

Model:WNS Type

Structure:Wet Back Fire Tube Three Pass

Rated Steam Capacity:1-25 ton/hr

Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa

Rated Steam Temperature:170/184/194/204/225 C

Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.

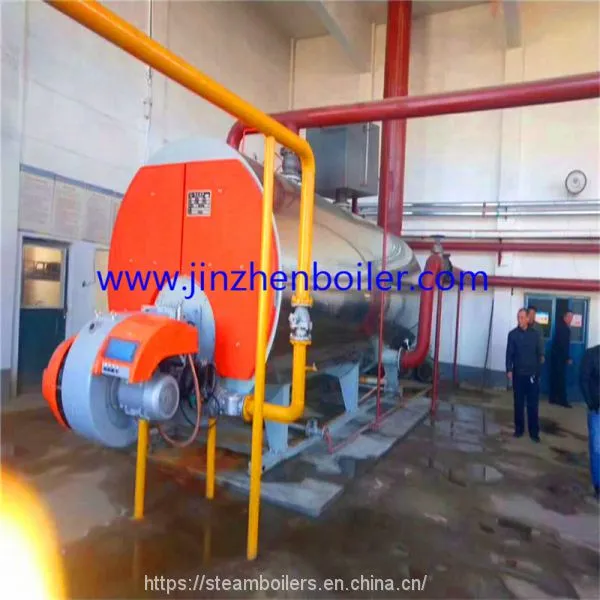

WNS series oil and gas steam boiler adopts shell type full wet back type fire tube structure. The structure adopts three return journeys, in which the oil or gas is well atomized by the burner and fully mixed with the air, and is completely burned in the corrugated furnace bile, and then turns from the rear smoke chamber into the return smoke pipe, turns to the front smoke box into the return smoke pipe, enters the back smoke box, and is discharged by the chimney.The size of the furnace liner we choose is large, which provides conditions for the full combustion of fuel, so this packaged steam boiler can burn heavy oil, light oil, natural gas and city gas. In addition, our company adopts threaded smoke pipe in the design, and the relative flow rate can control low smoke resistance, low power consumption and large load regulation ratio under the guarantee of sufficient heat transfer.

Performance Features:

Low cost: The implementation of the West-east gas transmission makes the price of natural gas lower and fuel cost lower accordingly;This type of boiler has high combustion efficiency, fuel saving and low fuel investment cost.Full bevel butt-weld, long safety life and low maintenance cost.

High efficiency: The tail part is equipped with flue gas condensation recovery device, which can effectively control the exhaust temperature, and the boiler has high thermal efficiency;Adopt automatic burner, feed water adopt continuous electric adjustment, combustion efficiency is high.

Safe and stable: Designed over temperature, over pressure, water shortage, leak detection, flameout and other protection functions, boiler operation is safe and reliable.

Space saving: adopt quick installation structure, the whole boiler is designed on the base with strong steel, easy to install and transport, saving the space occupied by the boiler room.

Executive Standard

1. Design, manufacture, assembly, experiment and acceptance of boilers in strict accordance with national and industrial standards, including but not limited to the following standards: GB/T16508 Boiler Shell Boiler, TSG G0001 Boiler Safety Design Supervision Code, GB50273 Boiler Installation Engineering Construction and Acceptance Code

2. The main steel used in the boiler is 20 GB/T3087, which ensures the safety and reliability of the boiler.

3. Welding materials shall be selected according to NB/T47018. Full penetration welding with argon protection shall be performed on the boiler tube.

Safety control system
We design the safety interlock system with multiple protection and alarm functions
- Protection program of automatic ignition
- Locking and protection program of operation
- Protection program of extinction
- Protection program of completion
- Protection program of water pumps (pressure loss)
- Protection program of ignition failure
- Protection program of combustion engine malfunction
- Protection program of combustion engine flameout
- Sound-light alarm of high pressure
- Sound-light alarm of high limit water level
- Sound-light alarm of low limit water level
- Sound-light alarm of super-high temperature of hot water

Technical parameter

What are the available fuel for the oil gas fired boiler?

Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

Whether the boiler can burn dual fuel or multi-fuel?

Steam boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.

What is the texture of spirally corrugated tube?

The texture of spirally corrugated tube is 20#.

The brand of burner?

The brands of burner are Italy Baltur, Rellio, Elco, etc.

What is the thickness of combustion chamber?

the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.

What is the advantages of fire tube boiler?

This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!

Details of electric control cabinet.

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.

What is the combustion mode of oil gas fired boiler?

The combustion mode of oil gas fired boiler is chamber combustion. Together with air, the powered fuel (solid fuel - coal dust), atomized fuel (liquid fuel - oil), and vaporized fuel (gas fuel - natural gas) is sprayed into furnace (combustion chamber) for suspension combustion.
