Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Battery Bike Charging Pile Swipe Card Scan Qr Code Coin Cloud Platform

Battery Bike Charging Pile Swipe Card Scan Qr Code Coin Cloud Platform

Jiangsu Acrel Electrical Manufacturing Co.,LTD.

Battery Bike Charging Pile Swipe Card Scan Qr Code Coin Cloud Platform thumbnail-1

Battery Bike Charging Pile Swipe Card Scan Qr Code Coin Cloud Platform photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Main Markets:

Southeast Asia

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Acrel provides charging piles and installation instruction drawings to guide users to choose the correct specifications of auxiliary materials and installation methods. This is the first step to prevent hidden dangers of charging fire. The charging pile has a full self-stop function that automatically detects the charging status of the electric bicycle. If it is full, it stops power supply, which protects the battery from being overcharged and prevents fire accidents; The charging pile has an overload protection function, which can identify high-power electrical appliances, and automatically suspend power supply when overloaded, preventing users from plugging in the power strip to charge multiple electric bicycles; The charging pile has short-circuit protection and over-temperature protection. It can ensure charging safety by blowing the fuse or stopping charging. The charging pile is equipped with leakage protection measures, which can automatically detect the leakage current and give a timely alarm. Support RF card credit card charging, campus card credit card charging, coin charging and code scanning charging.

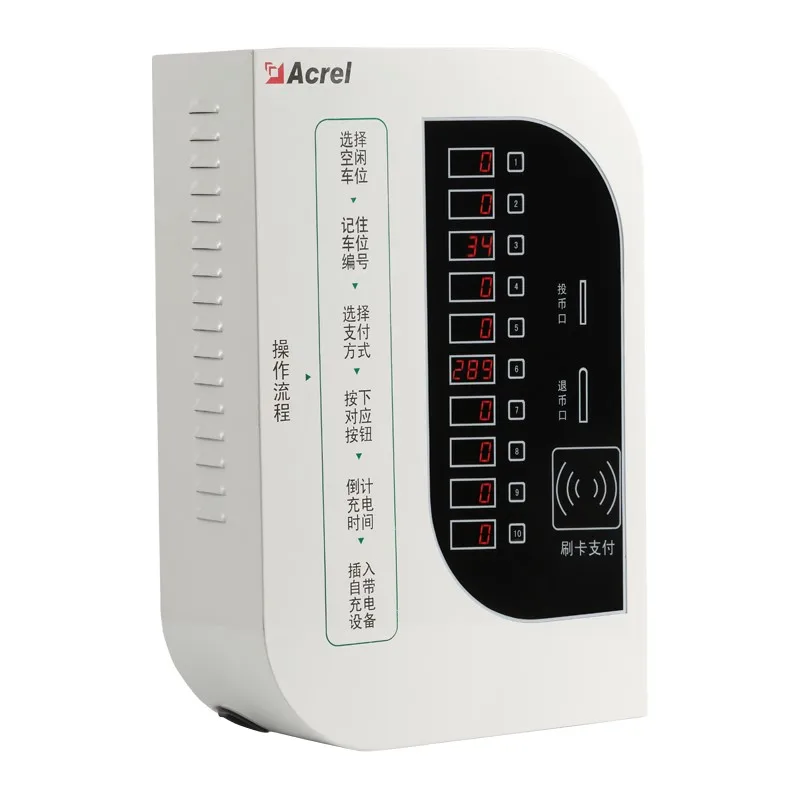

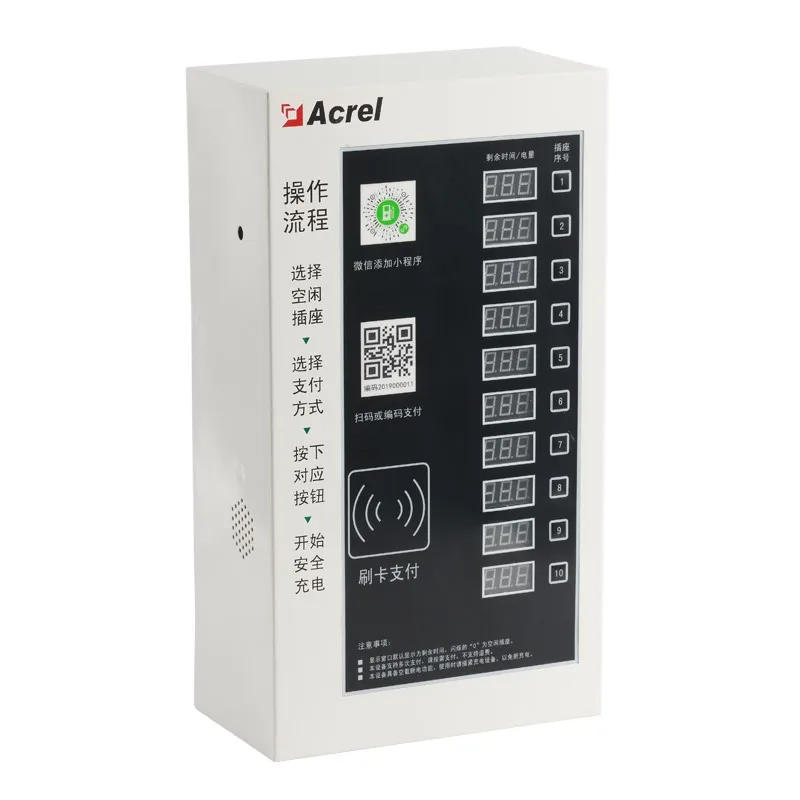

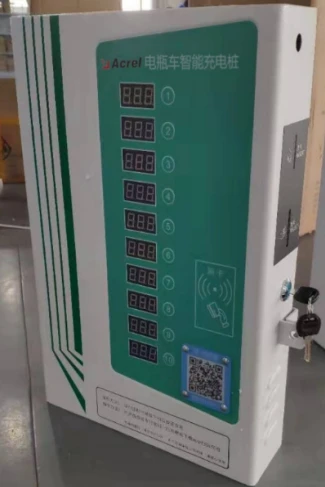

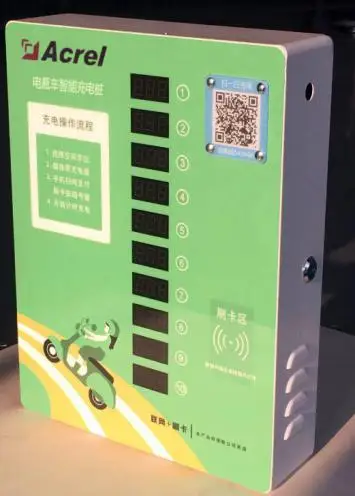

Detailed Images

Type	ACX10A-YH	ACX10B-TYH	ACX10B-YH
Function	swipe card,scan a QR code,connet to cloud platform	swipe card,scan a QR code,coin,connet to cloud platform or not	swipe card,scan a QR code,coin,connet to cloud platform or not
Size	340500140mm	31045085mm	30038085mm
Weight	5.7kg	5kg	4kg
Loop number	10	10	10
Input voltage	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz
Output voltage	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz
Maximum current	25A	20A	20A
Power	2W	3W	3W

Charging pile operation management platform Acrel electric bicycle charging pile communicates with the cloud and exchanges data with the GPRS module. The system can monitor the daily status and charging process of the electric bicycle charging pile; realize charging docking: support a variety of payment methods such as coin payment, credit card, WeChat payment, etc. Provide effective early warning; realize the clearing and reconciliation functions of downstream station-level platforms. The platform can interface with the fire-fighting Internet of Things platform, applet, etc., provide relevant abnormal data, and realize the networked and visualized safety management of electric vehicle charging. Safety early warning The status of all charging piles connected to the platform is monitored. When abnormal conditions occur on the charging pile, an alarm signal can be sent to the operator in time through APP and SMS to eliminate the fire hazard in time. Transaction settlement management The platform provides operators with charging price strategy management, pre-charge management, bill management, revenue and financial related statements, etc., and supports coin charging, credit card scanning and code scanning charging. Charging service The software can search for nearby charging posts, view the status of the charging posts, and navigate to available charging posts. Charging can be achieved through online self-service payment. operation analysis Data analysis of orders, visual display of data through histograms and reports, and support for docking with third-party platforms. WeChat Mini Program You can scan and charge through WeChat Mini Program, and pay bills. Operators and property managers can manage the status of charging piles and charging transactions through small programs.

Product Tags: Bicycle charging pile , chrage pile
