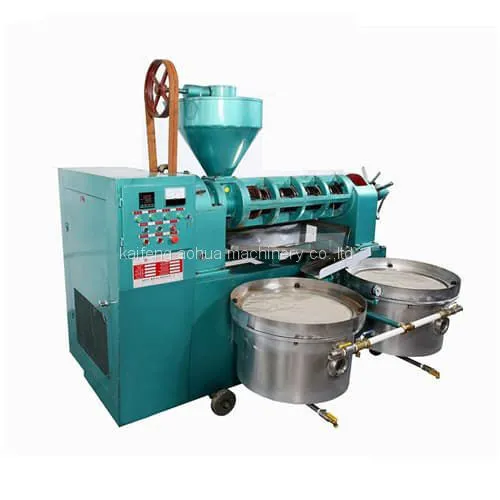

automatic temperature controlled combined oil presse, with electric heating device and a circulating water cooling system to control oil press chamber temperature, so as to achieve constant temperature for extracting oil, keep pressing chamber pressure stable (according to different oil, pressing chamber temperature maintained at 120-140 degrees C), avoid the temperature too high during long time work, the protein degeneration, material coking, so the oil yield is improved, and a variety of vitamins, fatty acids, minerals, trace elements and nutrients could be intact. At the same time, the cake utilization value ,the degree of intelligence and automation are improved.
Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants | Processing Capacity（t/24h） |
Oil content of Dry cakes （％） |
Oil yield efficiency （％） | Electricity consumption（kW·h/t） |
Rapeseed | ≥7.0 | ≤7.0 | ≥82 | ≤40 |
Cotton seeds | ≥7.0 | ≤6.5 | ≥77 | - |
Soybean | ≥6.0 | ≤6.0 | ≥67 | ≤56 |
Groundnut | ≥7.0 | ≤7.0 | ≥92.3 | ≤39 |
Item | AHZY120SLWZ |
Revolving speed of spiral axis (r/min) | 37-45 |
Power of main electromotor (kw) | 11-15 |
Electrical power of filtration (kw) | 2.2 |
Power for temperature controlling (kw) | 1.5 |
| Power of cooling system (kw) | 0.12-0.16 |
Measurement (mm) | 2420*1765*1940 |
Weight (kg) | 1280 |
1. Inner packing: Plastic film
2. Outside packing: container/wooden box
3. Shipping: by sea in QINGDAO port or according to your demand
