Product Description

Smart Electronics Raspberry pi 0 Zero Raspberry Pi Zero Pi W version Original Development Board

The configuration parameters are: Broadcom BCM2835 chip 1GHz ARM11 core (40% faster than Raspberry pi 1 generation) 512MB LPDDR2 SDRAM a micro-SD card slot One mini-HDMI interface supporting 1080p 60hz video output Micro-USB interface for power and data transfer A 40Pin GPIO interface is the same as the Raspberry Pi A+, B+, and 2B versions (the pins are vacant and need to be soldered by themselves, which makes them smaller and easier to package when you don't need to use GPIO) Vacant video interface (for connecting TV output video, you need to solder yourself) Ultra-small Raspberry pi ever, 65mm x 30mm x 5mm Shipping list: 1. Raspberry pi 0 motherboard x 1

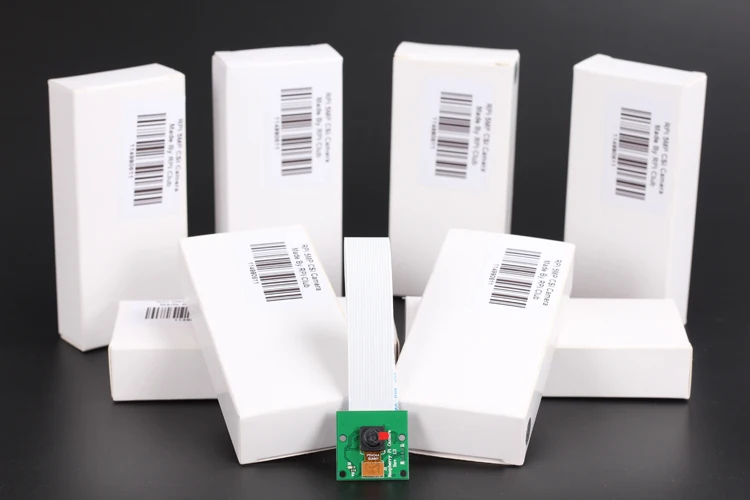

5MP Raspberry Pi Model B Camera

500 million pixels
Photosensitive chip OV5647
Static image resolution is 2592 × 1944
Support 1080p30, 720p60 and 640×480p60/90 video recording
Size: 25mm × 24mm × 9mm

Software usage:

First enable the camera in the system: sudo raspi-config -> Camera ->Enable

Take a picture:

Execute the following command in the terminal:
Raspistill -o image.jpg -t 10000
Image.jpg will be generated -t 10000 means 10S

Shooting video

Execute the following command in the terminal:
Raspivid -o video.h264 -t 10000
Will generate video.h264 video -t 10000 means shooting time 10S

When shooting, want the video display interface to fill the entire LCD 7-inch screen, you can execute the following command:
Raspivid -w 320 -h 240 -p 0 -t 10000 -o video.h264

Play the video you shot:
Omxplayer -o hdmi video.h264 (after executing the command, wait a few seconds to play)

Single-board Raspberry Pi 3 Model B + Raspberry Pi 3 Model B Wholesale In Stock

Specification

The Raspberry Pi 3 Model B+ is the final revision in the Raspberry Pi 3 range.

Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
1GB LPDDR2 SDRAM
2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
Extended 40-pin GPIO header
Full-size HDMI
4 USB 2.0 ports
CSI camera port for connecting a Raspberry Pi camera
DSI display port for connecting a Raspberry Pi touchscreen display
4-pole stereo output and composite video port
Micro SD port for loading your operating system and storing data
5V/2.5A DC power input
Power-over-Ethernet (PoE) support (requires separate PoE HAT)
