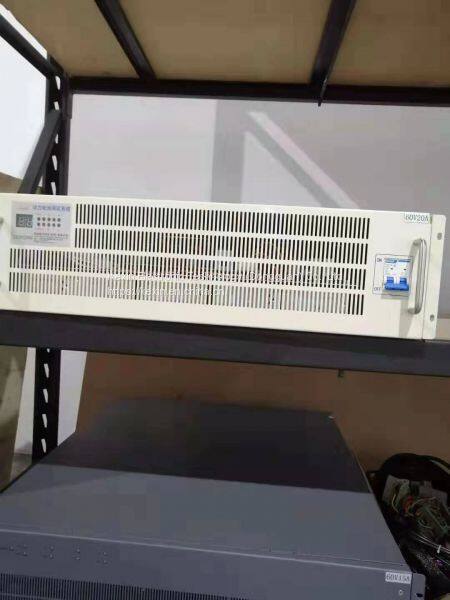

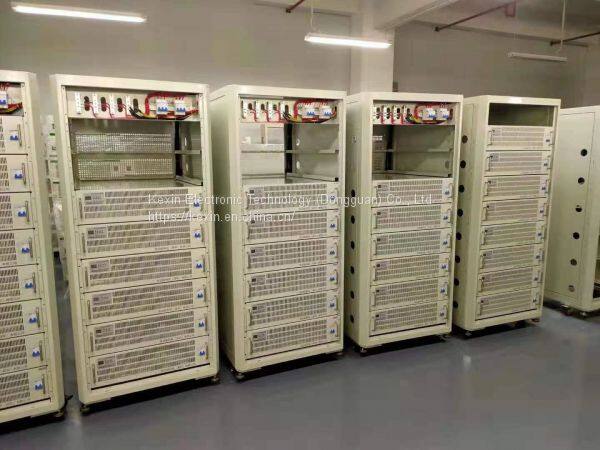

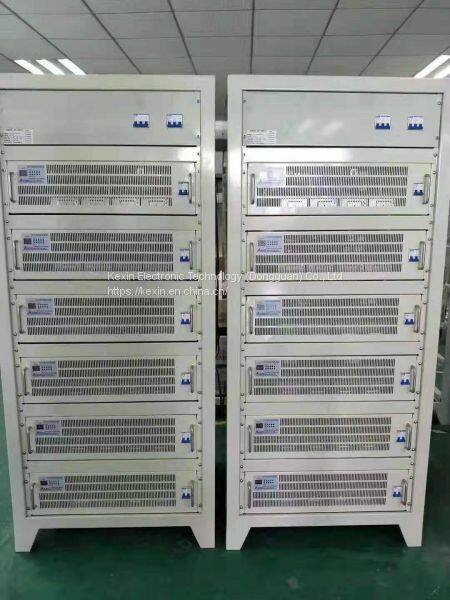

High Precision Battery Pack Aging Cabinet

Equipment Description:

Kexin high precision battery test system is mainly designed for power battery / battery pack, which can meet the performance test requirements of power battery pack. The equipment has the characteristics of high power, high precision and high performance. It can charge the equipment voltage from 0 to 60 V and discharge from 60 V to 5 V, and charge and discharge tests and capacity separation of batteries with various specifications from 0 to 10 A.

Software

1, the software supports all kinds of connection, such as manual pause connection, software shutdown connection, power failure interruption connection, equipment communication interruption connection, abnormal stop connection;

 2. It supports barcode scanning, which can scan one-dimensional code and two-dimensional code, including sequence scanning, channel skipping scanning, loading and disk scanning;

3. Local test detailed data storage, you can view the current test data and historical data of each channel at any time. There are two ways to display the corresponding data and curve. It also supports the export of excel report in single or batch form. In addition, it can set the automatic data export after the test according to the needs.

4. It supports capacity sorting and battery grade sorting;

5. It supports passing / ng result judgment according to specified cycle capacity, voltage, time and other information;

6. It supports various step protection and global voltage, current and temperature abnormal protection, and gives abnormal alarm, and supports battery pack overcharge and over discharge protection test;
