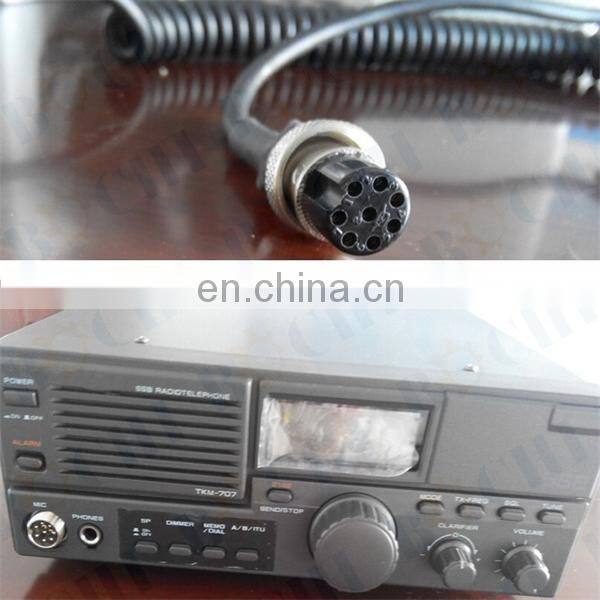

Waterproof Marine SSB Radio

Product Description

 HF SSB Radio is a radio communication equipment sending and

receiving signals from either of the two sidebands of AM Signal.

The transmission system of SSB Radio is divided into a prototype single-sideband system

and an independent single-sideband system,

the former only transmits the information from the upper sideband and the first sideband,

and the later transmits different types of information between the upper and the lower sidebands.

One sideband (with the bandwidth of 3 kHz) can transmit one-route call, multi-route telegram or data. Compared with the AM radio station, it has virtues of frequency spectrum saving, power saving, ease of reuse, as well as slight effects by the selective fading.

In addition, it has multi working modes such as continuous wave, frequency-shift printing telegram, single sideband call and amplitude-modulation call,

mainly used for the long-range and BVR communication.

General Specification

Frequency Range

Transmitting:2.0000~22.9999MHZ ;



Receiving:1.0000~29.0000 MHZ ;

Frequency Error

±20HZ ;(Preheat for 10 minutes)

Operating Category

J3E,H3E,CW;

Antenna Impedance

50Ω

Power Supply

DC 13.6V ±15% ;

Operating Temperature Range

-15℃~+55℃;

Transmitter Specification

Average Power

75W/25W/12.5W; (Modulation B)

Peak Envelope Power

150W/50W/25W;

Voice Circuit Input Level

≥1.5mV (600Ω;local)

Power Consumption

≤30A;

Sideband Suppression

≥40dB;

Carrier Suppression

≥40dB;

Transmitter Specification

Reference Sensitivity

(12dB signal-to-noise-and-distortion ratio (SINAD), EMF value)



1.0000~1.9999MHZ ;



J3E:≤1.0μV;H3E:≤5.6μV;



2.0000~29.0000MHZ ;



J3E:≤0.5μV;H3E:≤2.8μV

Squelch Opening Sensitivity

(12dB signal-to-noise-and-distortion ratio (SINAD), EMF value)



1.0000~1.9999MHZ ;



J3E:≤0.5μV;H3E:≤2.0μV;



2.0000~29.0000MHZ ;



J3E:≤0.25μV;H3E:≤1.4μV

Rated Audio Distortion

≤7%  (0.5W 8Ω)

Maximum Power Consumption for Receiving

≤800mA;

Blocking

≥90dB

Intermediate Frequency Rejection Ratio

≥90dB

AGC Control Characteristic

≤6dB

Related Products

Waterproof Marine SSB Radio

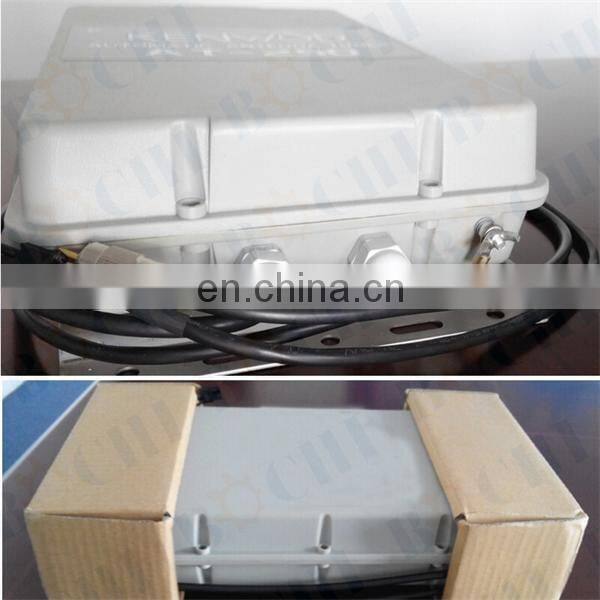

Packaging & Shipping
