Home > Products > Marine Electrical Equipment > Best Navigation Radar Marine
Best Navigation Radar Marine
- China Port
- T/T Credit Card
You May Like
Product Details
| Brand Name | BOCHI | Place of Origin | Chongqing, China | |
| Model Number | BMMEENPRA-001 |
carton
Product Description
Best Navigation Radar Marine
Application:
This product to meet IMO convention for from small patrol boat,
fishing boat to all kinds of transport ships and ocean steamer, etc.
Various kinds of tonnage ship's different demands.
Model:
BMMEENPRA-001
Main technical parameters:

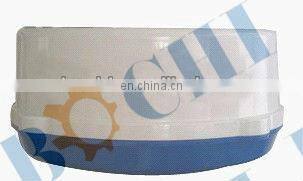

RF Transceiver unit
Model type | BMMEENPRA-001 |
radiator | Crack waveguide array |
Radiator length | 54cm |
Horizontal beam Angle | 4º |
Vertical beam Angle | 25º |
Polarization direction | Horizontal polarization |
Antenna speed | 22±2r/m |
Transmitting tube | MSF1421BL/MG4004 |
Frequency | 9410±30MHz |
Rated output power | 4.5KW |
Modulation mode | Field-effect transistor (FET) switch mode |
Preheating time | 2 min. |
IF | 60MHz |
Tuning time | Manual/automatic |
Noise figure | 4.5dB(BMMEENPRA-001) |
Bandwidth | 8 MHZ (short 1/2/3 / short short one pulse) 3 MHZ (2 / long 1 / long 2 pulse) |
Transceiver exchange switch | Three terminal circulator |
Pulse width, repetition frequency
Pulse width | Repetition frequency(Hz) | Range (nautical mile) | |||||||||
0.125 | 0.25 | 0.5 | 1 | 1.5 | 3 | 6 | 12 | 24 | 48 | ||
S1 | About 1500or 2250 | 0.06us | |||||||||
S2 | 0.15us | ||||||||||
S3 | 0.25us | ||||||||||
M1 | 0.35us | ||||||||||
M2 | 0.45us | ||||||||||
L1 | About 750 | 0.6us | |||||||||
L2 | 0.8us | ||||||||||
Display unit
Display system | Raster scan, high brightness display |
Teletron | 10 inches Rectangular prevent dizziness CRT |
Pixel | 496×672 |
Orientation precision | <1º |
Minimum range | 15 meters |
Distance accuracy | ≤7 meters |
Working conditions
Vibration | Vibration frequency(Hz) | Amplitude(mm) |
1-12.5 | ±1.6 | |
12.5-25 | ±0.38 | |
25-50 | ±0.1 | |
Environment temperature | Transceiver unit | -25~+60°C |
Display unit | -10~+50°C | |
Humidity | Related humidity | 95% (±40°C) |
Power consumption | 10.2-40VDC ≤60W[BMMEENPRA-001] ≤80W[BMMEENPRA-003] | AC220V/50Hz(with rectifier) |
RF Transceiver unit outline:
Display unit outline:
BOCHI can provide CCS, ABS, DNV, GL, LR, RINA, BV, NK, KR, RS...etc.
We can satisfy all the customers requirments.
Factory:

A:how many inch do you have?B:We have 10/12/15 Inch
A:How many NM?B:we have 36/64/96 NM
A:What the Rated output power?B:we have 4KW/6KW
Any questions or unclear about the product,contact me please!
