High Quality AIS Class B For Sale
- China Port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China |

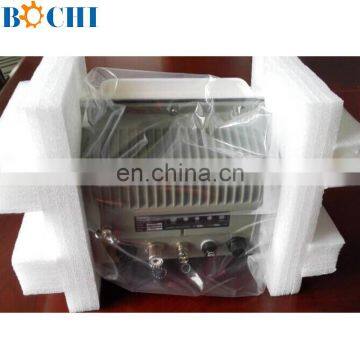

Carton
Product Description
High Quality AIS Class B For Sale
Features:
Built-in AIS Class B Transponder
High resolution TFT day-view LCD display

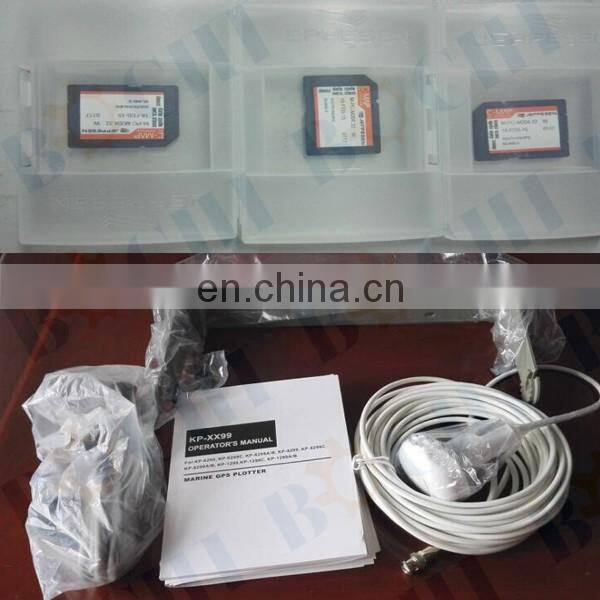

SD-cards slot for C-Map MAX and user data
C-Map MAX and K-Chart Selectable
Tide table and Celestial display
Versatile display mode include
Plotter Screen
Nav.Data
Satellite Information
AIS Display
Compass Screen
GOTO track navigation
Map orientation select
Proximity waypoints alarms
Perspective View
Palette
Normal
Daylight – exposed to sunlight
Night – in dark environment
NOAA- paper chart color
Wind speed and direction display by optional sensor input
AIS guard zone with CPA and TCPA alarm
PLOTTER CHARACTERISTICS | |
| 1. Waypoints/icons | 15,000 waypoints with name, symbol, 10 proximity waypoint |
| 2. Routes | waypoint up to 200 points each, plus MOB and Track Navigation or Goto Track modes |
| 3. Tracks | 30,000 point automatic track log; 15 saved track (up to 2000 track points |
| 4. Alarms | XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,AIS alarm. |
| 5. Pallete | Normal Daylight exposed to sunlight Night in dark environment NOAA paperchart colors |
| 6. Tides | Tide data |
| 7. Projection | Mercator projection |
| 8. Position format | Lat/Lon |
| 9. Basemap | Built-in K-Chart |
| 10. External Map | SD Cards slot for C-Map MAX |
| 11. User data storage | Internal backup of user settings, or external SD-card |
| 12. Plot Interval | 1s to 99h or 0.01 nm to 9.99nm |
| 13. Plotting scales | 0.01nm to 1,000nm |
| 14. Nav Datat | Inputs: $–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV, $–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC, $–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW Outputs: $–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL, $–RMB,$–RMC,$–VTG, $–XTE, $–ZDA Outputs for autopilot: $–AAM, $–APB, $–BOD,$–VTG |
| 15. Perspective View | On/off |
POWER SUPPLY | 10.5 to 35VDC, current drain <500mA at 12V |
PHYSICAL | |

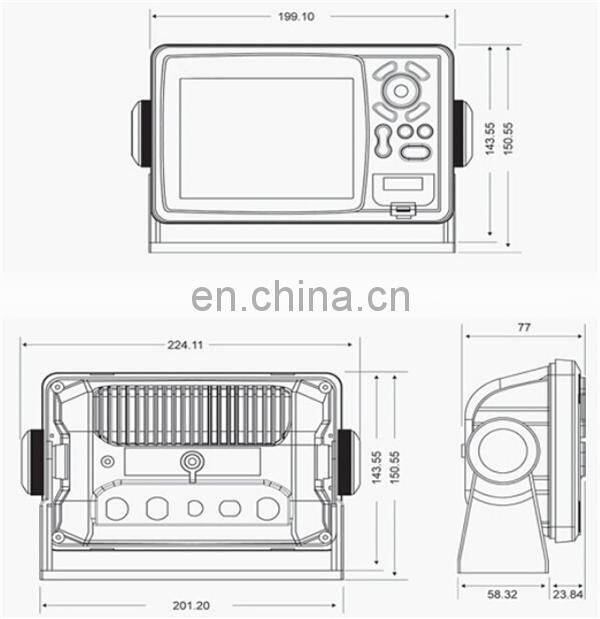

| 1. Size | 228mm(H)X138mm(W)X79mm(D) |
| 2. Weight | 0.9kg |
| 3. Display | 5.6-inches ColorTFT day-view LCD 640 X 480 pixels |
| 4. Waterproofing | Display unit: IPX5 Antenna unit: IPX6 |
| 5. Temperature range | Display unit: -15°C to +55°C Antenna unit: -25°C to +70°C |
GPS RECEIVER CHARACTERISTICS | |
| 1. Receiver | 50 parallel channel GPS receiver continuously Tracks and uses up to 50 |
| 2. Acquisition times | Cold start: 27 seconds average Warm start: 27 seconds average Hot start: 1 seconds average: |
| 3. Update rate | 1/second,continuous |
| 4. Accuracy | Position: 2.5 meters(95%) without S/A Velocity: 0.1 Meter/sec without S/A Time: ±100ns synchronized to GPS time |
| 5. Dynamics | Altitude: 50,000m Max Velocity: 500 m/s Acceleration: 4g Max |
| 6. Datum | WGS 84 & Others |
| 7. Interfaces | NMEA 0183 input and output,RS232 and RS422 output |
| 8. Antenna | KA07 |

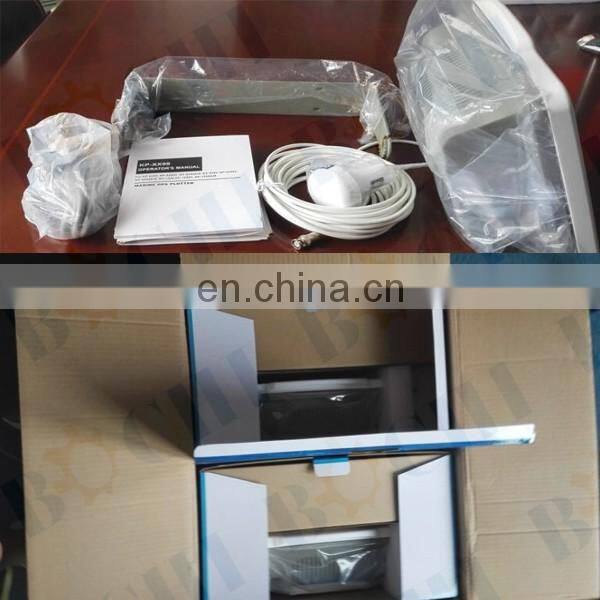

EQUIPMENT LIST | |
| Standard |
|
AIS CHARACTERISTICS | |
| 1. Transmitter x 1 | |
| 2. Receiver x 2 | (one time shared between AIS/DSC) |
| 3. Frequency | 156.025 to 162.025 MHz iin 25KHz steps |
| 4. Output power | 2 watts typical |
| 5. Channel bandwidth | 25KHz |
| 6. Channel step | 25KHz |
| 7. Modulation modes | 5KHz GMSK (AIS,TX AND RX) 25KHz AFSK (DSC,RX only) |
| 8. Bit rate | 9600 b/s +- 50 ppm (GMSK) 1200 b/s +- 30 ppm (FSK) |
| 9. RX sensitivity | Sensitivity – 107dBm 25Khz Message error rate less than: 2% Co-channel 10dB IMD 62dB Blocking 84dB |
