Simple Cylinder Hydraulic Boat Steering Gear

1. Features and Application

Simple Hydraulic Steering Gear has 24V electric operation, maneuvering wheel operation and emergency maneuering wheel operation, and is also equipped with power lost, lack phase, over loading, low oil level and filter choke light and audible alarm. It has simple configuration, little fault sources, low noise, easy installation, flexible and steady, safe and reliable operation.

Simple Hydraulic Steering Gear fully comply with the regulations and requirments from the world's major classification societies, such as CCS,ZY,BV,ABS,etc. It is suitable for all kinds of boats and ships with nominal torque ranging from 5kN.m to 500kN.m.

2. Technical Specification:

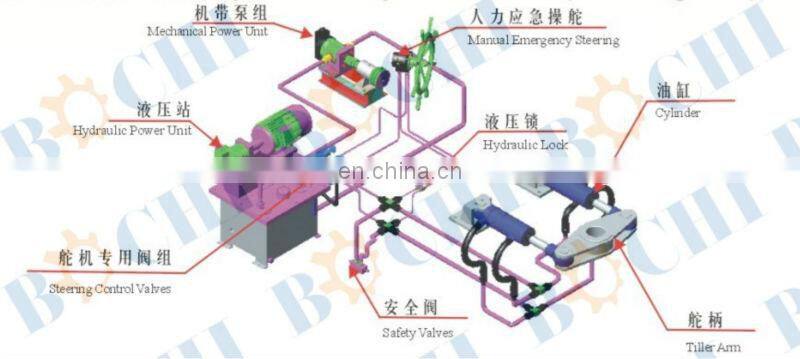

3. Hydraulic System Principle Diagram:

4. Rudder Propelling Setup Configuration and I nstallation Dimension:

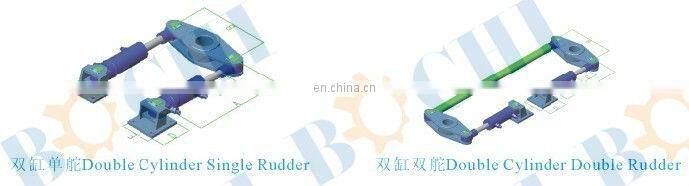

Improved Hydraulic Steering Gear rudder propelling setup has double cylinder single rudder and double cylinder double rudder. We will choose the suitable style for each ship as per requirements from clients.

Notes:

1) Clients shall indicate the numbers of rudder and the diameter of rudder stock during ordering;
2) The connecting rod used in the system shall be provided by clients;
3) If the ordered steering gear system requires the rudder turning time to be ≤12s or ≤28s, and the maximum rudder angle to be ±45 degree, the clients must indicate those technical parameters in the order contract;
4) We reserve the rights to revise or improve some parameters listed in this brochure without further notice.

For marine rudder and steering system products, we generally shipping by sea, also, if client is very urgent, we could choose by air. We have cooperated with many popular shipping Carriers and Airline, that means we have competitive price and good service ensurement on Sea and Air Cargo.

Rudder and Steering System is important equipment for marine, such as rudders, hydraulic steering gear etc. Bochi Corporation could disign and offer you best products with good servces: we take care of ur order!

1. Punctual delivery time:

• We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

2. After sales service:

• After receive the goods, We accept ur feedback at first time.
• We could provide installation guide, if you have need, we could give you global service.
• Our Sales are 24-hours online for ur request

3. Professional sales:

• We value every inquiry sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team.

Bochi Have many global clients, we offer professional service to them.  With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service. We will also pledge to work jointly with business partners to elevate our cooperation to a higher level and share success together with our customers. We are looking forward to establishing relationships with you in the near future.

BOCHI Marine/Ship Equipment Department is a total solution provider with his head office in Bochi Corporation (Chongqing).we are able to provide value added services and qualified marine equipments.

Deck equipments is one of our main products.including mooring winch, windlass, capastan, steering gear, marine crane, deck fiitings, shark jaw and towing pin, stern roller, hydraulic pump station, davit, etc.

ISO Certificate:

For Marine Equipments, we could offer good quality with class certificate, including ABS, BV, CCS, DNV,GL, LR, KR,NK,RINA,RMRS ,etc.

Before you send inquiry, pls kindly tell us: 1. What type of your ship/vessel, river or sea, or function, types; 2. Dimenssion of ship, such as length, width, height 3. Tonnage of ship/vessel 4. If needed, pls offer class, we could offer CCS,ABS,BV,DNV,LR,GL,RINA etc. We could design and recommend product for u.   If u have complete information such as Torque, just send to us directly.

Any Inquiry or Questions, Pls Kindly Contact Us!
