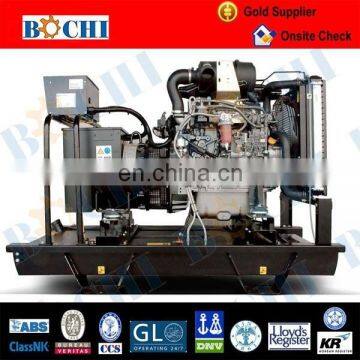

AC Voltage Sound Proof Marine Diesel Generator Set
- Chongqing
- T/T Credit Card
You May Like
Product Details
| Brand Name | Bochi | Place of Origin | China | |
| Model Number | BMMPPMGY64 | Rated Current | 90.2A | |
| Speed | 1500r/min | Frequency | 50HZ | |
| Rated Voltage | 400 |
Wooden case
Product Description
Features:
- The design and producing of marine generators comply with national standards
- Advanced technology, reliable performance and long life time
- Good capability to start electric motor and low noise
- Compact structure and environment-friendlyAll of the generator sets are passed through certifications of BV,ABS,GL, etc.
- Powerful and low oil-consumption
- Easy to start and good cooling system
- Low running cost and easy to maintain
- Little exhaust, running stably and good durability
Gensets Model | BMMPPMGY50 | BMMPPMGY64 | BMMPPMGY75 | BMMPPMGY75 | BMMPPMGY90 | |
Rated Capacity(KVA) | 50/62.5 | 64/80 | 75/93.8 | 75/93.8 | 90/113 | |
| Engine | Diesel Model | BM-YC6108CA | BM-YC6108ZC | BM-YC6108ZC | BM-YC6108LCA | BM-YC6108LCB |
| Rated power/Speed(KW/r/min) | 63/1500 | 80/1500 | 80/1500 | 90/1500 | 112/1500 | |
| Type | Vertical,inline,water-cooled,4 stroke | |||||
| Intake way | Natural aspiration | Turbo-cooled | Turbo-cooled | |||
| No. of Cylinder - bore*stroke | 6 - 108*125 | 6 - 108*132 | ||||
Starting type | Electric start | |||||
Total displacement(L) | 6.871 | 7.252 | ||||
| Min.fuel consumption g/(KW.h) | ≤198 | ≤197 | ≤195 | |||
| Oil capacity(L) | 16 | 22 | ||||
Lw Noise limit | ≤98 | |||||
| Generator | Lan Generator Model | TZHW-50 | TZHW-64 | TZHW-75 | TZHW-75 | TZHW-90 |
| Rated voltage | 400 | 400 | 400 | 400 | 400 | |
| Current(A) | 90.2 | 115 | 135 | 135 | 162 | |
| Regulator approach | AVR | |||||
| Freq.(Hz) | 50 | 50 | 50 | 50 | 50 | |
| Power factor(CosΦ) | 0.8 lagging | |||||
Phase | 3-phase | |||||
| Package | Net Weight(kg) | 1580 | 1500 | 1530 | 1560 | 1630 |
| Packing size L*W*H(mm) | 1900*800*1100 | 1960*800*1100 | 1980*800*1200 | 2000*820*1300 | ||
The main technical indexes
1.characteristic of voltage regulation
ratio of steady state voltage regulation ≤±2.5% ratio of transient state voltage regulation ≤±20-15%
steady time ≤1.5 ratio of voltage fluctuation ≤±1% voltage setting range of non-load 95-105%rated current
2.performance of governoring
ratio of steady governoring ≤5% ratio of transient governoring ≤±10%
steady time ≤5S ratio of rotating speed fluctuation ≤±0.5%
3.The generator set can overload 10% of the rated power for an hour after 12hours of rated power continuously
we can supply all kinds of marine diesel generator set.
We can supply all scopes of marine engine,from 10kw-3000kw.If you need engines,don't miss us.Please feel free to contact us.We can provide you best service and prices!
Equip China,Power World!
Verified Information
This information was Verified by Bureau Veritas and its Validity Period is 2012/07/11 --- 2013/07/10
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report.
Production Capacity:
Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
Marine engine | 1,200 sets | 989 sets |
Export Market Distribution:
Market | Revenue(Previous Year) | Total Revenue (%) |
South America | USD 50,000 | 0.39 |
Eastern Europe | USD 2,110,000 | 16.36 |
Southeast Asia | USD 3,200,000 | 24.81 |
Africa | USD 72,000 | 0.56 |
Mid East | USD 1,180,000 | 9.15 |
Eastern Asia | USD 60,000 | 0.47 |
Western Europe | USD 268,000 | 2.08 |
Domestic Market | USD 5,960,000 | 46.20 |
Production Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
Plate shearing machine | QC11Y-6X3200 | 1 | 2.0 | Acceptable |
Bending machine | WC67Y-125/3200 | 1 | 2.0 | Acceptable |
Rolling machine | Self-made | 1 | 2.0 | Acceptable |
Welding machine | LGK-100 | 4 | 2.0 | Acceptable |
Lathe | C6136A | 1 | 2.5 | Acceptable |
Planing machine | B665 | 1 | 2.2 | Acceptable |
Drilling machine | Z32 | 2 | 2.0 | Acceptable |
Crane | 10T | 2 | 3.0 | Acceptable |
Testing Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
Diesel generator set testing system | Self-made | 1 | 0.5 | Good |
Transformer | TJA-500 | 2 | 3.0 | Acceptable |
Water loader | Self-made | 4 | 0.5 | Good |
Cooling system | Self-made | 3 | 3.0 | Acceptable |

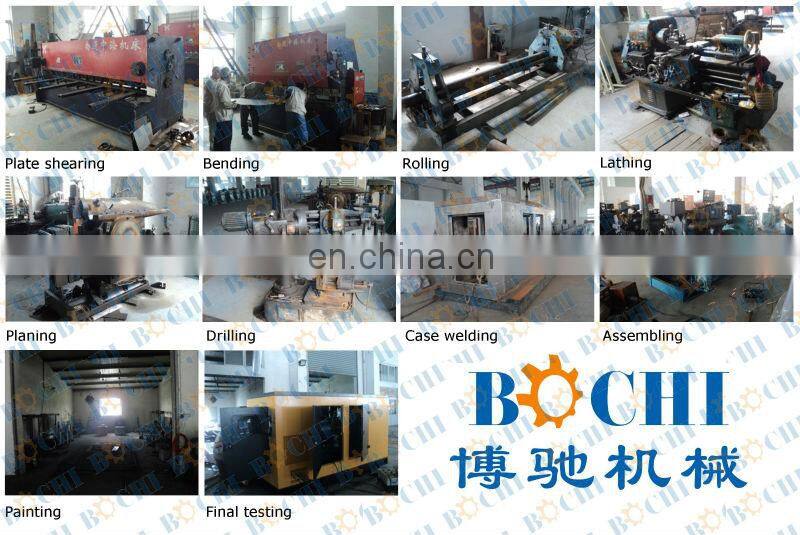

Production Flow:
Certificate:
Certified Picture | Certification Name | Certified By | Product Name & Model No. | Available Date---Expired Date |
| ISO9001:2008 | QAC; CNAS | Manufacture of 30-1500KW Diesel Generator Sets | 2011/07/25 --- 2014/07/24 |
| GB/T28001-2001 | QAC; CNAS | Chongqing bochi machinery co., ltd. is engaged in design, produce, sell and after sell services of eninge and the relevant occupation health & safety management activities. | 2009/10/20 --- 2012/10/19 |
