Home > Products > Marine Power & Propulsion > High -efficiency Open Frame 4 Stroke Boat Diesel Generator Set
High -efficiency Open Frame 4 Stroke Boat Diesel Generator Set
- any port in China
- T/T Credit Card
You May Like
Product Details
| Brand Name | Bochi | Place of Origin | Chongqing, China | |
| Rated Current | Voltage | Speed | 1500r/min | |
| Frequency | Power Standard | Rated Voltage | 220V/380V |
plywood carton, wooden cases or as your requests.
Product Description

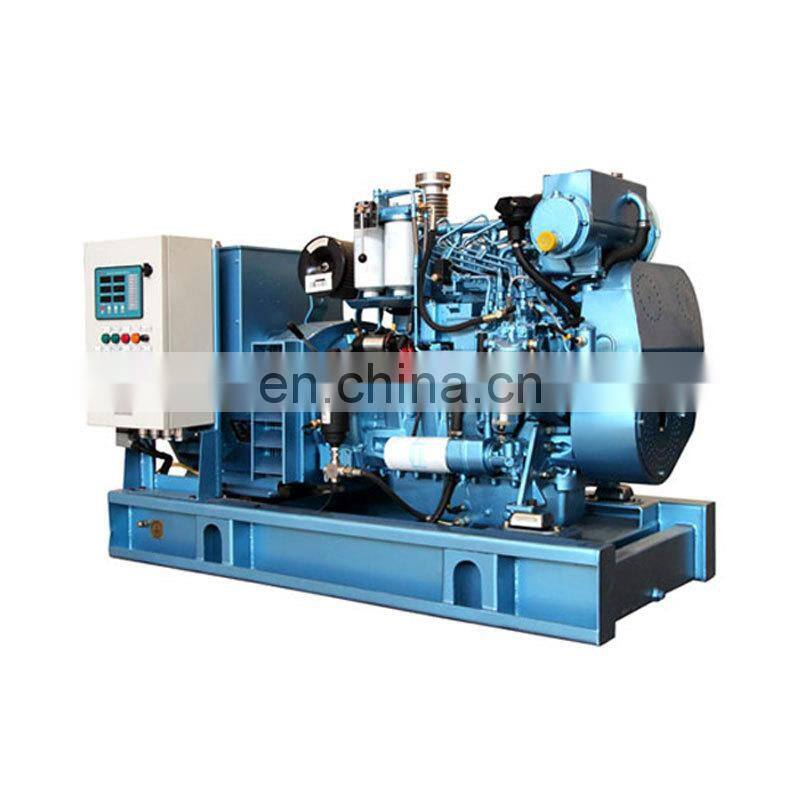

High -efficiency open frame 4 stroke boat diesel generator set
The main technical indexes
1.characteristic of voltage regulation
ratio of steady state voltage regulation ≤±2.5% ratio of transient state voltage regulation ≤±20-15%
steady time ≤1.5 ratio of voltage fluctuation ≤±1% voltage setting range of non-load 95-105%rated current
2.performance of governoring
ratio of steady governoring ≤5% ratio of transient governoring ≤±10%
steady time ≤5S ratio of rotating speed fluctuation ≤±0.5%
3.The generator set can overload 10% of the rated power for an hour after 12hours of rated power continuously
Gensets Model | BMMPPMGY50 | BMMPPMGY64 | BMMPPMGY75 | BMMPPMGY75 | BMMPPMGY90 | |
Rated Capacity(KVA) | 50/62.5 | 64/80 | 75/93.8 | 75/93.8 | 90/113 | |
| Engine | Diesel Model | YC6108CA | YC6108ZC | YC6108ZC | YC6108LCA | YC6108LCB |
| Rated power/Speed(KW/r/min) | 63/1500 | 80/1500 | 80/1500 | 90/1500 | 112/1500 | |
| Type | Vertical,inline,water-cooled,4 stroke | |||||
| Intake way | Natural aspiration | Turbo-cooled | Turbo-cooled | |||
| No. of Cylinder - bore*stroke | 6 - 108*125 | 6 - 108*132 | ||||
Starting type | Electric start | |||||
Total displacement(L) | 6.871 | 7.252 | ||||
| Min.fuel consumption g/(KW.h) | ≤198 | ≤197 | ≤195 | |||
| Oil capacity(L) | 16 | 22 | ||||
Lw Noise limit | ≤98 | |||||
| Generator | Lan Generator Model | TZHW-50 | TZHW-64 | TZHW-75 | TZHW-75 | TZHW-90 |
| Rated voltage | 400 | 400 | 400 | 400 | 400 | |
| Current(A) | 90.2 | 115 | 135 | 135 | 162 | |
| Regulator approach | AVR | |||||
| Freq.(Hz) | 50 | 50 | 50 | 50 | 50 | |
| Power factor(CosΦ) | 0.8 lagging | |||||
Phase | 3-phase | |||||
| Package | Net Weight(kg) | 1580 | 1500 | 1530 | 1560 | 1630 |
| Packing size L*W*H(mm) | 1900*800*1100 | 1960*800*1100 | 1980*800*1200 | 2000*820*1300 | ||
plywood carton, wooden cases or as your request
We can supply all scopes of marine engine,from 10kw-3000kw.If you need engines,don't miss us.Please feel free to contact us.We can provide you best service and prices!
Equip China,Power World!
If you have any question, please feel free to contact me, I will reply to you as soon as possible.
