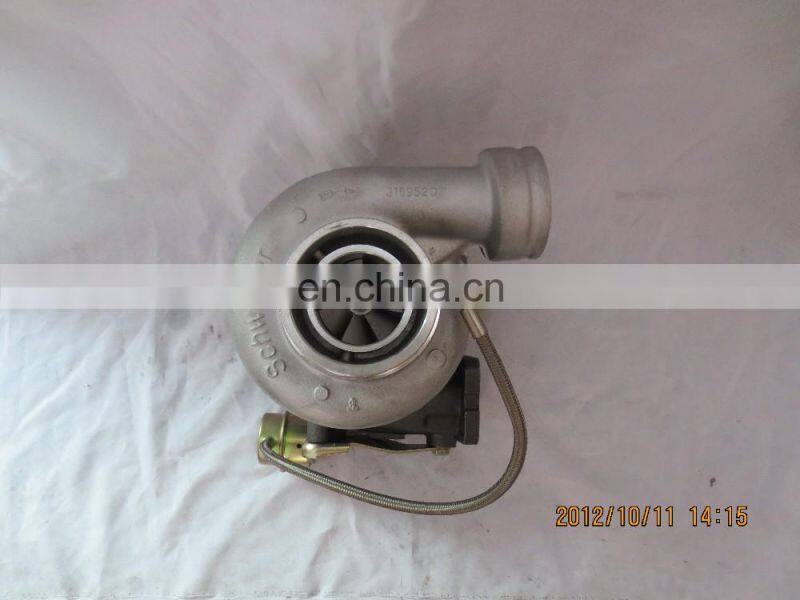

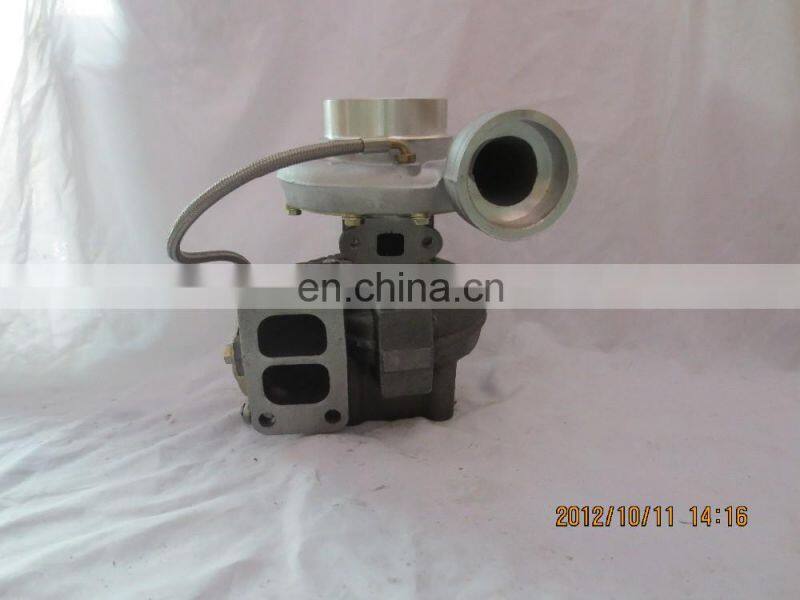

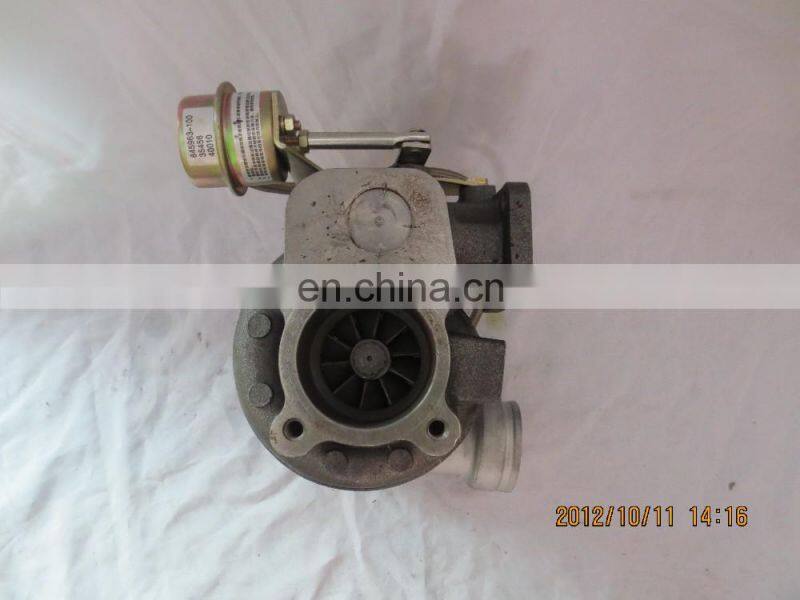

DeutzS200G Turbocharger 318815
US$ 50 - 350
/ Set
1 Set(Min. Order)
- haungpu
- T/T Credit Card
You May Like
-
Turbocharger 49173-02010 A1320900180 080115139
-
Turbocharger 762803-5002S 252714510127 GT2556
-
Turbocharger 4038790 4089714 HX25W-TD04HL-11T-6 HX25W
-
Turbocharger 762931-5001S 32006047 GT2556S GT2256S
-
Turbocharger 49135-05121 504260855 TF035 TF035HM-10T-5
-
Turbocharger 49135-05010 99450704 7701044612 TD04 TF035HM-13T-6
Product Details
| Brand Name | Junfeng | Place of Origin | Jiangsu, China | |
| Model Number | S200G-76H24AEFGM0.85DA11 |
Product Description
2001- Deutz Industrial Engine S200G Turbo 318815
Displacement 7.15L, 7150 ccm
Product Description
| Part Number | 318815 |
| OE number | 04259318KZ, 4259318KZ, 20571676 |
| Year | 2001- |
| CHRA | 318911 |
| Description | Industrial Engine |
| Turbo Model | S200G-76H24AEFGM0.85DA11 |
| Engine Model | BF6M1013FC |
| Displacement | 7.15L, 7150 ccm |
| KW | 200/268 |
| RPM Max | 2300 |
| Fuel | Diesel |
| Angle α (compressor housing) | 95 |
| Angle β (turbine housing) | 356 |
| Bearing Housing | 317952 |
| Turbine Wheel | 318900 |
| Comp. Wheel | 169937 |
| Back plate | 167744 |
| Heat shield Number | 167997 |
| Repair Kit | 318383 |
| Turbine Housing | 318893 |
| Compressor Cover | 318762 |
| Actuator | 318291/310618 |
| Settings Waste gate (pressure) | 1.558-1.627 bar |
| Settings Waste gate (lift shaft) | 0.38 mm |
| Gasket (turbine inlet) | 409039-0000 (2405022) |
| Gasket (turbine outlet) | 210245 |
| Gasket (oil outlet) | 210021 (311496, 148062, 311496) |
Applications
12001- Deutz Industrial Engine Gen Set BF6M1013FC
