Home > Industrial Equipment & Components > Ventilation Equipment > Blowers > Industrial Blower Fan For Glass Tempering Machaine

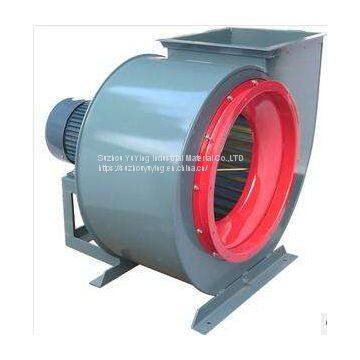

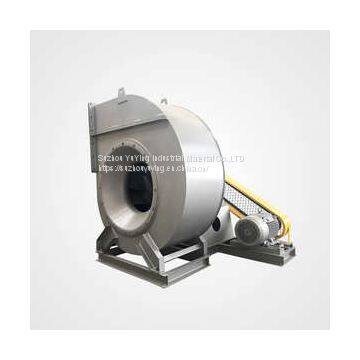

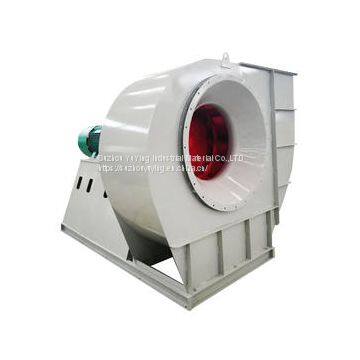

Industrial Blower Fan For Glass Tempering Machaine
US$ 3500 - 5000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YUYING
Place of Origin:
China
Model Number:
YUYING 001
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
15 days
Related Products
-
Blower For Air Convection Glass Tempering MachineUS$ 3500 - 5000MOQ: 1 Piece -
Tamglass Heating Heater Wire For Glass Tempering Machine With NiCrAL Raw MaterialUS$ 10 - 15MOQ: 10 Kilograms
-
Normal Tempering Machine Spares Heater Heating WireUS$ 10 - 15MOQ: 10 Kilograms
-
Thermocouple For Heating Tracing For Tempering MachineUS$ 10 - 20MOQ: 10 Pieces
-
K Type Thermocouple Mineral Insulated Temperature Sensors With Standard Leads 2x7/0.2mmUS$ 10 - 20MOQ: 10 Pieces
Brand Name
YUYING
Place of Origin
China
Model Number
YUYING 001
Type
Centrifugal Blower
Application
Industrial Blower
Rated Voltage
220 V
Rated Power
380 V
Power Source
Electric Blower
Pressure
High Pressure
HIGH PRESSURE CENTRIFUGAL FAN
1.centrifugal fan with low noise and large air flow.

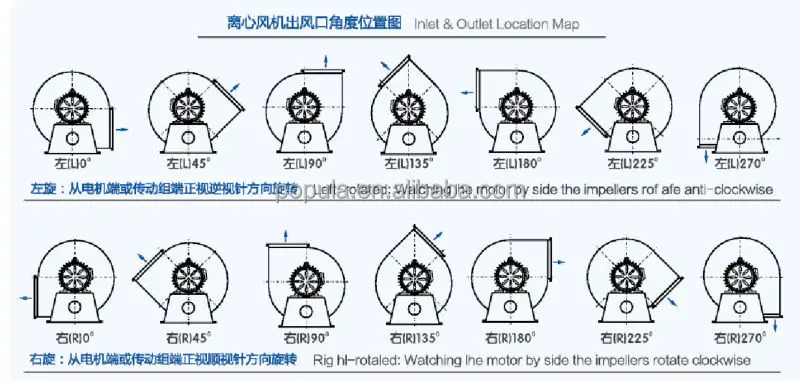

2.the angulation of outlet can adjust
This series are used for coercive ventilation in industrial such as ancient furnace,glas,electroplanting,ceramics,ect. and are widely used for material transportation in processing industrial like food,feed and slag.
The transportation in processing medium is air or other non-spontaneous-combustion and non-explosive-comubstion air with no harm to human.
The air transferred shall not contain any adhesive material,dust and grain and the concertration shall not exceed 150mg/m3 with the temperature no higher than 80 centigrade degree.
| MODEL | POWER(kW) | ROTATION(r/min) | VOLUME(m3/h) | PRESSURE(Pa) | |||||
| 3.5A | 3 | 2900 | 1473~2154 | 2950~2608 | |||||
| 4A | 5.5 | 2900 | 2198~3215 | 3852~3407 | |||||
| 7.5 | 2900 | 3000~5000 | 2835~1060 | ||||||
| 4.5A | 7.5 | 2900 | 3130~3685 | 4910~4776 | |||||
| 11 | 2930 | 3963~4792 | 4661~4256 | ||||||
| 5A | 15 | 2930 | 4293~6349 | 6035~5381 | |||||
| 18.5 | 2930 | 6762 | 5180 | ||||||
| 5.6A | 22 | 2930 | 6032~7185 | 7610~7400 | |||||
| 30 | 2950 | 7766~9500 | 7218~6527 | ||||||
| 6.3A | 45 | 2970 | 8588~11883 | 9698~8915 | |||||
| 55 | 2970 | 12699~13525 | 8636~8310 | ||||||
| 7.1D | 75 | 2970 | 12292~14643 | 12427~12078 | |||||
| 110 | 2980 | 15826~19360 | 11776~10635 | ||||||
| 8D | 132 | 2980 | 17584~20947 | 15955~15504 | |||||
| 200 | 2980 | 22640~27696 | 15112~13634 | ||||||
| 30 | 1470 | 13001~13848 | 3421~3294 | ||||||
| 18.5 | 1450 | 8792~12166 | 3834~3529 | ||||||
| 9D | 45 | 1480 | 16118~19717 | 4620~4181 | |||||
| 30 | 1470 | 12518~14913 | 4869~4736 | ||||||
| 10D | 75 | 1480 | 23612~30052 | 5761~5065 | |||||
| 55 | 1480 | 17172~21465 | 6143~5920 | ||||||
| 11.2D | 132 | 1490 | 39205~42221 | 6691~6382 | |||||
| 110 | 1480 | 24126~36189 | 7747~7009 | ||||||
| 37 | 980 | 23959~27953 | 3031~2763 | ||||||
| 30 | 980 | 15973~21963 | 3346~3140 | ||||||
| 12.5D | 250 | 1490 | 46117~58695 | 9103~7993 | |||||
| 160 | 1490 | 33540~41925 | 9713~9356 | ||||||
| 75 | 990 | 33309~38860 | 3785~3450 | ||||||
| 45 | 980 | 22206~30533 | 4179~3921 | ||||||
| 14D | 75 | 990 | 31197~35097 | 5262~5188 | |||||
| 250 | 1490 | 47121~53011 | 12285~12109 | ||||||
| 16D | 500 | 1490 | 70339~79131 | 16250~16014 | |||||
| 220 | 990 | 75675~81496 | 5971~5696 |
