Product Details
| Brand Name | ATC | Place of Origin | Zhejiang, China | |
| Model Number | 2w-160-15 | Material | Brass | |
| Structure | Shutoff | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Solenoid | |
| Port Size | 1/2"1/4"1/6"1/8" | Media | Gas | |
| Temperature of Media | High Temperature |
Product Description

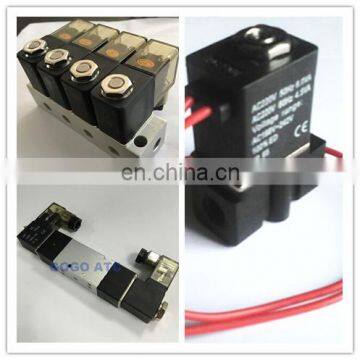

brass 12v dc low pressure gas solenoid valve
Technical Data:
Model NO. | 2w-025-06 | 2w-025-08 | 2w-040-10 | 2w-160-10 | 2w-160-15 | 2w-200-20 | 2w-250-20 | 2w-320-32 | 2w-400-40 | 2w-500-50 |
Pipe size | 1/8” | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4“ | 1 1/2” | 2” | |
Orifce size | 2.5mm | 4mm | 4mm | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm |
CV valve | 0.23 | 0.6 | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
fuild | Air, water, ol, the neutral gas,liquid | |||||||||
Service voltage | AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10% | |||||||||
Operating | Direct acting | Type | Normally closed | |||||||
Body Material | Brass | viscosity | (Below)20CST | |||||||
Working pressure | Water, air;0-10kgf/m2 ;oil:0-7kgf/m2 | |||||||||
Material of seal | Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON | |||||||||
LPG, natural, butan, propane gas solenoid valve Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, etc.
5.Pressure:2W21: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
