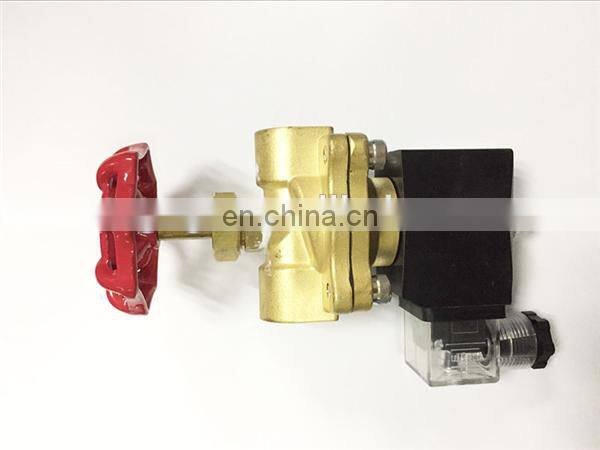

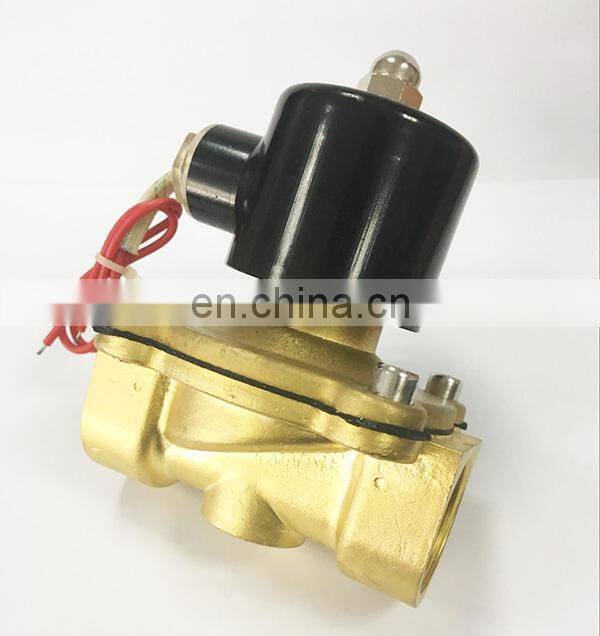

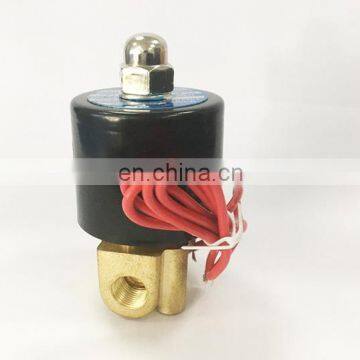

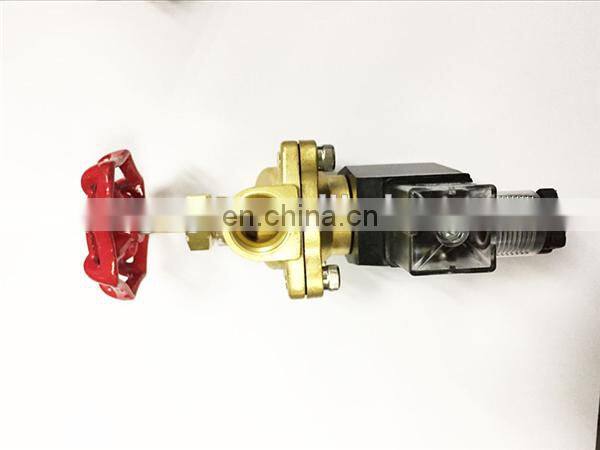

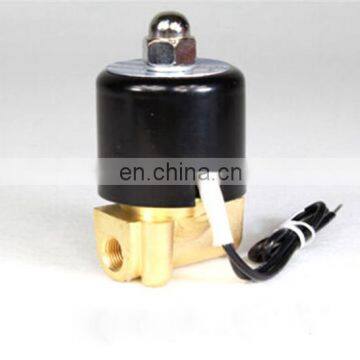

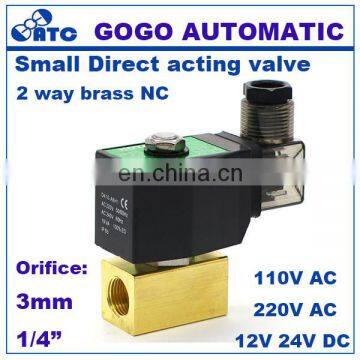

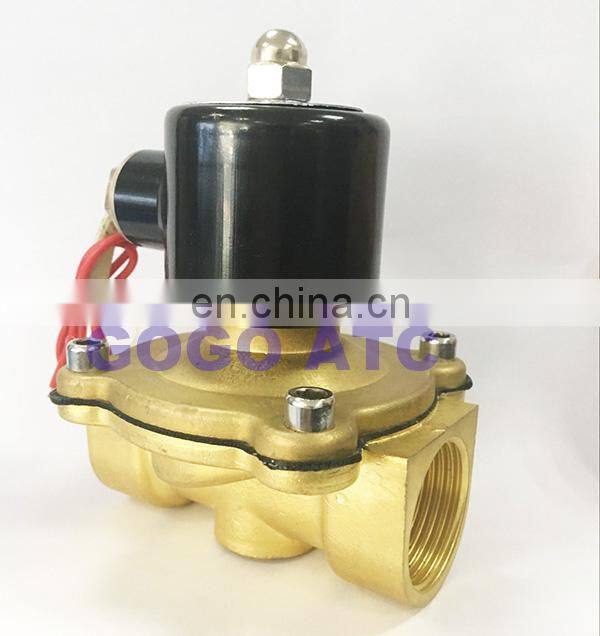

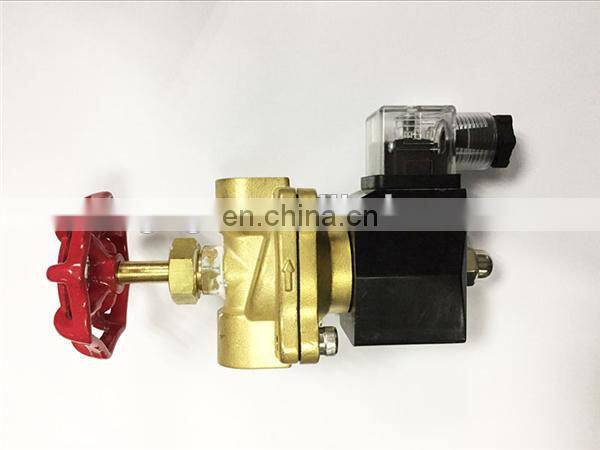

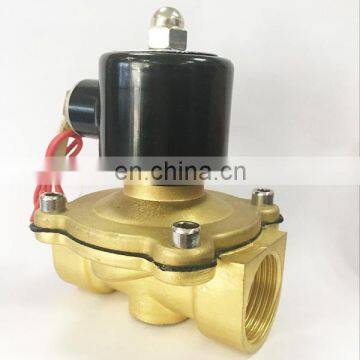

Alcohol Solenoid Valve
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | ATC | Place of Origin | Zhejiang, China | |
| Model Number | 2w-160-15 | Material | Brass | |
| Structure | Shutoff | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Solenoid | |
| Port Size | 1/2"1/4"1/6"1/8" | Media | Gas | |
| Temperature of Media | High Temperature |
Product Description
brass 12v dc low pressure gas solenoid valve
Technical Data:
Model NO. | 2w-025-06 | 2w-025-08 | 2w-040-10 | 2w-160-10 | 2w-160-15 | 2w-200-20 | 2w-250-20 | 2w-320-32 | 2w-400-40 | 2w-500-50 |
Pipe size | 1/8” | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4“ | 1 1/2” | 2” | |
Orifce size | 2.5mm | 4mm | 4mm | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm |
CV valve | 0.23 | 0.6 | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
fuild | Air, water, ol, the neutral gas,liquid | |||||||||
Service voltage | AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10% | |||||||||
Operating | Direct acting | Type | Normally closed | |||||||
Body Material | Brass | viscosity | (Below)20CST | |||||||
Working pressure | Water, air;0-10kgf/m2 ;oil:0-7kgf/m2 | |||||||||
Material of seal | Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON | |||||||||
Electrical Specifications
1) Solenoid: 24 VAC.
2) Inrush volt-amp: 24 VAC - 11.50 VA.
3) Inrush current: 0.34 amp.
4) Hold ng volt-amp: 24 VAC - 5.75 VA.
5) Holding current: 0.2 amp.
LPG, natural, butan, propane gas solenoid valve Voltage:
DC - 12V,24V AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%
Coils :S51B, 40VA(AC), 30W(DC), IP65 100%ED
SD01B, 35VA(AC),30W(DC),IP65,100%ED
SD02B,flying lead 35VA(AC),30W(DC),IP65,100%ED
LPG, natural, butan, propane gas solenoid valve Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Product size
Packaging
