Product Details
| Brand Name | pneumatic heat rosin press | Place of Origin | Zhejiang, China | |
| Model Number | SC series | Power | Pneumatic | |
| Standard or Nonstandard | Standard | Structure | Series Cylinder | |
| Shaft Diameter | 10, 20, 30, 50 | Maximum Stroke | 2000 | |
| Body Material | Aluminum |
Product Description
SC standard airtac type single acting pneumatic cylinder
pneumatic heat rosin press parts
Specification
1.Airtac type SC standard pneumatic cylinder. .
2.Good quality and competitive price
3.Magnet: optional
4.1 year warranty

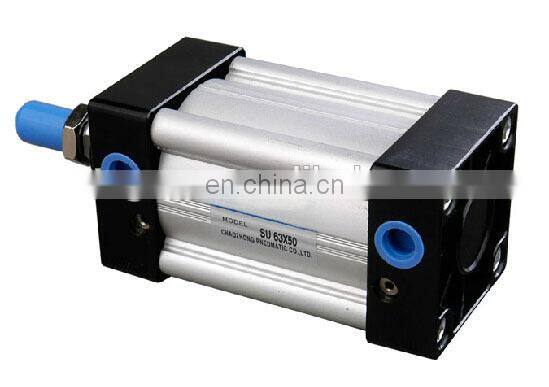

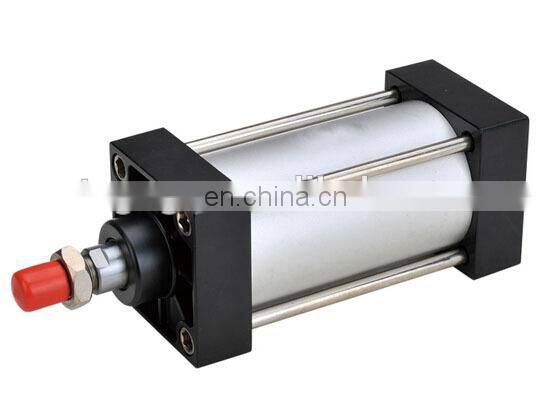

AIRTAC SC Series Double Acting Standard Pneumatic Cylinder-Air Cylinder
Features:
1).Normal bore size from 32mm to 200mm,bigger size from 250mm to 400mm can also be provided.
2).Provided with adjustable cushion on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.
3).Spray painted cylinder head and internal hard anodized cylinder body.
4).With self lubricating bearing,the piston rod is lubrication free.
5).Magnet and sufficient fixing style are available.
6).Precision grinding piston rod,cylinder parts were processed by high precision CNC machine and good seals to guarantee good action and long lifetime.
7).Double ends SCD,stroke adjustable SCJ and tow –stage SCT can also be supplied.
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT2/1 | PT1/2 | PT3/4 | PT3/4 |
| Action | Double Action | ||||||||
| Working Fluid | Filtered Compressed Air | ||||||||
| Working Pressure | 0.1-0.9MPa | ||||||||
| Proof Pressure | 1.5MPa | ||||||||
| Working Temperature | ~5~70 °C | ||||||||
| Cushion | Adjustable Air Cushion at both ends | ||||||||
| Piston rod thread | M10X1.25 | M12X1.25 | M16X1.5 | M20X1.5 | M27X2.0 | M36X2.0 | |||

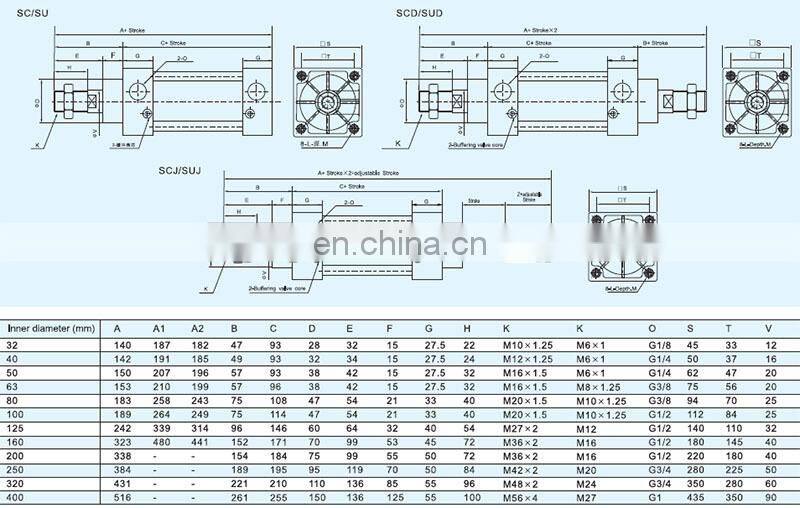

Dimensions
| No | Description | Material |
| 01 | Cylinder Tube | Aluminium Alloy |
| 02 | Piston | Aluminium Alloy |
| 03 | Piston Rod | High Carbon Steel(Chrome Plated With Attrition Treatment) |
| 04 | Front Cover | Aluminium Alloy |
| 05 | End Cover | Aluminium Alloy |
| 06 | Front Cover Seal | NBR |
| 07 | Piston Seal | NBR |
| 08 | Cover Gasket | NBR |
| 09 | Piston Rod O-ring | NBR |
| 10 | Cushion Gasket | NBR |
| 11 | Bush | Oil Impregnated Powder Copper |

Packing
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Shipment and Payment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
About us
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
