2 Way Brass G1" DN25 4-20ma 6Nm Proportional Control Ball Valve for Central Air-conditioning, AC100-240V
- T/T Credit Card
You May Like
-
2 Way Brass PID Regulating Valve G3/4" DN20 4-20ma 4Nm Electric Ball Valve for HVAC System , AC100-240V
-
2 Way Brass 0-10VDC G2" DN50 8Nm ACDC24V Proportional Electric Ball Valve for HVAC
-
Brass 0-10VDC G11/4" DN32 6Nm 3 Way Motorized Flow Control Valve for HVAC System
-
2 Way Brass 0-10VDC G11/4" DN32 6Nm Electric Valve for Water Treatment Equipment
-
2 Way Brass 0-10VDC G1" DN25 6Nm Proportional Electric Ball Valve for Water Treatment Equipment
-
3 Way Brass 0-10VDC G1/2" DN15 4Nm Proportional Motorized Valve for Central Air-conditioning
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | B225-DA6MU230-A | Material | Brass | |
| Application | General | Structure | Ball | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Port Size | 1" | |||
| Media | Water | Temperature of Media | Medium Temperature |
Product Description

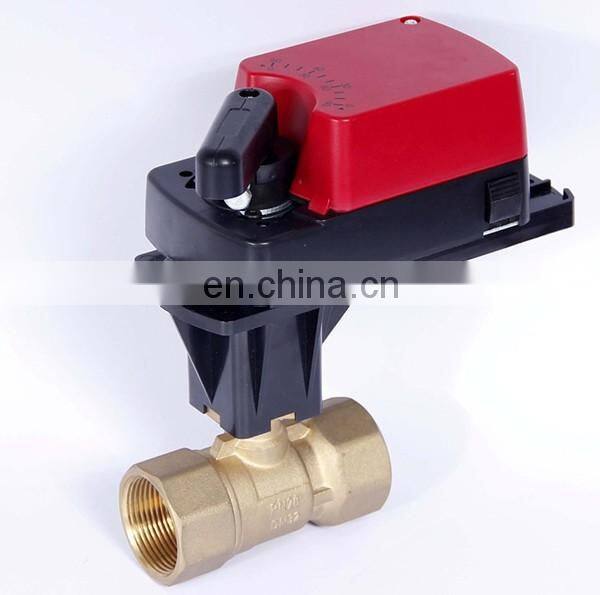

2 way brass G1" DN25 4-20ma 6Nm proportional control ball valve for central air-conditioning, AC100-240V
Model: B225-DA4MU230-A
Volatage: AC100-240V
Features:
Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Adjustable flow ratio, high reliability, high life, the use of graphite reinforced PTFE valve seals, valve stem seals double EPDM. Built-one assignment butterfly, no afraid of reverse pressure. Equal percentage flow characteristic. High Off strength 1.4MPa. Rated working pressure PN40. Maximum working pressure 0.35Mpa. With manual actuator shorted button. -5 To 121 ° C operating temperature. Suitable for central air-conditioning, heating system, hot and cold water, steam humidification.
Application
HVAC system
Heating system
Water treatment system
Industrial equipments
Operational mode

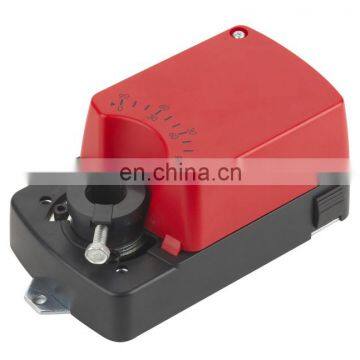

The actuator is controlled by a modulating on/off , proportional control system and move the ball of the valve, to the opening position dictated by the control signal.
Medium: cold/hot water, with 50% glycol,100 kPa saturated steam
Temperature of medium: 2°C...180°C
Rated pressure: PN20
Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH Size: 1’’
Valve type: 2-way
Flow characteristic: equal percentage

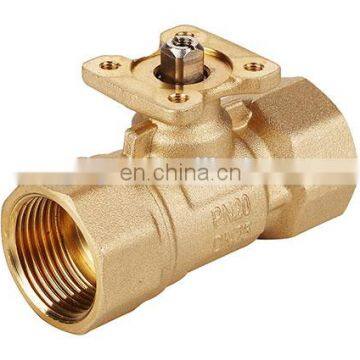

Valve body: forged brass
Seal: PTFE
Ball: SS304
Shaft: brass

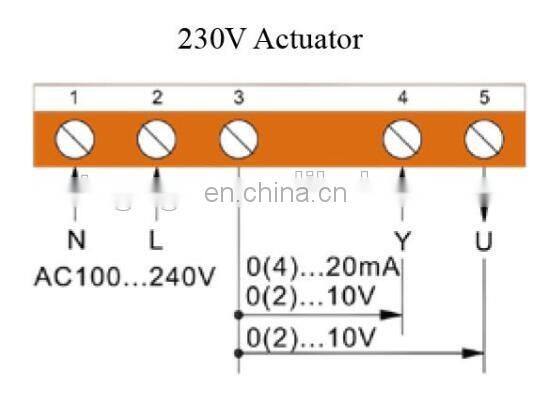

Proportional (4-20Ma)
Output torque: 6N.m ; Angle of rotation: 90°
Manual handle Automatic overload protection system
Protect rank: IP54 Operation time: 35-45S
PHOTOS :
