Low Pressure PP-H Plastic Swing Check Valve 1/2" to 12"
- Ningbo
- T/T Credit Card
You May Like
-
Compressor Check Valve Drain Cock Valve Kitz Globe Valve
-
Electric Motor Operated Valve Gate Valve Picture Ventilation Butterfly Valve
-
Electric Globe Valve Mini Servo Valve Wafer Knife Gate Valve
-
Damper Check Valve Handle Type Ball Valve Valtaco Ball Valves
-
Inflatable Pool Valve Air Reducing Valve Electric Proportional Valve
-
3 Way Pneumatic Control Valve End Entry Ball Valve Brass Ball Valve With Nipple
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | MI-05 | Material | Plastic | |
| Structure | Check | Standard or Nonstandard | Standard | |
| Pressure | Low Pressure | Power | Solenoid | |
| Port Size | 1/2'' - 2'' | |||
| Temperature of Media | Normal Temperature |
Product Description

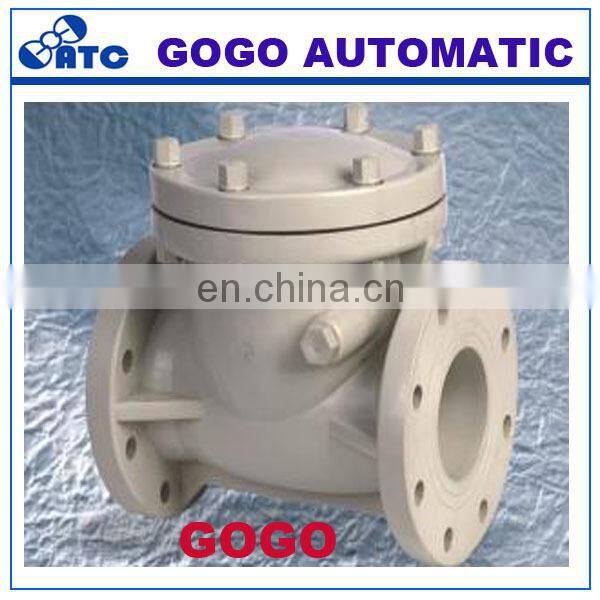

low pressure PP-H plastic swing check valve 1/2" to 12"
Specification
swing check valve is a butterfly-style check valve in which the disc, the movable part to block the flow, swings on a hinge or trunnion, either onto the seat to block reverse flow or off the seat to allow forward flow. the valve shut off depends on gravity (weight of disc) and reverse flow. The pivot point of the swing check is outside the periphery of the disc and, the greater the head, the greater the possibility that the fluid will flow back through the valve before the disc can shut off. To effect complete shut off, the disc of a swing check valve must travel through a 90 angle arc to the swing check valve seat.
PP-H (Beta-PP BE60-7032) is a HMW and low melt flow rate HOPP, by β modification, it has delicate crystal structure, which make it excellent impact strength at low temperature, it also improve the hydrolic pressure, corrosion resist property, working temperature, and lower the expansion coefficient
FEATURES
• Sizes from 1/2” to 12”.
• All PP-H body.
• EPDM seal.
• working temperature from -14℃ to 95℃.
• working pressure PN10 bar.
• Minimum flow resistance, low pressure drop.
• Horizontal installation.
• Top access cover facilitates maintenance without body removal from pipeline.
• ANSI,JIS,DIN flange connection
• Minimum back pressure to seat disc tightly.
APPLICATION AREA
• acid pickling piping line
• electroplating liquid carrying.
• pharmaceutical factory acid and carrying.
• oil and gas industrial.
• textile mill,Leather Factory acid piping line.
• mining plant, metallurgy plant, fertilizer plant waste liquid piping line.
• semiconductor water treatment piping line.
• waste water treatment piping line
• food industrial salt water piping line
• chlorine plant
