Home > Products > Water solenoid valve GOGO > GOGO 150Bar GSPG-06 2 way water high pressure solenoid valve 1/4" BSP 220V 24V Orifice 6mm N.C stainless steel 304 valve
GOGO 150Bar GSPG-06 2 way water high pressure solenoid valve 1/4" BSP 220V 24V Orifice 6mm N.C stainless steel 304 valve
- T/T Credit Card
You May Like
-
200bar 2 way water high pressure solenoid valve 1/2" 220V Orifice 15mm N.C SPG stainless steel 304 large flow valve
-
GOGO GSPU-03T 20bar PTFE Seals 2 way water solenoid valve 1/4" BSP 220V 12V 24V Orifice 3mm N.C stainless steel 304 valve
-
150bar 2 way water high pressure solenoid valve 1/4" 220V 24V 12V DC Orifice 2mm N.C GSPG-02 stainless steel 304 valve
-
2 way Pneumatic plastic mini solenoid valve 2P025-06/08 Port 1/8 1/4 NPT 110V 220V NBR wire lead type electric control valve
-
3 way plastic solenoid valve mini 3P025-06/08 Port 1/8 1/4 BSP 220V 110VAC 12 24V electric control oil valve with wire lead type
-
GOGO 3 way plastic solenoid valve mini 3P025-08 Port 1/4" BSP 220V AC electric control oil valve with wire lead type
Product Details
| Brand Name | 24v solenoid valve water controller, ATC GOGO AUTOMATIC | Place of Origin | Zhejiang, China | |
| Model Number | ETD series, SPG-06 | Structure | Control | |
| Power | Solenoid | Port Size | 1/2", G1/4" | |
| Temperature of Media | Medium Temperature |
Product Description
GOGO 2 way Stainless Steel water high pressure solenoid valve
1/4" BSP normal close GSPG with plug type
GSPG-06 Orifice: 6mm ,Pressure: 1.5-150bar
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Voltage: 110V AC ,220V AC ,12V DC ,24V DC .
SPG Series High pressure Slenoid valve
| Model | Pipe | Orifice mm | CV | Pressure(bar) | |||||
| AC | DC | ||||||||
| Air | water | Oil | Air | water | Oil | ||||
| Brass body follows: | |||||||||
| GSPG-06 | 1/8" 1/4" | 6 | 0.8 | 0.5-150 | 0.5-150 | 0.5-120 | 0.5-150 | 0.5-150 | 0.5-120 |
1.Specification
| Pattern: | Two-port two-position | |||||
| Principium: | directly acting type | |||||
| Control mode: | normally close | |||||
| Valve body: | SS304 | |||||
| Diaphragm material: | NBR<80°C ;FKM: <150°C;P: <180°C | |||||
| Voltage: | AC220V AC110V DC12V DC24V | |||||
| Medium: | air ,water, hot water , oil ect. | |||||
| Application: | high pressure large-flow normally air water control system | |||||
| Orifice | Power | Class of Insulation | ||
| AC | AC | DC | ||
| VA | W | W | ||
| DN1.2 | 39 | 24 | 30 | H |
| DN1.5/2.5 | 22 | 12 | 18 | |
| DN6 | 22 | 12 | 18 | |

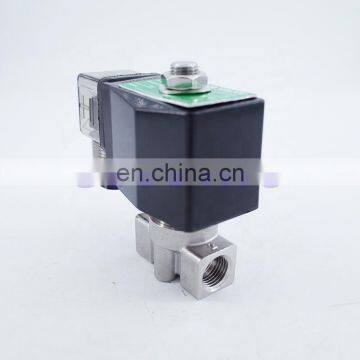

3 .Picture
4.Packing
one pieces valve + a carton
Shipment
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
