Denison Hydraulic High Pressure T6GCC T7GBB Vane Pump

Name: Denison Hydraulic High Pressure T6GCC T7GBB Vane Pump
Brand: Nvicks
Availability: InStock

FOB Price

US$ 450 - 470 / Piece

1 Piece(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Nvicks

Place of Origin

Zhejiang, China

Product Description

Denison T6GCC ,T67GCB ,T7GBB Series Vane pump

High pressure and high performance pin type vane pump is applicable to engineering machinery,especially to mobile machinery.

The main Features

1.The improved bearing structure and rectangle spline shaft design can be driven by motor or gearbox directly.

2.Double shaft seal structure, is fit for bad situations of mobile machinery.

3.Adopt insert structure, the cartridge kit of T6C and T7B can be interchangeable completely,very convenient for repair.

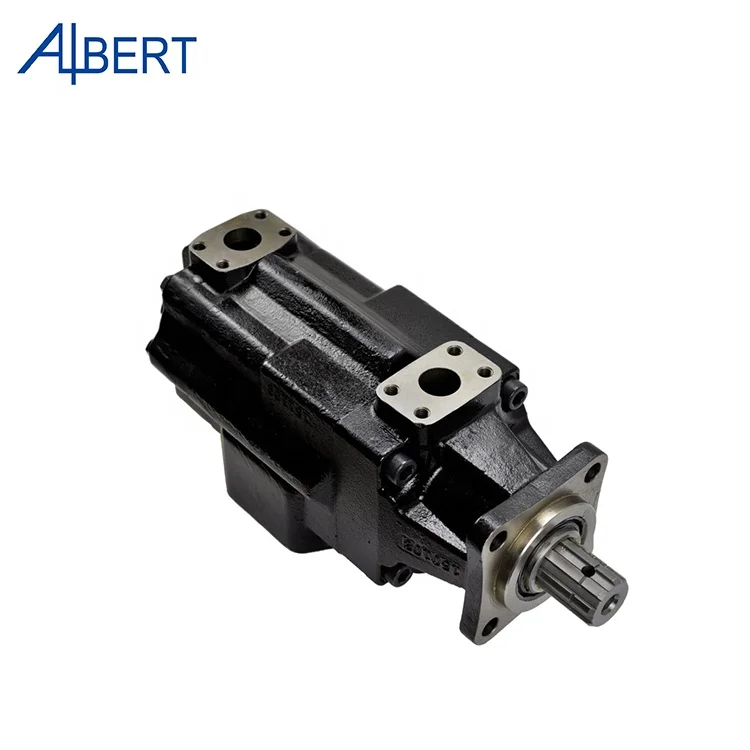

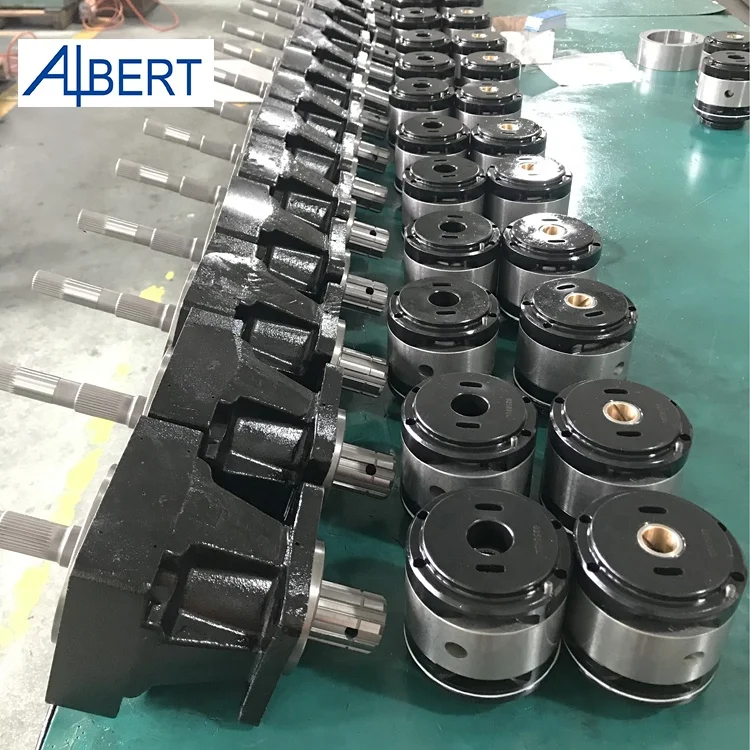

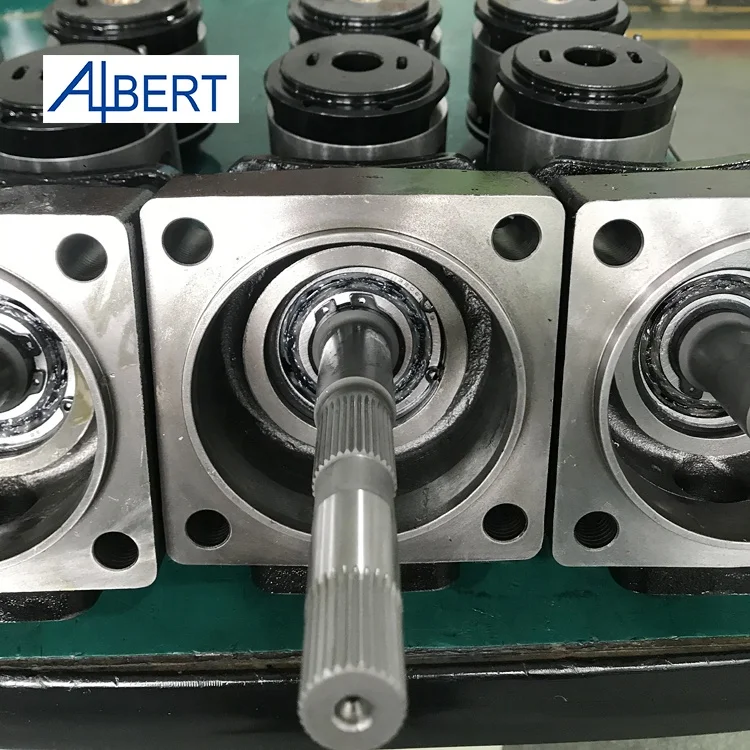

Products Show

Model Designation

（F3-）

T6GCC

-B10

-B17

-6

-B

Note

Series

Flow code

Shaft type

Rotation

Outlet position

Design No.

Sealing level

Port dimensions

No-marking: Petroleum series oil emulsification fluid water glycol fluid F3 : phosphate ester fluid

T6GCC

B03,B05, B06,B08, B10,B12, B14,B17, B20,B22, B25,B28, B31

-6 : See Installation Dimensions

(Viewed from shaft end of pump) R-right hand for clockwise L-left hand for clockwise

(Viewed from cover end of pump) 00-Opposite inlet port 01- Inline with inlet 02-90°CCW from inlet 03- 90°CW from inlet

1-S1: NBR Nitrile rubber 5-S5: Fluororubber

00:Flange 1''BSPP 01:Flange SAE4 Bolts(UNC) see installation dimensions

T6GCB

B03,B05, B06,B08, B10,B12, B14,B17, B20,B22, B25,B28, B31

B02,B03, B04,B05, B06,B07, B08,B10, B12,B15

T7GBB

B02,B03, B04,B05, B06,B07, B08,B10, B12,B15

B means the two steering valve plate structure.

The data of relevant series, model are unanimous.Please see T6 series single pump data.

Port Positions (viewed from shaft end of pump)

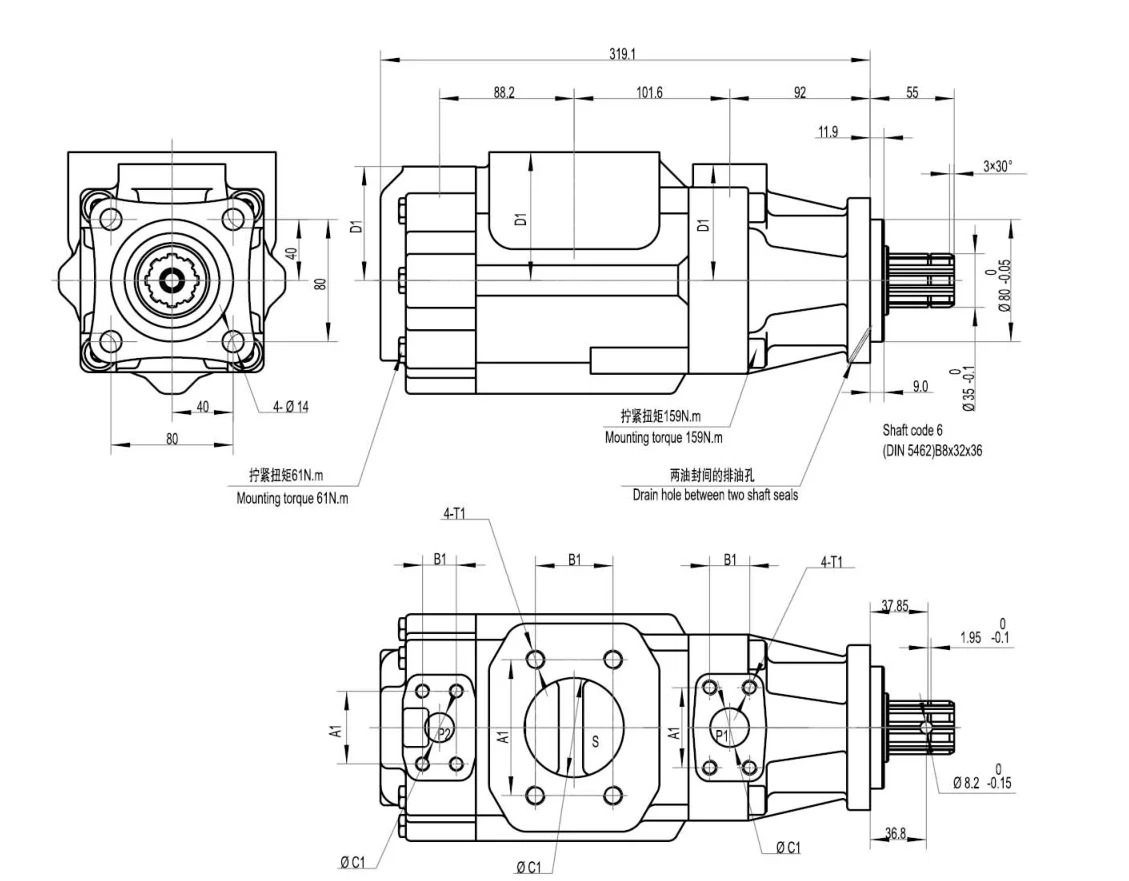

Installation Dimensions

Oil port

Flange

Install Dimensions(mm)

Φc1

T1 Thread

T6GCC T67GCB T7GBB

1''

F08

26.2

52.4

25.4

76.2

3/8''-16UNC*19.0

01-11: 3/4''

F06

22.2

47.6

76.2

3/8''-16UNC*19.0

00-10: 1''

F08

26.2

52.4

25.4

74.7

10-11: 1-1/2''

F20

50.8

88.9

63.5

84.1

1/2''-13UNC*23.9

00-01: 3''

F24

61.9

106.4

76.2

84.1

5/8''-11unc*28.4

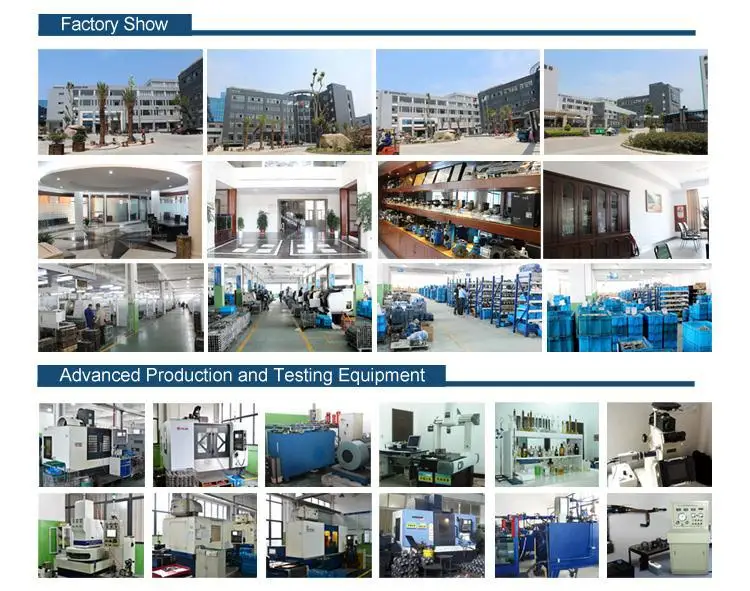

Our Company

Packing & Delivery

Packing Details : Styrofoam, carton and wooden case.
Delivery Details : 3-30 days after received 30% payment.

Certifacate Showing

Trade Information

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
