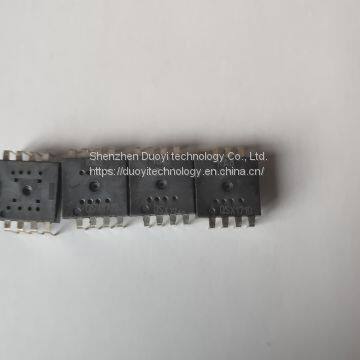

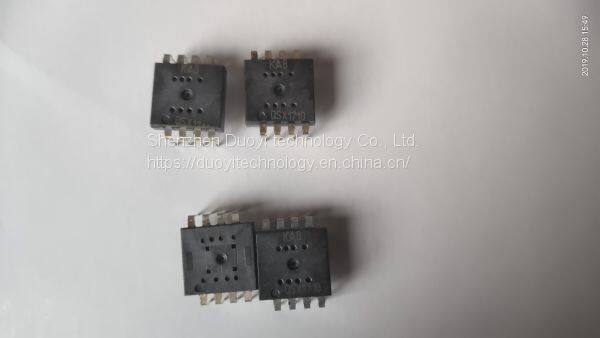

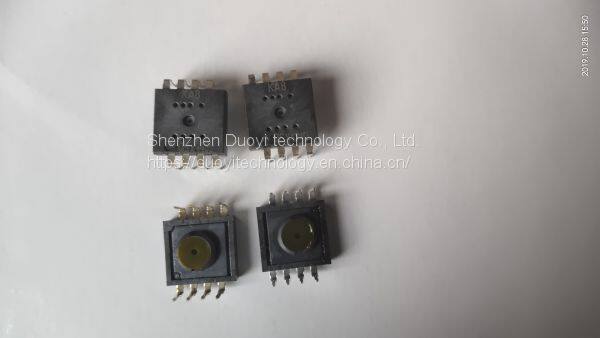

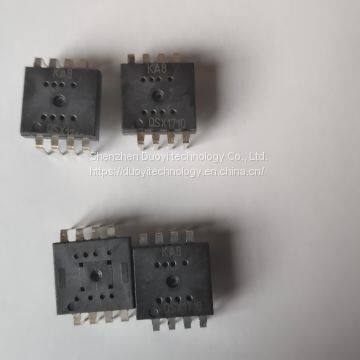

Wireless Mouse IC Optical Mouse Sensor KA8
US$ 0.11 - 0.15
/ Piece
20 Pieces(Min. Order)
- Shenzhen
- T/T
You May Like
-
Wireless Mouse IC Optical Mouse Sensor V108
-
Wireless Mouse IC Optical Mouse Sensor MX8650A
-
Wireless Mouse Transmitting and Receiving Modules BYKC-V1.8
-
Wireless Mouse Transmitting Module BYKC-V1.8 and Wireless Keyboard PCBA Share Same Receiver
-
Bluetooth 5.1/2.4GHz 2 in 1 RF Modules BYKC-SM006 for Wireless Mouse
-
Wireless Mouse SMT Transmitter BYKC68MS and Receiver
Product Details
| Place of Origin | China | Model Number | KA8 |
Product Description
●Signle power supply ●Power range 1.7V -3.2V ●Precision optical displacement prediction technology ●Very good 2-D motion sensor ● Support extremely fast moving speed ● Maximum speed of movement 28 Inch/sec CPI ●CPI: 400/ 500/ 600/ 800/ 1000(Default)/ 1200 / 1600 ●Once stop moving, immediately enter the energy saving model ● Data transmission is achieved through serial interfaces ●Built-in low power timer (LPT),sleep1/sleep2 models ●The mouse can be awakened by the MOTSWK pin, and the sensor is controlled to wake up from the sleep mode. ● Built-in oscillator ●LED current-limiting resistance 68-470 Ohm(Determine by the actual plane),recommend 100 Ohm. ● DIP8 package
