Electrical Test of Glow Wire Apparatus

Wooden frame

The device is designed to carry out fire hazard testing on electrotechnical products in accordance with the provisions of International standards.

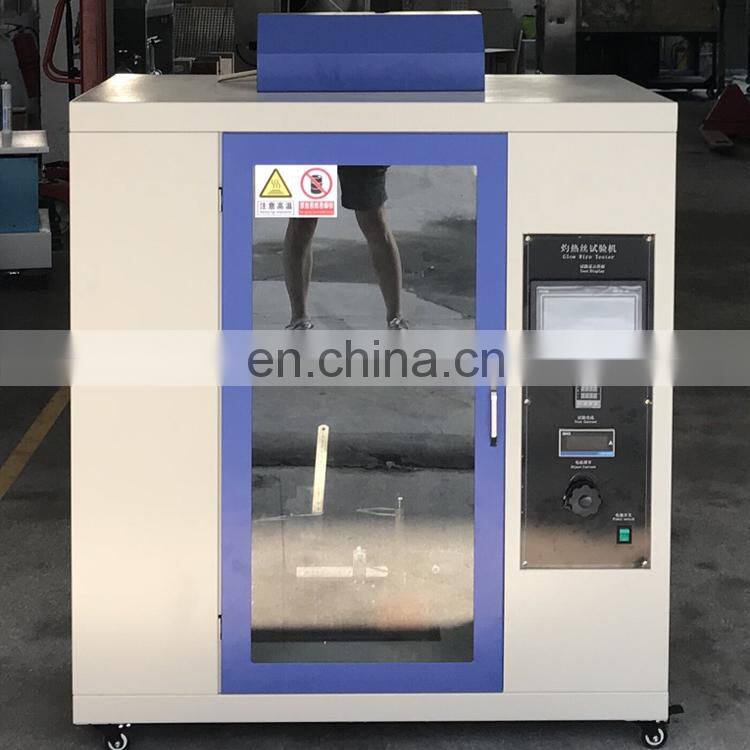

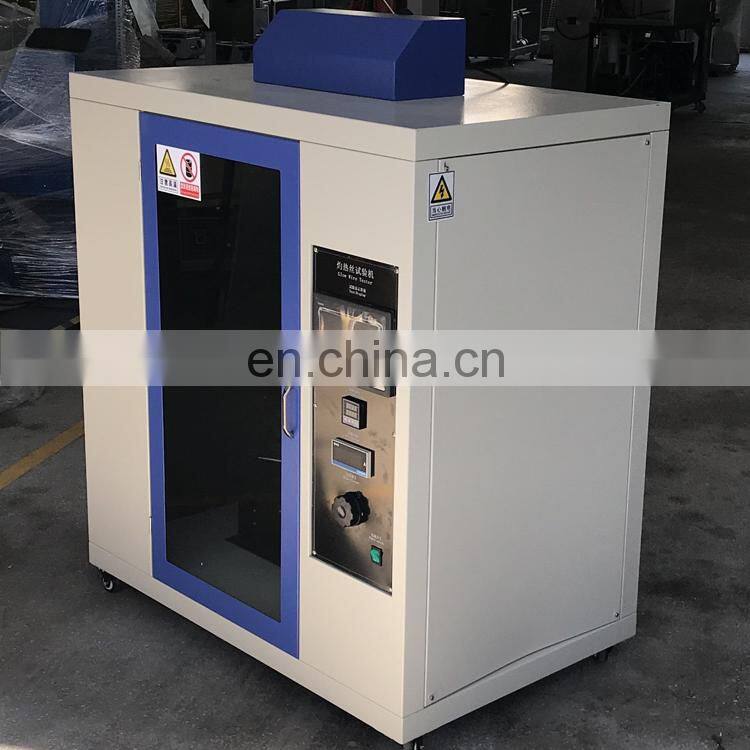

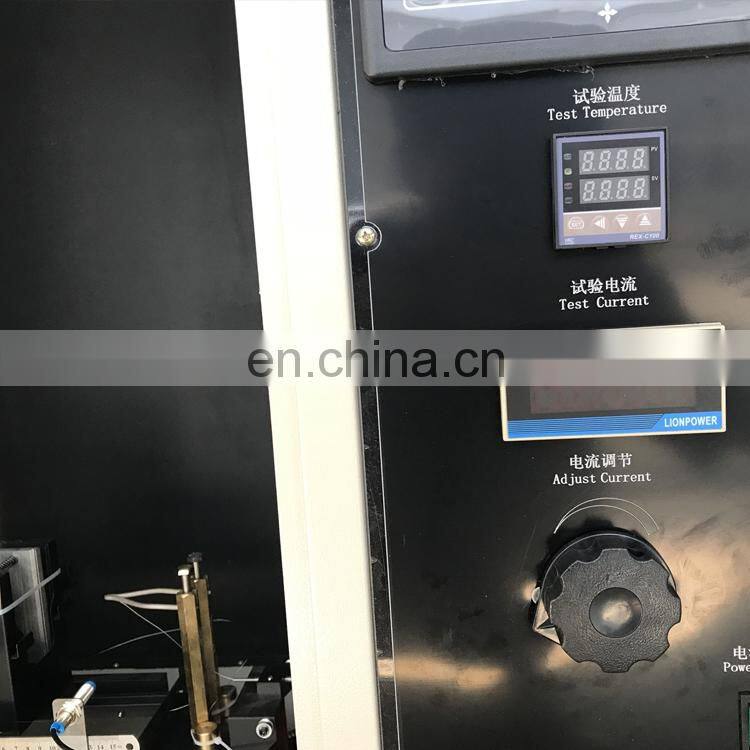

The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter. A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.

1.The device is designed to carry out fire hazard testing on electrotechnical products in accordance with the provisions of International standards.

2.The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.

3.A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied, accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.

Technical parameters of glow wire testing apparatus Flammability glow-wire testing machine

1, Glow wire temperature: 500 ~ 1000 °C± 2 °C continuous adjustable

2, Searing time: 0-999.9 s ± 0.1 s adjustable (usually selected for 30s)

3 Light-off time: 0-999.9 s ± 0.1 s, automatic recording, manual timeout

4, Fireouttime: 0-999.9 s ± 0.1 s, automatic recording, manual timeout

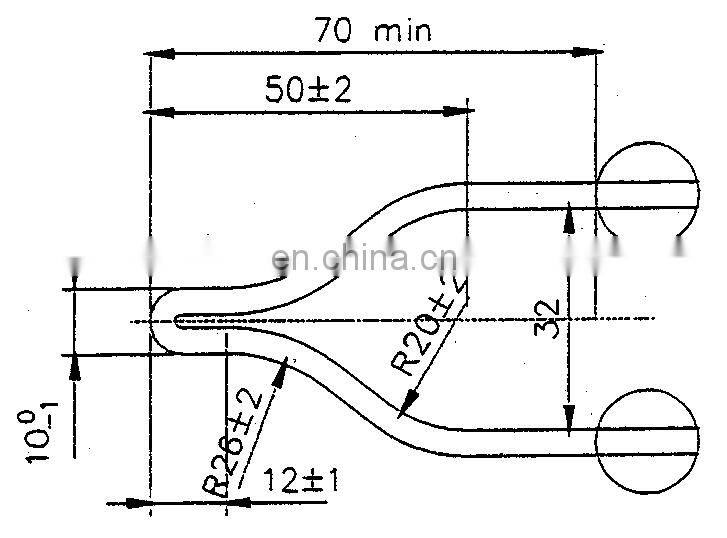

5.Glow Wire Element Ni/Cr wire, diameter: 4mm

6.Current Range: 0 to 200 A

7.Thermocouple: Type K (Ni/Cr - Ni/Al)

8.Thermocouple Size O/D: 0.5 mm

9.Temperature Resolution: 1C

10.Traverse Unit: Horizontal

11.Force: 1 N±0.2N

12.Maximum Travel : 14.5 cms

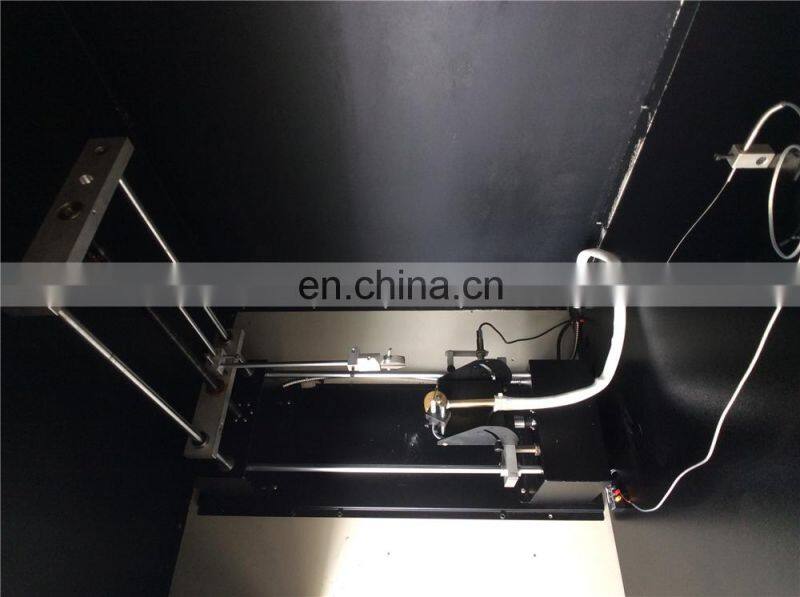

Details of glow wire testing apparatus Flammability glow-wire testing machine
