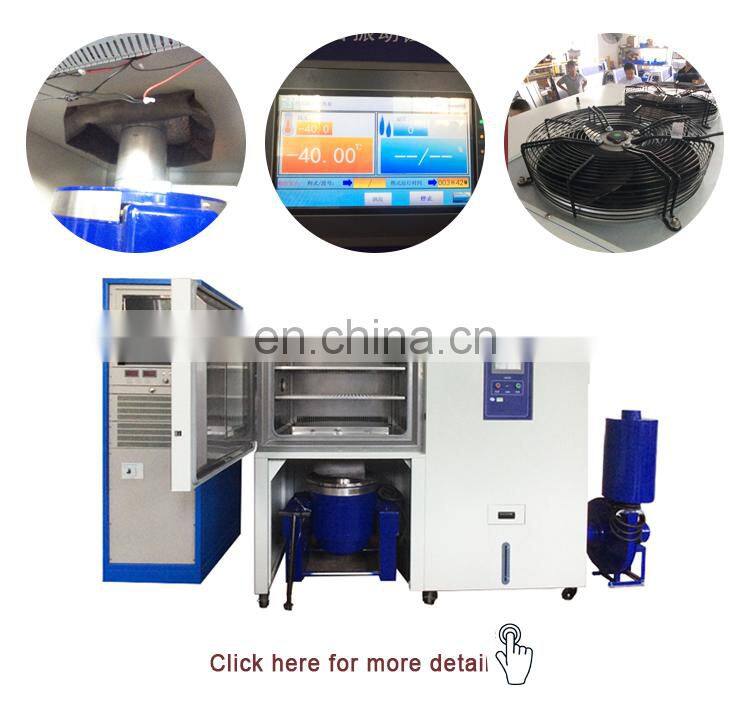

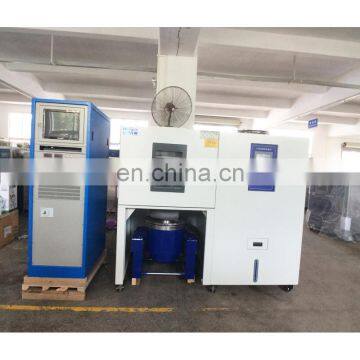

Laboratory Electronics Heating Freezing Test Machine Environment Humidity Temperature Combined Vibration Chamber With Facto

Description
Combined environmental test equipment integrated temperature, humidity, vibration of the three functions of the test box.With rapid temperature change rate, temperature, and humidity integrated test environment and the vibration function.

Application

Combined environmental test equipment provides the change of temperature and humidity environment for the aerospace, aviation, petroleum, chemical, electronics, communication and other scientific research and production units, at the same time in the test chamber electric vibration stress according to the provisions of the cycle is applied to the sample, for the user of the machine (or components), electrical appliances, instruments, materials etc. temperature and humidity, vibration stress screening test, in order to assess product adaptability or experiment on behavior evaluation.

Detail Technical Parameters

 Control System
1. Display: 7-inch TFT color LCD display
2. Setting method: Chinese / English menu, true color touch screen input
3. Multiple control methods: custom control / program control / temperature linear slope control
4. Program capacity: up to 127 program groups, each program group can edit 100 program segments, the total number of program segments is 1270.
5. Temperature measurement range: -80.00 ℃ --200.00 ℃
6. Humidity measurement range: 1.0%-100% RH
7. Resolution: 0.1 ℃
8. Control accuracy: temperature; 0.1 ℃ humidity; 0.1%
9. Sampling temperature: 30, 60, 120S / time
10. Control mode: The PID output of the controller can automatically adjust the cooling or heating output, with PID self-tuning function

Safety protection
1. Compressor overheating, overcurrent, overpressure protection,
2. Condensing fan overheating protection
3. Controller AC power lightning protection device
4. Alarm and protect for abnormal water supply and drainage.
5. Over-temperature protector in the box (adjustable),
6. Test box temperature fuse, air-conditioning channel limit over-temperature protection
7. Centrifugal fan motor overheating protection
8. The main power supply is lack of phase, leakage, overload, short circuit protection, and the main power supply is equipped with a no fuse protection switch.
9. Travel stroke protection device

1. Are your company a trading one or a factory?

Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China

2. After an order is placed, when to deliver?

Usually about 15 working days, if we have finished products, we can arrange delivery within 3 working days.

Please note that our production lead time depends on the specific project and the number of projects.

3. What about the warranty with after - sales services?

12 months warranty.

After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.

4. What about the services and product' quality?

Service: ,Design service,Buyer lable service.

Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
