Dongguan Electrodeposited Coatings Ocean Climate Corrosion Salt Spray Mist Test Chamber
- T/T Credit Card
You May Like
-
Dongguan High Quality Salt Spray Tester for Corrosion Resistance Test With Two Nozzles
-
Dongguan Factory Price Salt Spray Corrosion Test Equipment
-
Dongguan TEMI 880 Touch Screen Controller Climate Chamber Salt Spray Tester for Metal Coating Test
-
Dongguan Laboratory Paint Coating Corrosion Salt Spray Chamber for NSS CASS Test
-
Dongguan Programmable Salt Spray Test Cabinet Salt Fog Corrosion Chamber
-
Dongguan ASTM Standard Cyclic NSS Salt Spray Corrosion Test Apparatus Machine Price
Product Details
| Brand Name | Hongjin | Place of Origin | China | |
| Model Number | HY-60T | Power | Electronic |
Wooden package,Non-fumigation
Product Description
use
The salt spray test machine is used for the surface treatment of various materials, including coatings, electroplating, organic and inorganic coatings, anodizing, anti-rust oil and other anti-corrosion treatments, and testing the corrosion resistance of the products.
Materials used:
a laboratory uses P.V.C polyvinyl chloride board, acid and alkali resistant, easy to clean. (Germany (Yallis)
b The test chamber sealing cover is made of transparent impact-resistant acrylic sheet. (Germany NSP)
c reagent supplement bottle with hidden low water level indicator light, easy to clean, not easy to break
d saturated air tank with SUS#304 stainless steel high pressure bucket insulation effect is best
e laboratory blue frame mining plane indexing frame, according to the standard requirements of 20 ° ± 5 ° angle, four sides of the fog and fog are completely consistent, the number of test pieces placed
Spray system:
a using the Bernotte principle to absorb salt water and then atomize, the degree of atomization is uniform, and the phenomenon of non-blocking crystallization can ensure the standard of continuous testing.
b nozzle: made of special glass, can adjust the amount of spray and the angle of spray
c spray amount: adjustable 1-2ml (80cm2 / hr) (16 hours average)
Air supply system:
The air pressure is 1Kg/cm2 in two-stage adjustment.
The first section is to adjust the 2-2.5 Kg/cm2 import type and has the function of filtering oil and water.
The second paragraph is a precision adjustment 1Kg/cm2 1/4PT pressure gauge.
Control System:
With the company's independent research and development control system, it can recover tens of thousands of hours of trouble-free operation in a harsh working environment. Integrate all current test methods (including continuous, interval).
Standard accessories
1 type shelf
2 storage stick
3 standard measuring cylinder
4 temperature indicator pin
5 filter (please replace it regularly)
6 fog collector 80cm2
7 tempered glass nozzle (replaced after 5000H)
8 defogging system
3.Specification parameter list of salt spray test machine:
| Model | HY-60 | HY-90 | HY-120 | HY-160 | HY-200 |
| Inner box size: | 60*45*40 | 90*60*50 | 120*100*50 | 160*100*50 | 200*100*50 |
| (L×W×H) cm | |||||
| Outside box size: | 108*108*65 | 135*112*75 | 190*128*125 | 230*128*125 | 270*128*125 |
| (L×W×H)cm | |||||
| Temperature range | 35℃~55℃; | ||||
| Test chamber temperature | NSS ACSS 35℃±1℃(CASS 50℃±1℃) | ||||
| Saturated air barrel temperature | NSS ACSS 47℃±1℃(CASS 63℃±1℃) | ||||
| Temperature fluctuations | ≤±0.5°C | ||||
| Temperature uniformity | ≤±2.0°C | ||||
| Lab volume | 110L | 270L | 600L | 800L | 1000L |
| Brine tank capacity | 15L | 25L | 40L | 65L | 80L |
| Multiple safety protection devices | Water shortage; over temperature ;phase protection | ||||
| Standard accessories | Test salt, measure bucket, tool etc 1 set | ||||
| weight (kg) | 60 | 90 | 180 | 280 | 450 |
| Power | AC220V 1Φ20A | AC220V 1Φ20A | AC220V 1Φ30A | AC220V 3Φ15A | AC220V 3Φ15A |

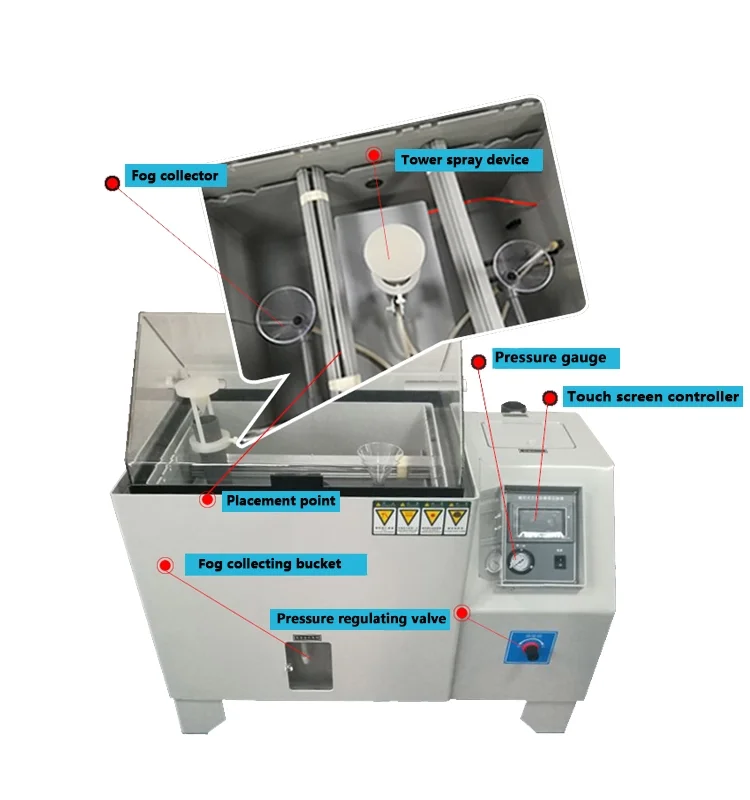

4.Picture analysis of salt spray test machine
