Easy to Control Digital Multi Use Vibration Tester With CE Certificate
- T/T Credit Card
You May Like
-
Multifunctional Vertical and Horizontal Vibration Table With 1 Year Guarantee
-
New Design 100kg Load Vibration Testing Machine With Good Quality
-
CE Certification 3 Axis Vibration Test Machine With Good Guarantee
-
Multifunctional 3-axis Xyz Vibration Test Machine With Great Price
-
Hot Selling 300 Vibration Testing Machine With 1 Year Guarantee
-
Easy to Control Advanced Electromagnetic Vibration Shaker 12 Months Guarantee
Product Details
| Brand Name | Hongjin | Place of Origin | China | |
| Model Number | HY-ZD-150 |
Wooden package,Non-fumigation
Product Description
Product Description
| Index | Advantages and characteristics |
Power amplifier power module | New generation IGBT driver module, single module 30kvA |
Logic module of power amplifier | PLC control, color LCD display, touch screen operation (domestic only) |

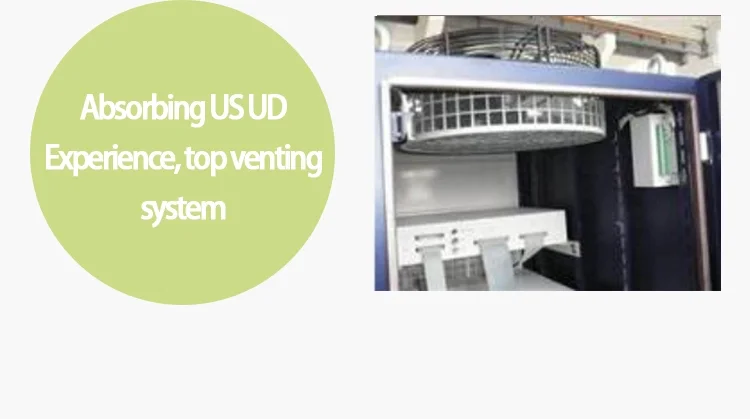

| Power amplifier cooling | Absorb the experience of British LDS, US UD and other companies, using the bottomair inlet, top exhaust system, efficient heat dissipation,to ensure good heat dissipation inside the box when the amplifier is running for a long time. |
Anti-electromagnetic radiation shielding layer | Anti-electromagnetic radiation shielding layer |

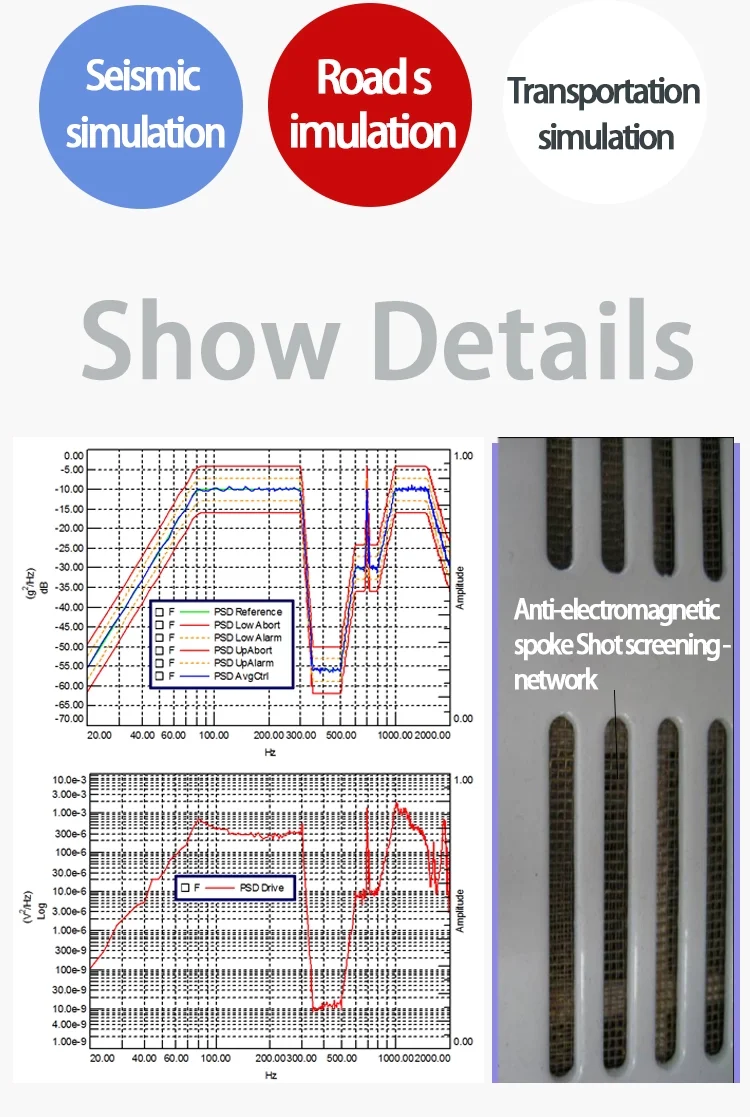

Random test dynamic range | Up to 42dB of random test dynamic range, up to the national standard A-level standard, to ensure low-frequency small information number test, strong anti-interference ability, waveform is not distorted. |

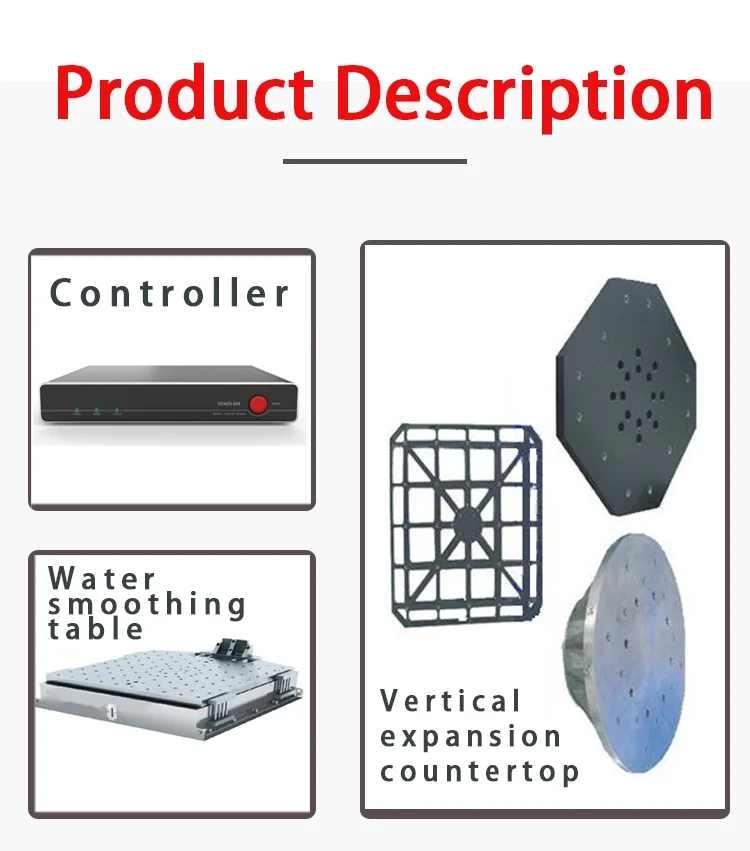

| Water smoothing table | The hydrostatic bearing is used to achieve high overturning moment and large load during the test of the cabinet. |
| DD | Power devices, moving coils, and excitation lines are all imported. |
| Sinusoidal thrust | 300kgf |
| Random thrust | 300kgf rms |
| Impact thrust | 600kgf |
| Frequency Range | 5~2800Hz |
| Continuous displacement | 25.4mm |
| Maximum speed | 1.8m/s |
| Switching power amplifier | |
| Amplifier output | 3.5kVA |
| Signal to noise ratio | >65dB |
| IF gain | ≥80 |
Total harmonic distortion (at rated output) | Less than 0.5% when DC (0.1Hz) to 500Hz; less than 1.0% when 500Hz to 5000Hz |
Power amplifier frequency response | DC (0.1Hz) to 4500Hz: ±3dB; |
Mean Time Between Failure (MTBF) | >35,000 hours |
| Vertical expansion countertop | |
| Table size | 600mm×600mm |
Upper limit ope rating frequency | Sine 2200Hz, random 3500Hz |
| Counter weight | 30kg |
| Countertop material | Aluminum alloy |
| Vibration controller | |
| operating system | Windows 7 |
| Operation interface | Chinese and English interface |
| Software function | Sine, random, classic shock, resonant search and resident |
Product pictures
Packaging & Shipping
Company Profile
Hongjing Inspection Instrument Co., Ltd. is a high-tech enterprise which specializes in producing, developing and simulating various kinds of environmental testing equipment, mechanical testing equipment, luggage testing equipment, electronic and electrical testing equipment, wire and cable testing equipment and large-scale non-standard testing equipment design and automatic control.
